Instruction Manual

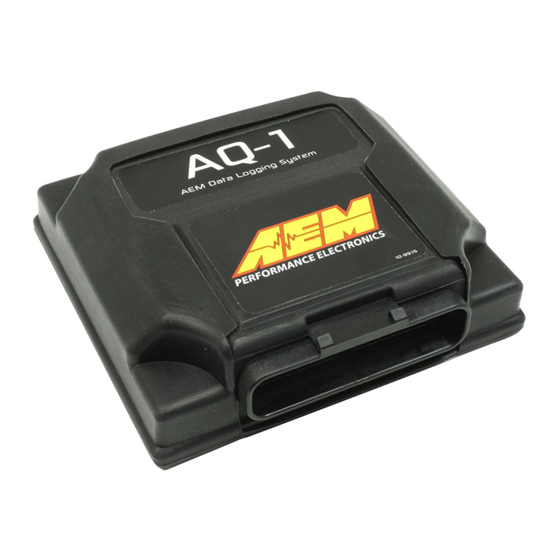

P/N 30-2500 AQ1 Data Logger

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 30-2500 and is the answer not in the manual?

Questions and answers

Related Manuals for AEM 30-2500

Summary of Contents for AEM 30-2500

  • Page 1 Instruction Manual P/N 30-2500 AQ1 Data Logger...

  • Page 2: Table Of Contents

    KIT CONTENTS 1 x 35-2500 AQ1 DATA LOGGER MODULE W/ 2GB SD CARD 1 x DUST COVER 4 x MOUNTING SCREW 4 x HEX NUT 1 x INSTRUCTION MANUAL 1 x USB CABLE INSTALLATION TIPS 1. Read through the entire manual and instructions before beginning the installation.
  • Page 3 (2A max) as well as the CAN data lines. Devices connected to the AEMnet transmit data through this one connection and most of these devices receive power from this same connection as well. The following AEM products are currently AEMnet enabled: Series 2 Engine Management System EMS-4 Universal Standalone Engine Management System...
  • Page 4 INPUT 5, INPUT 6, INPUT 7, and INPUT 8. Connection diagrams are shown below for some of the more common sensors/signals to be used with Inputs 1-4 and Inputs 5-8. See Figure 2. Figure 2. AEM Pressure Sensors(Left) AEM Temp Sensor (Right)
  • Page 5 Figure 3 below shows the connection for an engine speed signal using an AEM Twin Fire CDI. Figure 3. Engine RPM Signal From CDI Digital 1-3 are switched to ground digital inputs, 16.5 V MAX tolerance. Examples: Clutch/brake/cooling fan ground switch, nitrous solenoid ground or ground switch input to start/stop Logger (Ground activated input).
  • Page 6 EMS, the male DB9 connector plugs directly into the mating connector on the back of the AEM EMS. The pinout for a GPS connection is shown below in Figure 5. AEM recommends using one of the Garmin GPS models listed below.

  • Page 7: Using The Aq1 Data Logger

    INSTALLING THE SOFTWARE The latest version of the AQ1 Data Acquisition Software can be downloaded from the downloads section of the AEM Performance Electronics forum at www.aemelectronics.com/downloads. Download the AQ1 Data Logger software and run the installer. A copy of AEMdata analysis software is included with the AQ1 Data Logger software for viewing and analysis of log files.
  • Page 8 Figure 8. AQ-1 Dropdown Menu HELP PANE The help pane on the right side of the AQ1 Data Logger software provides a quick reference to detailed information about the options and functionality for each page in the software. See Figure 9 below. Figure 9.
  • Page 9 INPUT CHANNEL OVERVIEW The input channel overview page shows an overview of the input channels and is used for setting the logging condition, as well as naming log files. The Logging Condition determines when the AQ1 Data Logger starts logging. In the example below, the AQ1 Data Logger will start logging when digital input 1 is turned on (grounded).
  • Page 10 Figure 11. Analog 1 Configured for GM Style Water Temp Sensor Figure 12. Selecting a Sensor...
  • Page 11 ANALOG/FREQUENCY 5-8 INPUTS The analog/frequency 5-8 pages are similar to the Analog 1-4 pages. In addition to measuring voltage signals, Analog/Frequency channels 5-8 are also capable of measuring pulse based signals. Some examples of pulse based signals are engine rpm, MAF, vehicle speed, wheels speed, and driveshaft speed. The analog/frequency channels can also measure signals up to 16.5 volts.
  • Page 12 Figure 14. Digital 1 Page with Inverted Input BATTERY VOLTAGE The Battery Voltage page is shown below in Figure 15. The battery voltage is measured on the red switched ignition wire (SWIGN). See the section on “Power Connections” for wiring information. Figure 15.
  • Page 13 The sample rate is the rate at which the AQ1 Data Logger records the data. When logging the data stream from an AEM EMS, the input mode must be set to AEM EMS. The baud rate must be set to 19200. Figure 17 below shows the AQ1 Data Logger configured to log an AEM EMS.
  • Page 14 AEMnet The AEMnet page is used to select what parameters are logged from the AEMnet. Devices connected to the AEMnet are automatically detected and require no configuration. The AEMnet page is shown below in Figure 18. Figure 18. AEMnet Page LOG NOTES User notes can be entered in the Log Notes page.
  • Page 15 LOG FILES Log files are automatically stored on the SD card with an “.AQ1” file extension. Before viewing the data, the “.AQ1” files must be downloaded to your hard drive where they are saved as “.DAQ” files for viewing in AEMdata. The files will be automatically downloaded when you connect to your device with the AQ-1 software as shown in Figure 20.
  • Page 16 A user may configure the location where the log files are downloaded and saved to on the ‘Log Files’ page as shown in Figure 21. In addition, there is a command button to manually download logs from source folders other than the AQ-1; for example, an SD card mounted in an external card reader.
  • Page 17 FIRMWARE UPDATES Before doing any firmware updates, save a backup copy of any logger configuration files. Go to AQ1 > Update Firmware and the AQ-1 Bootloader pop-up window will appear. Click on the Open Firmware File button and follow the on-screen instructions to update the firmware.

  • Page 18: Connector Pinout

    AQ1 DATA LOGGER CONNECTOR PINOUT Description Wire Stamping Switched 12V SW IGN Switch to Ground Digital Input 1 (16V Max) SW 1 Switch to Ground Digital Input 2 (16V Max) SW 2 Switch to Ground Digital Input 3 (16V Max) SW 3 Ground/Sheild NOT APPLICABLE Permanent 12V...

  • Page 19: Specifications

    SPECIFICATIONS AQ1 Data Logger Supply Current 150 mA (nominal) Input Channels 4 x Analog 0-5V with optional pullup resistor 4 x Analog/Frequency 0-5V or 0-16.5V 3 x Switch to Ground Digital Data Stream 1 x AEMnet 1 x RS 232 Accelerometer Internal 3 axis +/- 4G Logging Rate...
  • Page 20 Brand AEM does not recommend any specific brand but it is always suggested to use a "name brand" card made by a reputable manufacturer. Cards by less than reputable manufacturers may not adhere to the SDA specification resulting in...

  • Page 21: Recommended Parts

    AEM’s option, when determined by AEM that the product failed due to defects in material or workmanship. This warranty is limited to the repair or replacement of the AEM part. In no event shall this warranty exceed the original purchase price of the AEM part nor shall AEM be responsible for special, incidental or consequential damages or cost incurred due to the failure of this product.

  • Page 22: Drill Template

    Due to variances in printers, the print size may need to be adjusted if the two vertical lines are not one inch apart. Figure 27. AQ1 Data Logger Mounting Drill Template. AEM CHIPS PERFORMANCE CHIPS...
