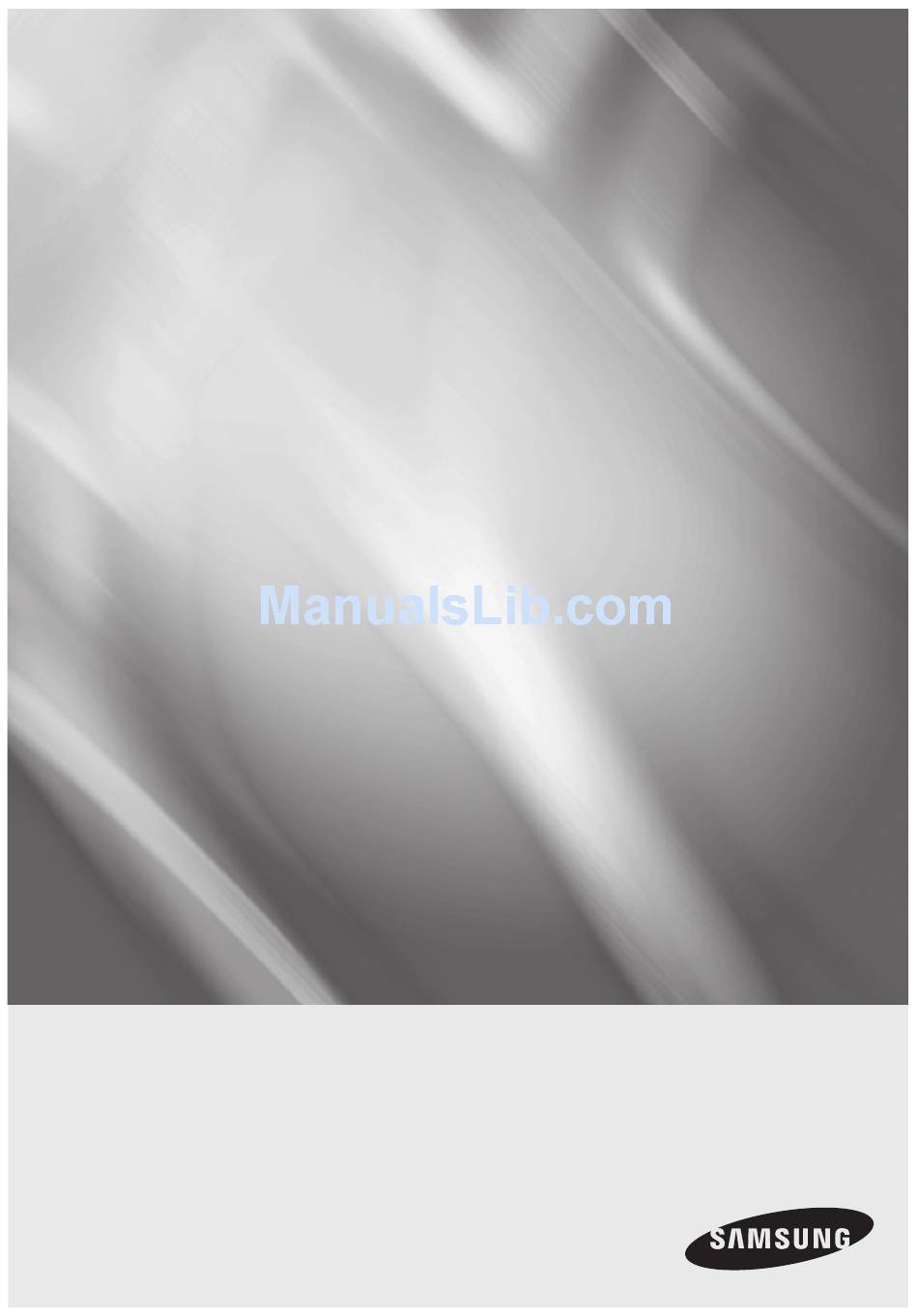

DVD Player imagine Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register AK68-01823D user manual the possibilities DVD-1080P9 DVD-1080PR... -
Page 2: Precautions
precautions 1. Setting up - Refer to the identification label located on the rear of your player for its proper operat- ing voltage. - Install your player in a cabinet with ade- quate ventilation holes. (7~10cm) Do not block ventilation holes on any of the compo- nents for air circulation. -
Page 3: Table Of Contents
before you start Accessories Check for the supplied accessories below. Batteries for Remote Control (AAA Size) Remote Control User’s Manual The accessories which do not suplied. • Scart Cable • Component Cable • Coaxial Cable Install Batteries in the Remote control 1. -
Page 4: Setup
576, 720, 1080 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING YOUR TV SET COMPATIBILITY WITH THIS MODEL 576p, 720p, 1080p DVD PLAYER, PLEASE CONTACT SAMSUNG'S CUSTOMER SERVICE CENTER.”... -
Page 5: Disc Type And Characteristics
Disc Type and Characteristics This DVD player is capable of playing the following types of discs with the corresponding logos: Disc Types (Logos) Recording Types Audio Video AUDIO-CD Audio Disc Markings Play Region Number PAL broadcast system in U.K, France, Germany, etc. -
Page 6: Description
setup Description Front Panel Controls DISC TRAY Place the disc here. OPEN/CLOSE ( ) Press to open and close the disc tray. DISPLAY Operation indicators are displayed here. PLAY/PAUSE ( ) Begin or pause disc play. SKIP ( ) / SEARCH Use to forward skip a scene or music. - Page 7 Rear Panel SCART JACK - Connect to a TV scart input jack AUDIO OUT JACKS - Connect to the Audio input jacks of your television or audio/video receiver. DIGITAL AUDIO JACKS - Use either an coaxial digital cable to connect to a compatible Dolby Digital receiver.
-
Page 8: Tour Of The Remote Control
HDMI Output resolution setup. This button when you use a DVD player. This button when you use a Samsung TV. The aspect ratio of a picture can easily be adjusted according to the screen size of your TV (16:9 or 4:3). -
Page 9: Connections
connections Choosing a Connection The following shows examples of connections commonly used to connect the DVD player with a TV and other components. Before Connecting the DVD Player - Always turn off the DVD player, TV, and other components before you connect or disconnect any cables. - Refer to the user’s manual of the additional components you are connecting for more information on those particular components. - Page 10 connections Connection to a TV (Interlace) - Connecting to your TV using Component video cables. - You will enjoy high quality and accurate color reproduction images. Component video separates the picture element into black and white(Y), blue(PB), red(PR) signals to present clear and clean images. (Audio signals are delivered through the audio output.) Using component video cables, connect the COMPONENT VIDEO OUT terminal on the rear of the...
- Page 11 Connection to a TV (Progressive) Using component video cables, connect the COMPONENT VIDEO OUT terminal on the rear of the DVD player to the COMPONENT IN terminal of TV. Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD player to the AUDIO (red and white) IN terminals of TV.
- Page 12 connections Connecting to a TV (SCART) Using scart cable, connect to SCART terminal on the rear of the DVD player to the SCART IN terminals of TV. Turn on the DVD player and TV. Press the input selector on your TV remote control until the Video signal from the DVD player appears on the TV screen.
- Page 13 - If you set the HDMI output resolution 720p,1080p or 1080i, HDMI output provides better picture quality. - If you connect an HDMI cable between Samsung TV and this DVD player, you can operate this DVD player using your TV remote control. This is only available with Samsung TVs that support Anynet+(HDMI-CEC).
-
Page 14: Connection To An Audio System (2 Channel Amplifier)
- The position of terminals can vary depending on the Amplifier. Please refer to the user's manual of the Amplifier. 14_ connections • Why does Samsung use HDMI? Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted to a TV is digital. - Page 15 Connection to an Audio System (Dolby Digital, MPEG2 or DTS Amplifier) If using a coaxial cable, connect the DIGITAL AUDIO OUT (COAXIAL) terminal on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) terminal of the Amplifier. Using the video signal cable(s), connect the VIDEO, COMPONENT or HDMI OUT terminals on the rear of the DVD player to the VIDEO, COMPONENT or DVI IN termi-...
-
Page 16: Basic Functions
basic functions Playing a Disc Before Play - Turn on your TV and set it to the correct Video Input by pressing TV/VIDEO button on the TV remote control. - If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input. -
Page 17: Using The Display Function
Skipping Tracks During play, press the SKIP (|k or K|) button. - When playing a DVD, if you press the SKIP (K|) button, it moves to the next chapter. If you press the SKIP (|k) button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter. -
Page 18: Using The Function Menu
basic functions Using the Function Menu Using the Function Menu (DVD) 1. Press the MENU button during playback. 2. Press the π/† buttons to select Function, then press the ® or ENTER button. - Info (See pages 17) - Zoom (See page 21) - Bookmark (See pages 20 to 21) - EZ View (See pages 19) - Angle (See pages 20) -
Page 19: Advanced Functions
advanced functions Adjusting the Aspect Ratio (EZ View) To play back using aspect ratio (DVD) Press the EZ VIEW button. - The screen size changes when the button is pressed repeatedly. - The screen zoom mode operates differently depending on the screen setting in the Display Setup menu. -
Page 20: Selecting The Subtitle Language
advanced functions Note - This function depends on audio languages are encoded on the disc and may not work. - A DVD disc can contain up to 8 audio languages. - To have the same audio language come up whenever you play a DVD; Refer to “Using the Audio Language”... -
Page 21: Using The Zoom Function
4. When you reach the scene you want to mark, press-the ENTER button. Up to three scenes may be marked at a time. Note - Depending on a disc, the Bookmark function may not work. Recalling a Marked Scene 1~3. The first 1~3 steps are the same as those for “Using the Bookmark Function”. -
Page 22: Folder Selection
advanced functions Folder Selection The folder can be selected both in Stop or Play mode. - To select the Parent Folder Press the RETURN button to go to parent folder, or press the π/† buttons to select “..” and press ENTER to go to the parent folder. -
Page 23: Mpeg4 Playback
MPEG4 Playback MPEG4 Play Function AVI files are used to contain the audio and video data. Only AVI format files with the “.avi” extensions can be played. 1. Open the disc tray. Place the disc on the tray. Close the tray. 2. -
Page 24: Playing Media Files Using The Usb Host
advanced functions Note • The resolution that can be supported by DVD- 1080P9 model up to 720 x 480 @30 frames/ 720 x 576 @25 frames • This unit supports CD-R/RW written in MPEG4 in accordance with the “ISO9660 format”. Playing Media Files Using the USB Host feature You can enjoy the media files such as pictures, movies and... -
Page 25: Cd Ripping
CD Ripping This feature lets you to copy audio files from disc to USB device into MP3 format. Stop Open the dics tray. Track 01 Track 01 Place the Audio CD(CD DA) disc on Track 02 Track 03 the tray, and close the tray. Track 04 Track 05 Track 06... -
Page 26: Picture Cd Playback For Hd-Jpeg
advanced functions Picture CD Playback for HD-JPEG Must connect to HDMI. Resolution should be 720p/1080i/ 1080p, and HD-JPEG should be in HD mode. "Please set the HDMI as highest Resolution which you TV support." 1. Select the desired folder. 2. Press the π/† buttons to select a Picture file in the clip menu and then press the ENTER button. -
Page 27: Changing Setup Menu
changing setup menu Using the Setup Menu The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, even adjust the player to the type of television screen you have. 1. -
Page 28: Setting Up The Audio Options
changing setup menu Using the Audio Language 1. With the unit in Stop mode, press the MENU button. 2. Press the π/† buttons to select Setup, then press the ® or ENTER button. 3. Press the π/† buttons to select Language Setup, then press the ®... -
Page 29: Setting Up The Display Options
❶ Digital Out - PCM : Converts to PCM(2CH) audio. - Bitstream : Outputs Dolby Digital via the digital output. Select Bitstream when connecting to a Dolby Digital Decoder. ❷ MPEG-2 Digital Out - PCM : Converts to PCM(2CH) audio. - Bitstream : Converts to MPEG-2 Digital Bitstream (5.1CH). -
Page 30: Setting Up The Bd Wise
- BD-Wise 30_ changing setup menu Setting Up the BD Wise When the player is connected to a SAMSUNG TV which supports “BD Wise”,you can enjoy optimized Picture Quality by setting the “BD Wise” function as “On”. 1. With the unit in Stop mode, press the MENU button. - Page 31 Method 2 1. With the unit in Stop mode, press the MENU button. 2. Press the π/† buttons to select Setup, then press the ® or ENTER button. 3. Press the π/† buttons to select Display Setup, then press the ® or ENTER button. 4.
-
Page 32: Setting Up The Parental Control
changing setup menu Setting Up the Parental Control The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc. Setting Up the Rating Level 1. -
Page 33: Setting Up The Anynet+(Hdmi-Cec)
Setting Up the Anynet+(HDMI-CEC) Anynet+ is a function that can be used to operate the unit using a Samsung TV remote control, by connecting the DVD 1080P9 to a SAMSUNG TV using a HDMI Cable. (see page 13 to 14) (This is only available with SAMSUNG TVs that support Anynet+. -
Page 34: Reference
Firmware upgrade Introduction Samsung will often support the software upgrade to improve the performance of this unit to the latest sta- tus, through Samsung Internet Site (www.samsung. com). Because the specially new mpeg4 codec continues and it is appearing. What improvements are made depends... -
Page 35: Troubleshooting
Troubleshooting Before requesting service (troubleshooting), please check the following. Problem • Check the batteries in the remote control. They may need replacing. • Operate the remote control at a distance of no more than 20 feat. No operation can be performed with the •... -
Page 36: Specifications
Output * Maximum Output Level Audio Output *Frequency Response Note - Samsung Electronics Co., Ltd reserves the right to change the specifi cations with out notice. - Weight and dimensions are approximate. 36_ reference Weight Dimensions CD : 12CM (COMPACT DISC) - Page 37 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Region Country CANADA North America MEXICO U.S.A ARGENTINE BRAZIL CHILE NICARAGUA HONDURAS COSTA RICA ECUADOR EL SALVADOR Latin America...
- Page 38 memo...
- Page 39 memo...
- Page 40 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
