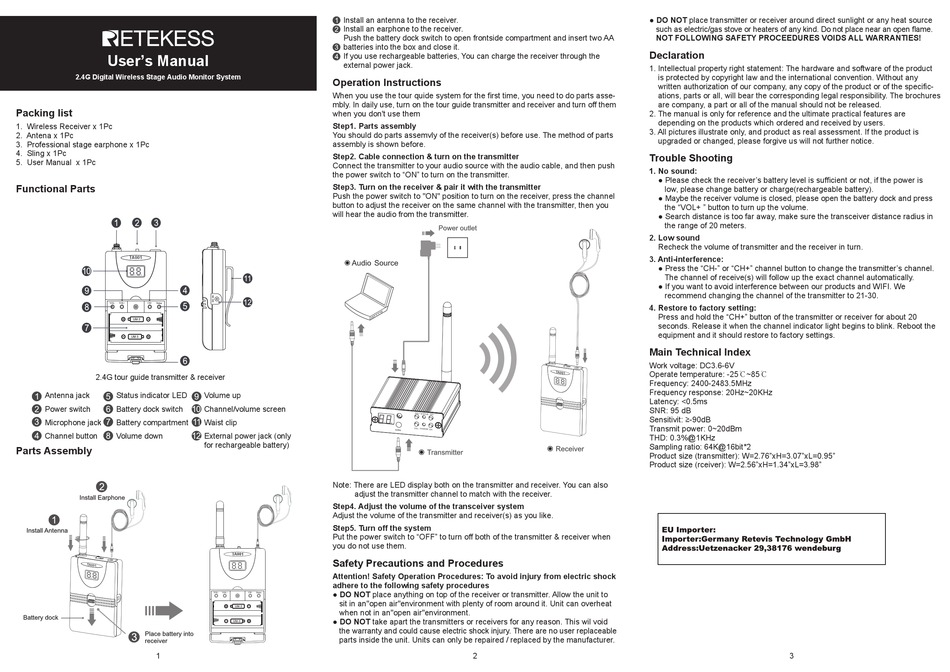

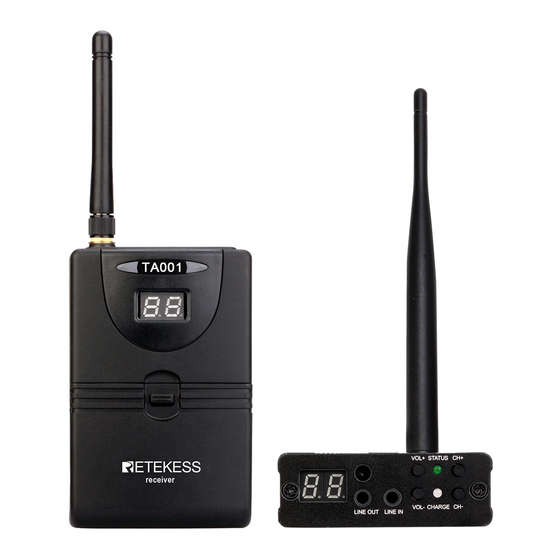

Retekess TA001 User Manual

User's Manual
2.4G Digital Wireless Stage Audio Monitor System

Packing list

1. Wireless Receiver x 1Pc
2. Antena x 1Pc
3. Professional stage earphone x 1Pc
4. Sling x 1Pc
5. User Manual x 1Pc

Functional Parts

TA001
2.4G tour guide transmitter & receiver
Antenna jack Status indicator LED
Power switch Battery dock switch
Microphone jack Battery compartment
Channel button Volume down

Parts Assembly

1
Install an antenna to the receiver.
Install an earphone to the receiver.
Push the battery dock switch to open frontside compartment and insert two AA
batteries into the box and close it.
If you use rechargeable batteries, You can charge the receiver through the
external power jack.

Operation Instructions

When you use the tour quide system for the first time, you need to do parts asse-
mbly. In daily use, turn on the tour guide transmitter and receiver and turn off them
when you don't use them
Step1. Parts assembly
You should do parts assemvly of the receiver(s) before use. The method of parts
assembly is shown before.
Step2. Cable connection & turn on the transmitter
Connect the transmitter to your audio source with the audio cable, and then push
the power switch to "ON" to turn on the transmitter.
Step3. Turn on the receiver & pair it with the transmitter
Push the power switch to "ON" position to turn on the receiver, press the channel
button to adjust the receiver on the same channel with the transmitter, then you
will hear the audio from the transmitter.
Volume up
Channel/volume screen
Waist clip
External power jack (only
for rechargeable battery)
Note: There are LED display both on the transmitter and receiver. You can also
adjust the transmitter channel to match with the receiver.
Step4. Adjust the volume of the transceiver system
Adjust the volume of the transmitter and receiver(s) as you like.
Step5. Turn off the system
Put the power switch to "OFF" to turn off both of the transmitter & receiver when
you do not use them.
TA001

Safety Precautions and Procedures

Attention! Safety Operation Procedures: To avoid injury from electric shock
adhere to the following safety procedures
● DO NOT place anything on top of the receiver or transmitter. Allow the unit to
sit in an"open air"environment with plenty of room around it. Unit can overheat
when not in an"open air"environment.
● DO NOT take apart the transmitters or receivers for any reason. This wil void
the warranty and could cause electric shock injury. There are no user replaceable
parts inside the unit. Units can only be repaired / replaced by the manufacturer.
● DO NOT place transmitter or receiver around direct sunlight or any heat source

Declaration

1. Intellectual property right statement: The hardware and software of the product
2. The manual is only for reference and the ultimate practical features are
3. All pictures illustrate only, and product as real assessment. If the product is

Trouble Shooting

1. No sound:
2. Low sound
3. Anti-interference:
4. Restore to factory setting:

Main Technical Index

Work voltage: DC3.6-6V
Operate temperature: -25℃~85℃
Frequency: 2400-2483.5MHz
Frequency response: 20Hz~20KHz
Latency: <0.5ms
SNR: 95 dB
Sensitivit: ≥-90dB
Transmit power: 0~20dBm
THD: 0.3%@1KHz
Sampling ratio: 64K@16bit*2
Product size (transmitter): W=2.76"xH=3.07"xL=0.95"
Product size (rceiver): W=2.56"xH=1.34"xL=3.98"
2
such as electric/gas stove or heaters of any kind. Do not place near an open flame.
NOT FOLLOWING SAFETY PROCEEDURES VOIDS ALL WARRANTIES!
is protected by copyright law and the international convention. Without any
written authorization of our company, any copy of the product or of the specific-
ations, parts or all, will bear the corresponding legal responsibility. The brochures
are company, a part or all of the manual should not be released.
depending on the products which ordered and received by users.
upgraded or changed, please forgive us will not further notice.
● Please check the receiver's battery level is sufficient or not, if the power is
low, please change battery or charge(rechargeable battery).
● Maybe the receiver volume is closed, please open the battery dock and press
the "VOL+ " button to turn up the volume.
● Search distance is too far away, make sure the transceiver distance radius in
the range of 20 meters.
Recheck the volume of transmitter and the receiver in turn.
● Press the "CH-" or "CH+" channel button to change the transmitter's channel.
The channel of receive(s) will follow up the exact channel automatically.
● If you want to avoid interference between our products and WIFI. We
recommend changing the channel of the transmitter to 21-30.
Press and hold the "CH+" button of the transmitter or receiver for about 20
seconds. Release it when the channel indicator light begins to blink. Reboot the
equipment and it should restore to factory settings.
3
