CAR MULTIMEDIA
Key Largo
NOTE: Please do not watch videos or use other Apps while the vehicle is in motion.
Doing so, is a safety violation. To watch videos or use Apps, please ensure that the vehicle is in
parked mode with handbrake activated.
Please check compatibility of the device with your mobile phone before purchase.
New phone software versions in the future may or may not be compatible with the device.
In-Warranty replacement will not be applicable for non compatibility of the mobile phone with
the device.
970
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blaupunkt Key Largo 970
Summary of Contents for Blaupunkt Key Largo 970

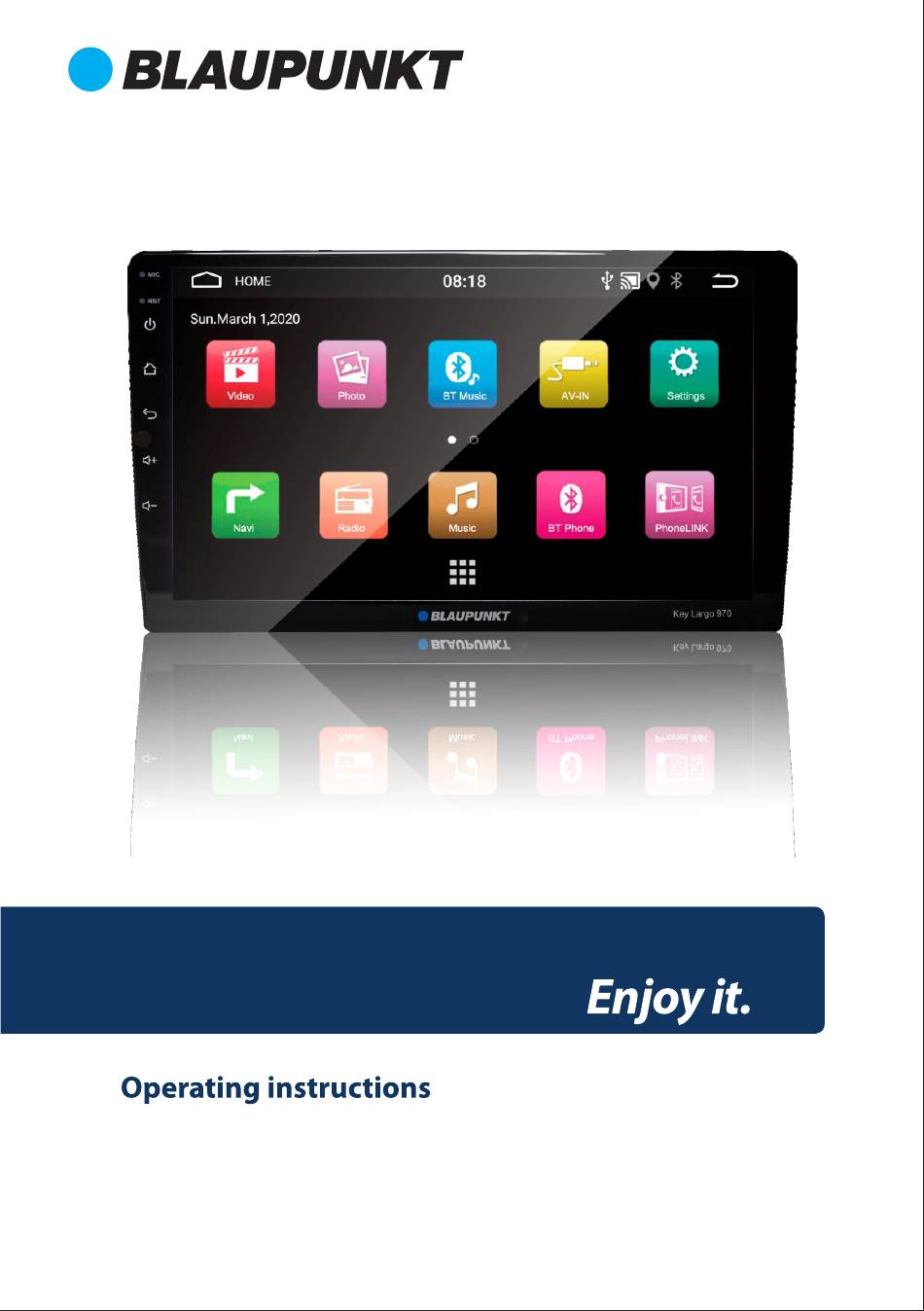

- Page 1 CAR MULTIMEDIA Key Largo NOTE: Please do not watch videos or use other Apps while the vehicle is in motion. Doing so, is a safety violation. To watch videos or use Apps, please ensure that the vehicle is in parked mode with handbrake activated. Please check compatibility of the device with your mobile phone before purchase.

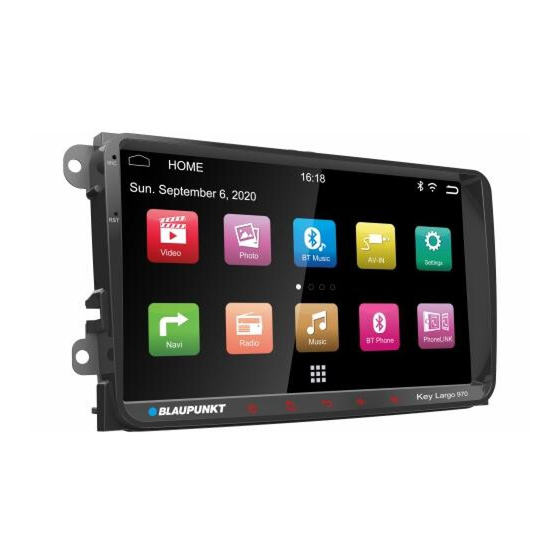

- Page 2 Panel Introduction Head unit features a brilliant capacitive display with a high-end tuner and runs on Android OS Version 9.0. 1. Internal microphone 2. Reset 3. In any state, press this button to power on/off the device / Long-press to mute audio output 4.
-
Page 3: Table Of Contents
Contents PhoneLink Contents Instructions on phoneLINK Iphone phoneLINK operation Safety notes Phone debugging Symbols used General Warning Road safety Instructions to read this User Manual File Manager Cleaning the unit Aux-In Disposal notes Warning Settings Wi-Fi Scope of delivery Bluetooth Placing the device in operation Display Switching on/off... -
Page 4: Safety Notes
Safety notes with the electrical system of the vehicle. For this Safety notes purpose, observe the connection diagram at the The car audio system is manufactured according to end of these instructions. For self-installation make recommended and established safety guidelines in a sure you have the right tools with you. -
Page 5: Instructions To Read This User Manual
Safety notes Scope of delivery You are advised to refrain from any activity which Ÿ The scope of delivery includes: could possibly divert your attention while driving. The best way to use these applications is when your Car audio system Ÿ... -
Page 6: Placing The Device In Operation
Placing the device in operation Placing the device in operation Switching on/off with the touch button To switch-on. Touch the button . Turn the unit on/off with ignition switch Turn the unit on: When the ignition switch is at ACC ON position, press the button [ ] on the panel to turn the unit on. -
Page 7: Radio Function
Radio Radio function Storing stations manually Select the desired Memory Bank with the FM/AM Ÿ button – FM1 / FM2 / FM3 / AM1 / Am2 Set the desired station. Ÿ Press one of the memory buttons for approx. 2 Ÿ... -
Page 8: Sound Settings
Radio | Sound Setting Sound Setting Equalizer settings: In the main menu or on the control bar of the current audio source. Press the (Equalizer) button. To manage the Equalizer settings Select 'EQ ' form the main menu . EQ Icon use the arrow keys to adjust your preference. -
Page 9: Navigation Function
Sound Setting | Navigation Function Navigation Function This device is equipped with navigation on board. Insert the mSD card (sold separately) into the map slot and type your destination. Follow turn-by-turn voice- guided commands to get to your destination hassle- free. -
Page 10: Favourites
Navigation Function In case of error In normal condition, the error of satellite signal reception is about 7 meters, while in several situations; some error may still occur after the auto-correcting of the software, at these moments, the driver should pay attention to the road condition and drive according to the actual road condition. -
Page 11: Phone Feature
Navigation Function | Phone Feature Phone Feature Dialing After the mobile is connected to the unit successfully, input a series of numbers via the numeric buttons on the screen, and then tap the icon [ ] to make a call. While dialing, if a wrong number was input, you may tap the icon [ ] to delete one by one, or long-press the... -
Page 12: View Call History
Phone Feature View Call History Bluetooth Music Function Tap the [ ] icon in Bluetooth interface to enter the call The Bluetooth music function allows user to directly history interface as shown below: stream music stored on their mobile devices to the radio. -
Page 13: Audio Playback From Usb
Play Music Audio playback from USB The principles of audio playback (MP3/WMA) from data carriers are identical for all sources. Select the desired source via the main menu. The device changes to the desired source and the playback starts. The music formats supported by this unit include MP3, M4A, WAV, AMR, WMA, OGG, AAC, MID etc. -
Page 14: Phonelink
PhoneLINK To activate PhoneLINK please follow detailed PhoneLINK instructions on the next page to turn on USB Instructions on PhoneLINK debugging. iPhone PhoneLINK operation The PhoneLINK feature mirrors the phone screen on the head unit. Please note PhoneLINK feature is Turn on the hotspot on the iPhone: Ÿ... -
Page 15: Phone Debugging
Please follow the below instructions to turn on debugging on your phone. Some steps may be different on different phones please also refer to your mobile phone instruction manual. 1. Go to Settings 2. About Phone 3. Build Number 5 & 6. You will now see Developer mode activated 4. -
Page 16: Swc
SWC | File Explorer | AUX-in SWC (Steering wheel control) File Manager The 'File Explorer' icon on the main interface allows you to browse the content of your les used on the device File Manager Steering wheel control allows you up to 8 functions depending upon the number of control buttons in the speci c vehicle the device is being installed that can be When you tap on the 'sd card' tab you get to see... -
Page 17: Settings
Settings Auto connect: Turn on for auto connect the last paired Settings bluetooth device Settings Paired Device: Tap X for delete paired device, tap delete all for unpair all device Search for Device: If the device didn’t listing on the available device, tap on the icon for search device. -
Page 18: Navigation
Settings Parking: Turn on to allow user to watch videos while Navigation vehicle is in parked condition. Beep: Turn on for get beep voice inform at operating Picture in Picture: Turn on for video window display on the other interface Reverse Camera Mirror: Mirror the reverse video BT Microphone: Select internal/external microphone Assistive Touch: Turn on assistive touch point... -
Page 19: Useful Information
SMS, please Click on it Step 3. Complete a simple form to register your product & activate e-warranty. E-user manual is available at www.blaupunkt.com and upon completion of registration. Should you require further assistance, please call: Customer Support 1800 209 6820 OR Email us: info@blaupunktcar.in... -
Page 20: Usb Support Files
SWC1 VIDEO OUT2 USB1_D+ PARKING LINE OUT FL SWC_GND USB1_D- SWC2 LINE OUT FR 10 CAN TXD CAN RXD GPS ANT WiFi/BT ANT Blaupunkt India Private Limited 47, Atlanta Society, Nariman Point, Mumbai‐ 400 021. Maharashtra. India. info@blaupunktcar.in | www.blaupunktcar.in...
