SERVICE MANUAL
Series 1 and 2

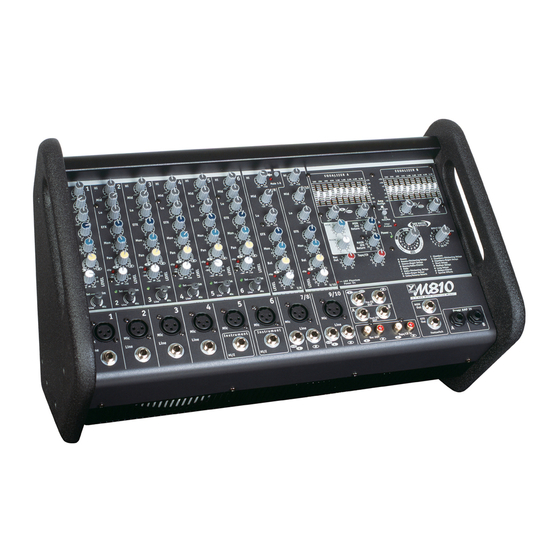

M810/M1610
MODEL TYPE: YS1032 (M1610)
MODEL TYPE: YS1033 (M810)
SMT Disclaimer
Due to the complex nature of the use of SMT installed components
in Yorkville equipment, we highly caution all service technicians in
attempting to repair or replace SMT factory installed components.
Many of these components may be glued prior to initial soldering.
Replacing SMT components requires expensive
specialized de-soldering equipment and training.
Yorkville Sound will repair and replace defective SMT components
to ensure proper quality assurance and installation is maintained.
Advertisement
Related Manuals for YORKVILLE 1 Series
Summary of Contents for YORKVILLE 1 Series
- Page 1 SMT Disclaimer Due to the complex nature of the use of SMT installed components in Yorkville equipment, we highly caution all service technicians in attempting to repair or replace SMT factory installed components. Many of these components may be glued prior to initial soldering.
-
Page 2: Important Safety Instructions
IM PORTAN T S A F E TY I NS TRU C TI ONS This lightning flash with arrowhead symbol, within The exclamation point within an equilatereal triangle is intended to alert the an equilateral triangle, is intended to alert the user to the presence of user to the presence of important operating and maintenance (servicing) uninsulated “dangerous voltage”... - Page 3 E Q U A L I Z E R B E Q U A L I Z E R A Mute 1-8 630 1.0K 1.6K 2.5K 4.0K 6.3K 630 1.0K 1.6K 2.5K 4.0K 6.3K 9/10 Assign Left /Right Main/Mon Clip/ Return Protect Modify Effect...
-
Page 4: Speaker Output
2 x 4 0 0 W a t t P o w e r e d M i x e r 1+/1– Configuration (2 ohm min.) (2 ohm min.) Circuit POWER Breaker DESIGNED & MANUFACTURED BY YORKVILLE SOUND • TORONTO, CANADA... - Page 5 E Q U A L I Z E R B E Q U A L I Z E R A Mute 1-8 630 1.0K 1.6K 2.5K 4.0K 6.3K 630 1.0K 1.6K 2.5K 4.0K 6.3K 9/10 Assign Left /Right Main/Mon Clip/ Return Protect Power...
- Page 6 THIS UNIT MUST BE GROUNDED! Circuit POWER CET APPAREIL DOIT ETRE MIS Á TERRE! Breaker DESIGNED & MANUFACTURED BY YORKVILLE SOUND • TORONTO, CANADA DISCONNECT POWER BEFORE SERVICING! DEBRANCHER L’APPEREIL 0 0 0 0 0 0 0 AVANT D’ENLEVER LES COUVERCLES!
- Page 7 M810-2 SPECIFICATIONS Number of Channels Low, Mid, High Mono Channel EQ Stereo Channel EQ Low, Mid, High All Channels Channel Effects Monitors Effects Balance Controls Ch. 7 - 10 Ch. 1 - 6 Pan Controls Channel Overload Protection Ch. 1 - 6 Inputs - XLR (bal) Inputs - 1/4-inch Inputs - RCA (unbal)
- Page 8 M810 SPÉCIFICATIONS Nombre de canal Égalsisateur -canaux monophoniques Graves,Méedianes,Aiguës Graves,Méedianes,Aiguës Égalsisateur -canaux stéréophoniques Effets sur canal Tous les canaux Effets pour les retours Canaux 7 - 10 Contrôle de balance Canaux 1 - 6 Contrôle panoramique Canaux 1 - 6 Protection de surcharge pour canal Entrées XLR (symétriques) Entrées - 1/4-pouce...
- Page 9 M1610 SPECIFICATIONS Number of Channels Low, Mid, High Mono Channel EQ Stereo Channel EQ Low, Mid, High Channel Effects All Channels Monitors Effects Ch. 7 - 10 Balance Controls Ch. 1 - 6 Pan Controls Ch. 1 - 6 Channel Overload Protection Inputs - XLR (bal) Inputs - 1/4-inch 1 Pair...
- Page 10 M1610 SPECIFICATIONS Nombre de canal Égalsisateur -canaux monophoniques Graves,Méedianes,Aiguës Graves,Méedianes,Aiguës Égalsisateur -canaux stéréophoniques Effets sur canal Tous les canaux Effets pour les retours Contrôle de balance Canaux 7 - 10 Contrôle panoramique Canaux 1 - 6 Canaux 1 - 6 Protection de surcharge pour canal Entrées XLR (symétriques) Entrées - 1/4-pouce...
- Page 11 M810 / M1610 Block Diagram for REC-L REC-R M O N D E S I G N E D & M A N U F A C T U R E D B Y Y O R K V I L L E S O U N D Rec In REC Input Efx Send...
- Page 12 Block Diagram for M810-2 / M1610-2 REC-L REC-R M O N D E S I G N E D & M A N U F A C T U R E D B Y Y O R K V I L L E S O U N D Rec In REC Input Efx Send...
- Page 13 M1189 07 PG1 Parts Reference List 10/30/2020 YS # Description YS # Description YS # Description YS # Description YS # Description AI-ASS M1189-59 M1610 MIXER BOARD C16A 5282 _10U 16V 20%CAP T&R 5X7MM .2NP 7748 _47P 100V 5%CAP 0805 SMT NPO C104E 7610 _33N 50V 5%CAP...
- Page 14 M1189 07 PG2 Parts Reference List 10/30/2020 YS # Description YS # Description YS # Description YS # Description YS # Description R23A R38F 4434 _10K B LIN 9MM DETENT 7805 MMBT3906LT1 PNP SOT-23 SMT T&R 7624 W100 100R 0805 SMT RES 7861 W125 10K 0805 SMT RES...
- Page 15 M1189 07 PG3 Parts Reference List 10/30/2020 YS # Description YS # Description YS # Description YS # Description YS # Description R52B R77H R122 R183L R216C 7861 W125 10K 0805 SMT RES 7861 W125 10K 0805 SMT RES 7861 W125 10K 0805 SMT RES 7822...
- Page 16 M1189 07 PG4 Parts Reference List 10/30/2020 YS # Description YS # Description YS # Description YS # Description YS # Description R275 7635 W100 221R 0805 SMT RES R276 7681 W125 8K25 1% 0805 SMT RES R277 7688 W125 4M7 5% 0805 SMT RES R278 7630...
- Page 17 M1194 PG1 Parts Reference List 6/29/2018 YS # Description YS # Description YS # Description YS # Description YS # Description 6451 __4N7 250V 20%CAP BLK 'Y' 10MM AC 5212 100N 63V 5%CAP T&R RAD .2FLM D46B 6825 1N4148 75V 0A45 DIODE T&R 5108 2N5401...
- Page 18 M1194 PG2 Parts Reference List 6/29/2018 YS # Description YS # Description YS # Description YS # Description YS # Description R62B 2030 W167 681R 1%FLAME PROOF T&R RES R115 2006 1W00 1R 5%FLAME PROOF T&R RES R63A 2030 W167 681R 1%FLAME PROOF T&R RES R118A 2019...
- Page 19 W2:C 7 1/8W 0805 W2:D 7 1/8W 0805 W2:B 1/8W W2:G CLIP 0805 10K0 10K0 10K0 10K0 LOUT 0805 0805 0805 0805 ROUT 1/8W W2:F 0805 W3:G 8 W3:D 20K5 20K5 W3:F 8 POT0 0805 0805 FV-1 POT1 W3:C 7912 W3:E 8 POT2 W3:B...
- Page 20 BeakMute CTRL CTRL CLIPREFM BreakMute.SCHDOC ECO.SCHDOC -15V +15V History 7669 History.SchDoc M1610 / M810 1032 Product(s): -15V +15V U43E Description: Powered Mixer 0805 100N PCB#: M1188 Rev#: EML Rev#: Sheet C111 C110 www.yorkville.com 12/14/2016 TopSheet.SchDoc V031 Modified: File: Tmp Rev:...
- Page 21 Only one Mono Channel is shown. Channels 1 to 4 employ the same circuit using A,B,C and D designator suffixes. MMBT3906LT1 MMBT3906LT1 CLIPREFM 7805 SOT23 W125 PHPA W125 W125 SOT23 7805 0805 0805 0805 0603 R125 220K R212 R213 R214 R215 0805 0805...
- Page 22 Only one Mono Channel with high impedance 1/4" input is shown. Channels 5 and 6 employ the same circuit using E and F designator suffixes. MMBT3906LT1 MMBT3906LT1 CLIPREFM 7805 SOT23 W125 PHPA W125 W125 SOT23 7805 0805 0805 0805 0603 R125 220K R212...
- Page 23 Only one stereo channel is shown. Channels 7&8 and 9&10 employ P10A P12B W100 W100 W100 the same circuit using G and H 100R 4K75 4K75 4439 0603 0805 0805 5X7MM .2in 100U designator suffixes. 8X7MM .2in 4431 W100 Gain W125 18K2 CLIPREFM...
- Page 24 +15V R263 R264 221R 221R 0805 0805 3440 4PDT MINI R265 LEFT1 LEFT ALTERNATE 221R 221R +15V 0805 0805 0805 DOWN BreakMute MMBT3904 7838 SOT-23 W125 0805 0805 CLIPREFM 3440 N107 MMBT3904 4PDT MINI SOT-23 RIGHT1 RIGHT ALTERNATE 7838 W125 DOWN MSNE-12-01 0805...
- Page 25 C107 100V P23B AmpInL AmpInR 0805 R122 P21B RecordOut R120 W125 4437 R148 R167 W250 3966 0805 W125 W125 619R0 TL074 4441 1206 16AWG 8249 R123 0805 0805 LEFT RCA DUAL RAD .2in RecOut W125 VERT 100V AmpInL 3466 AmpInR VERT RecIn 0805...
- Page 26 W100 0805 RAD .2in +3V3 W100 _1K0 0805 CLIP RAD .2in +3V3 0805 W100 LOUT RAD .2in CLIP LOUT 28 0805 10K0 10K0 10K0 10K0 R113 ROUT 27 0805 0805 0805 0805 0805 W100 ROUT RAD .2in FXGND 0805 R114 R115 BIT0 20K5...
- Page 27 C116 C117 Treble P35A 0805 0805 MC33079D 7668 R277 4435 R276 W125 8K25 0805 SO14 +15V 0805 TL072 R278 7669 R279 182K 0805 0805 CDSF4148 D1005 C118 0805 -15V 100N C119 P35B P36B 0805 100N R280 R281 W100 W100 4K75 4K75 P36A 0805...
- Page 28 C130 C131 P37A Treble 0805 0805 R292 4435 R290 W125 8K25 0805 0805 TL072 R288 7669 R289 0805 0805 P37B P38B C128 C129 0805 100N 0805 100N R293 R291 W100 W100 4K75 4K75 P38A Bass 0805 0805 4435 Tone - Right Section: M1610 / M810 Product(s):...
- Page 29 Only one EQ Channel is shown. Left and Right employ the same circuit using L and R R188 designator suffixes. W100 15K0 R184 R187 0805 W100 W100 150R 15K0 0805 0805 0805 100V 1B LIN 1B LIN 1B LIN 1B LIN 1B LIN 1B LIN 1B LIN...
- Page 30 +48V R221 W100 4K99 0805 R220 W100 4K99 0805 R219 W100 4K99 0805 R218 W100 4K99 0805 0805 ChPhP W100 4K99 0805 5X7MM .2in Only one circuit is shown. Each pair of Channels shares one of this circuit. A_ parts for Ch A&B, Phantom Pwr Filter Section: C_ parts for Ch C&D ect.
- Page 31 DESIGN HISTORY AND INFORMATION CHANGE HISTORY POTENTIOMETERS AND KNOBS POTENTIOMETERS/SWITCHES AND KNOBS FUNCTION POT/SW YS# STYLE KNOB# DATE VER# DESCRIPTION OF CHANGE P25-34 L&R Graphic EQ 3998 DD-MMM-YYYY P1A,1B,1C,1D,1E,1F Trim 4443 9915 P9G,9H (Monitor sends on stereo channels) 4443 9917 P5A,5B,5C,5D,5E,5F Level 4432...
- Page 32 Bias Bias BeakMute CTRL CTRL CLIPREFM BreakMute.SCHDOC ECO.SCHDOC -15V +15V History 7669 History.SchDoc M1610-2/M810-2 1032 Product(s): -15V +15V U43E Description: Powered Mixer 0805 100N PCB#: M1188 Rev#: EML Rev#: Sheet C111 C110 www.yorkville.com 12/15/2016 TopSheet.SchDoc V031 Modified: File: Tmp Rev:...
- Page 33 Only one Mono Channel is shown. Only one Mono Channel is shown. Channels 1 to 4 employ the Channels 1 to 4 employ the same circuit using A,B,C and D same circuit using A,B,C and D designator suffixes. designator suffixes. MMBT3906LT1 MMBT3906LT1 CLIPREFM...
- Page 34 Only one Mono Channel with Only one Mono Channel with high impedance 1/4" input is shown. high impedance 1/4" input is shown. Channels 5 and 6 employ the Channels 5 and 6 employ the same circuit using E and F same circuit using E and F designator suffixes.
- Page 35 Only one stereo channel is shown. Only one stereo channel is shown. Channels 7&8 and 9&10 employ Channels 7&8 and 9&10 employ P10A P12B W100 W100 W100 the same circuit using G and H the same circuit using G and H 100R 4K75 4K75...
- Page 36 +15V R263 R264 221R 221R 0805 0805 3440 4PDT MINI R265 LEFT1 LEFT ALTERNATE 221R 221R +15V 0805 0805 0805 DOWN BreakMute MMBT3904 7838 SOT-23 W125 0805 0805 CLIPREFM 3440 N107 MMBT3904 4PDT MINI SOT-23 RIGHT1 RIGHT ALTERNATE 7838 W125 DOWN MSNE-12-01 0805...
- Page 37 C107 100V P23B AmpInL AmpInR 0805 R122 P21B RecordOut R120 W125 4437 R148 R167 W250 3966 0805 W125 W125 619R0 TL074 4441 1206 16AWG 8249 R123 0805 0805 LEFT RCA DUAL RAD .2in RecOut W125 VERT 100V AmpInL 3466 AmpInR VERT RecIn 0805...
- Page 38 W100 0805 RAD .2in +3V3 W100 _1K0 0805 CLIP RAD .2in +3V3 0805 W100 LOUT CLIP 5 RAD .2in LOUT 28 0805 10K0 10K0 10K0 10K0 R113 ROUT 27 0805 0805 0805 0805 0805 W100 ROUT RAD .2in FXGND 0805 R114 R115 BIT0...
- Page 39 C116 C117 Treble P35A 0805 0805 MC33079D 7668 R277 4435 R276 W125 8K25 0805 SO14 +15V 0805 TL072 R278 7669 R279 182K 0805 0805 CDSF4148 D1005 C118 0805 -15V 100N C119 P35B P36B 0805 100N R280 R281 W100 W100 4K75 4K75 P36A 0805...
- Page 40 C130 C131 P37A Treble 0805 0805 R292 4435 R290 W125 8K25 0805 0805 TL072 R288 7669 R289 0805 0805 P37B P38B C128 C129 0805 100N 0805 100N R293 R291 W100 W100 4K75 4K75 P38A Bass 0805 0805 4435 Tone - Right Section: M1610-2/M810-2 Product(s):...
- Page 41 Only one EQ Channel is shown. Only one EQ Channel is shown. Left and Right employ the Left and Right employ the same circuit using L and R same circuit using L and R R188 designator suffixes. designator suffixes. W100 15K0 R184 R187...
- Page 42 +48V R221 W100 4K99 0805 R220 W100 4K99 0805 R219 W100 4K99 0805 R218 W100 4K99 0805 0805 ChPhP W100 4K99 0805 5X7MM .2in 5X7MM .2in Only one circuit is shown. Only one circuit is shown. Each pair of Channels Each pair of Channels shares one of this circuit.
- Page 43 DESIGN HISTORY AND INFORMATION CHANGE HISTORY POTENTIOMETERS AND KNOBS POTENTIOMETERS/SWITCHES AND KNOBS FUNCTION POT/SW YS# STYLE KNOB# DATE VER# DESCRIPTION OF CHANGE P25-34 L&R P25-34 L&R Graphic EQ Graphic EQ 3998 3998 15-DEC-2016 Release for Production P1A,1B,1C,1D,1E,1F P1A,1B,1C,1D,1E,1F Trim Trim 4443 4443 9915...
- Page 44 17900 (mil) Score 50mil Fiducial 50mil Fiducial TJH1 TJH4 3440 3998 3998 3998 3998 3998 3998 3998 3998 3998 3998 3998 3998 3998 3998 3998 3998 3998 3998 P25L P26L P27L P28L P29L P30L P31L P32L P34L P25R P26R P27R P28R P29R P30R...
- Page 45 R28A 5906 R23A D10A 4148 R13A R27A 220K 221R 7805 R15A 470R 140K0 D12A R17A R125A R39A R45A C153A 10K0 R34A C152A 4K99 4148 82K5 R16A R50A 100N 100N 220P R54A 681R 10K0 100R 681R R12A R11A 100R R26A 140K0 27K4 R56A R14A...
- Page 46 R56D 10K 10K 220P R53D R49D R51D R52D 4K99 R17D R28E R23E D10E 4148 R13E R27E 220K 221R 7805 R15E 470R 140K0 R17E D12E R125E R39E R45E C153E 10K0 R34E C152E 4148 4K99 82K5 R16E R50E 100N 100N 220P R54E 10K0 100R 681R...
- Page 47 R220H R223H 100N 100N R92H R219H R60H C85H C40H C86H R218H R222H R86H 4148 R120 619R0 R272 100R R199L C61L 7K50 7805 470N R171L R281 750R R169L 4K75 R119 619R0 C63L 100R R200L R173L 7K50 R174L 7805 C63L 330N 681R R172L 619R0 100R...
- Page 48 PCB ASSEMBLY DOCUMENTATION SPECIAL PRODUCTION NOTES PCB HARDWARE SCREWS AND BOLTS NUTS STANDOFFS MISCELLANEOUS 1. Wave solder jig MUST be used at all times for proper component alignment. Assembly Documentation Section: M1610-2/M810-2 Product(s): THIS SHEET CONTAINS SPECIAL PRODUCTION NOTES AND A LIST OF PCB HARDWARE PARTS REQUIRED FOR THE BUILD. PCB#: M1188 Rev#:...
- Page 49 DESIGN HISTORY AND INFORMATION CHANGE HISTORY POTENTIOMETERS AND KNOBS POTENTIOMETERS/SWITCHES AND KNOBS FUNCTION POT/SW YS# STYLE KNOB# DATE VER# DESCRIPTION OF CHANGE P25-34 L&R Graphic EQ 3998 15-DEC-2016 Release for Production P1A,1B,1C,1D,1E,1F Trim 4443 9915 P9G,9H (Monitor sends on stereo channels) 4443 9917 P5A,5B,5C,5D,5E,5F...
- Page 50 C107 LVGND LINE_IN LINE_IN 100V LVGND R122 Gold Gold Record Out 1/4W R120 MINI MINI 4437 1/4W MINI Gold Gold 1/4W 1/4W 620R Chassis Gnd P21:B P23:B PCB MT REC Output MINI -15V R148 R167 4441 TLO74CN Record In {Details} PCB MT REC Input R123...
- Page 51 M1189 POTLIST M1610 MODEL(S):- FUNCTION PART# KNOB POT STYLE P25-34 L&R Graphic EQ 3998 Only Channel 1 is shown. P1A,1B,1C,1D,1E,1F Trim 4443 9915 P9G,9H (Monitor sends on stereo channels) 4443 9917 P5A,5B,5C,5D,5E,5F Level 4432 9920 Channels 1 - 4 employ the P15G,15H,6A,6B,6C,6D,6E,6F 4433 9918...
- Page 52 Only Channel 5 is shown. Channels 5 & 6 employ the same circuit. LVGND BC560C BC560C CLIPREFM MINI MINI R28E 1/4W 1/4W 1/4W 5102 5102 R39E R23E MINI TO92 TO92 R27E 220K R125E LD1E C12E MINI 220R MINI 5908 R34E LVGND Clip 470R...
- Page 53 Only channels 7&8 are shown. Channels 9&10 employ the same circuit. Gain R63G R67G R69G R73G R79G C30G R85G R99G 1/4W 1/8W 1/4W 1/4W 1/8W NETG00000 1/4W 1/4W 3K74 249R 562R 4K99 100R P10G:A P12G:B FLMP MINI 100U MINI MINI 4431 4439 C33G...
- Page 54 +15V MINI LEFT1 LEFT 220R MINI DOWN UP BC550C S2:B +15V 3440 Break Mute 1/4W 5101 CLIPREFM MINI TO92 BC550C MINI RIGHT1 RIGHT 5101 1/4W DOWN UP TO92 S2:C MINI -15V MINI 3440 Break Mute U2:B 4148 TL072CP 4148 LVGND EFF1 4148 +15V...
- Page 55 Treble C116 C117 200V 200V P35:A 4435 MC33079P MAIN/L_EQ_IN R277 R276 1/4W MINI MAIN/L_TONE_IN U7:B +15V MINI MINI 180K TL072CP 100N R278 R279 4148 U1:C 100V U1:B LVGND C121 -15V 100N 100V C118 C119 100V 100N 100V 100N 4435 P36:A R280 R281 1/4W...
- Page 56 Treble C130 C131 200V 200V P37:A 4435 MON/R_EQ_IN MON/R_TONE_IN R292 R290 1/4W MINI +15V MINI MINI TL072CP R288 R289 U1:A LVGND -15V C128 C129 100V 100N 100V 100N 4435 P38:A R293 R291 1/4W 1/4W Bass MINI MINI Product M1610 / M810 TONE2 PCB# M1189...
- Page 57 MINI 1/4W R188L MINI MINI 150R C79L 1/4W 1/4W 100V R184L R187L C76L 1B LIN 1B LIN 1B LIN 1B LIN 1B LIN 1B LIN 1B LIN 1B LIN 1B LIN 100V 3998 3998 3998 3998 3998 3998 3998 3998 3998 P25L M P26L M...
- Page 58 Pcb Mech M1189 V6.00 Wave Solder ------------------------------------> Top Assy M1189 V6.00 Q10L Q11L Q12L Q13L R171R Q10R Q11R Q12R Q13R BC550C M1189 4148 4148 YS Type - 1032 M1610 / M810 R169L R172L R175L R178L R181L R186L R192L R195L R198L R169R R172R R175R...
- Page 59 SEE LAYOUT DIAGRAM M1189 PRODUCTION NOTES 1. PCBSA: BREAK OUT BOARD BEFORE TESTING. M1189 POTLIST M1610 MODEL(S):- FUNCTION PART# KNOB POT STYLE P25-34 L&R Graphic EQ 3998 2N5401 P1A,1B,1C,1D,1E,1F Trim 4443 9915 2N5551 P9G,9H (Monitor sends on stereo channels) 4443 9917 "STYLE_P23"...
- Page 60 SEE PRODUCTION NOTES M1189 PENDING CHANGES M1189 HISTORY MODEL(S):- MODEL(S):- M1610 M1610 DATE VER# DESCRIPTION OF CHANGE PENDING CHANGE 31 Dec, 2003 v1.00p3Moved D3 anode to cathode of LD1 2 Feb, 2004 1.00 Change break mute flash rate 17 Feb, 2004 1.01 Move C7a-f, R13a-f to make room for AA series xlr.
- Page 61 M1189 V6.00 YS Type - 1032...
- Page 62 Wave Solder ------------------------------------> ETCH ETCH Top Assy M1189v5.00 GUIDE GUIDE M1189 M1610 YS Type - 1032 v5.00 Break Mute 3440 P14H 4434 4434 4434 4434 4434 4434 4438 4438 P14G P13G P13H 4434 4434 4434 4434 4434 4434 4438 4438 4435 4435 4435...
- Page 63 MINI 4K99 1/4W AMPA_SIGNAL R23A W1:F 12 +15V MINI ACLIP 1/4W 1/4W R12A R11A W1:E 12 -15V FLMP 100R0 C25A 1/8W TO92 100N R10A W1:D 12 MINI -15V R18A 5102 1/4W +15V +118V 1/4W R15A 100P 100V Q22A FLMP W1:C 12 LM13600N +48V 100R0...
- Page 64 SPKR 1/4in JCK SLEEVE +118V J3A:A Euro Output 10K0 R120A 1.0W 1/8W SPEAKON 4C R70A 100R0 3628 +15V FLMP BAV21 100N 100N IRL2910 IRL2910 R66A D50A R69A 3924 Q15A Q24A C59A C57A 1.0W 1/8W 6966 6966 10K0 100R0 100N 100N FLMP TO220 TO220...
- Page 65 SPKR 1/4in JCK SLEEVE +118V 3924 10K0 R120B 1.0W 1/8W J3B:A R70B 100R0 Euro Output BAV21 FLMP SPEAKON 4C 3628 IRL2910 IRL2910 R66B D50B R69B Q15B Q24B 1.0W 1/8W 6966 6966 10K0 100R0 1N5246B TO220 TO220 FLMP +15V SPKR D29B D19B Hi Tier + Hi Tier +...
-
Page 66: Description Of Change
DATE VER# DESCRIPTION OF CHANGE M1190.PCB_DATABASE_HISTORY R79A&B #6127 470K->#6127 220K MODEL(S):- ADDED D4 #5124 5V1/5W, R97&R98 #2006 1R/1W->#5124 M1610 Corrected the position of some test nodes. DATE VER# DESCRIPTION OF CHANGE Fixed BlankSize field 7 Jan, 2004 1.00 Rationalize wire refdes Jun-15-2006 7.00 AH, PC#7021, SPACE BETWEEN R96 AND R53... - Page 67 R124 Q31B D56B 16AWG W26B_ R101A Q31A C43A C44A 100K Q30B 4700U 5896 W28B_ M1190 Q30A 8200U W24A_ W26A_ Yorkville 4007 16AWG 8200U M1610-2 2015 16AWG 5898 5898 W24B_ 8200U 5896 8200U 6419 W14B_ M1190 W14A_ Dummy 4700U W4 GRY...
- Page 68 SEE LAYOUT DIAGRAM M1190 PRODUCTION NOTES 1. PCBSA: Apply thermal grease evenly between the large inner and outter heatsinks. 2. PCBSA: Use three 8829 screws to align and attach the large heatsinks to the board. 3. PCBSA: When assembling heatsinks to Q20A, Q20B, Q21A, Q21B and Q37, ensure heatsinks are straight and sitting flat against board.
- Page 69 SEE PPRODUCTION NOTES DATE VER# DESCRIPTION OF CHANGE M1190.PCB_DATABASE_HISTORY R79A&B #6127 470K->#6127 220K MODEL(S):- ADDED D4 #5124 5V1/5W, R97&R98 #2006 1R/1W->#5124 M1610 Corrected the position of some test nodes. DATE VER# DESCRIPTION OF CHANGE Fixed BlankSize field 7 Jan, 2004 1.00 Rationalize wire refdes Jun-15-2006...
- Page 70 BlankSize - 17900x10600 Bottom M1190 M1190...
- Page 71 Amp A In Amp B In Gold Gold Gold Gold Product Product M1610 M1610 Amp in Jacks Amp in Jacks PCB# PCB# M1191 M1191 Sheet Sheet Date: Date: Tue Feb 10, 2004 Tue Feb 10, 2004 Rev: Rev: V1.00 V1.00 Filename: Filename: m1191 sch .sch2002...
- Page 72 StepAndRepeat - X9@1750:Y4@2000 SHEAR OFF THIS SIDE SECOND ETCH GUIDE BlankSize = 16.750 x 9.000 BlankSize = 16.750 x 9.000 SHEAR SHEAR M1191 v1.00 CLINCH ETCH SHEAR OFF THIS SIDE FIRST INSERT ORIGIN Top Assy M1191 v1.00 GUIDE LONG AXIS ORIGIN PRODUCTION NOTES 1.
- Page 73 MINI 4K99 1/4W AMP_IN_A R23A MINI ACLIP 1/4W 1/4W R12A R11A -15V 100V FLMP 100R0 C25A 1/8W (VCC) R18A 100N TO92 MINI R10A LM13600N +76.2V 1/4W U2:D 100P 100V 5102 1/4W +15V 6745 TO92 R84A MINI R15A Q22A Dual VCA 1/4W FLMP 5102...
- Page 74 AmpA 1/4in JCK SLEEVE 3924 J3A:A Euro Output SPEAKON 4C 3628 AmpA 3628 1/4in JCK SPEAKON 4C Euro Output +76.2V +15V SLEEVE J3A:B 3924 100N 100V 100N 100V C59A C57A BAV21 100N 100V 100N 100V D52A R75A R121A -15V 1.0W 1/8W 100R0 IRL2910...
- Page 75 AmpB 1/4in JCK SLEEVE 3924 J3B:A Euro Output SPEAKON 4C 3628 +76.2V AmpB +15V C59B C57B 1/4in JCK BAV21 100N 100V 100N 100V 3628 SLEEVE SPEAKON 4C D52B 3924 R75B R121B -15V 1.0W 1/8W J3B:B IRL2910 100R0 IRL2910 FLMP Q25B Q14B R60B R74B...
- Page 76 DATE VER# DESCRIPTION OF CHANGE M1194.PCB_DATABASE_HISTORY 35V AND C36&C37#58964700/80V->#5898 8200U/50V W22:A +37V MODEL(S):- UPDATED BIAS NOTE TO READ 11mV, R45A/B&R46A/B M810 #4890 30K->#4833 27K, R112A/B&R113A/B #4868 36K-> W22:B FAN- DATE VER# DESCRIPTION OF CHANGE #4853 39K, C25A/B #5224 47N/100V->#5212 100N/63V, 10 Jan, 2004 1.00 Rationalize wire refdes...
- Page 77 2.0W Dummy 5896 2.0W 3820 W15B_ 3820 1.0W SPKR- R T V 1.0W R T V Primary X-F_CT SecMid 20AWG W15A_ 1.0W Yorkville 1.0W NL4MP-1 NL4MP-1 R76B R76A 2016 8200U 4700U 8200U 4700U 5896 5898 5896 Yorkville W22A_ 5898 2016...
- Page 78 SEE LAYOUT DIAGRAM M1194 PRODUCTION NOTES 1. PCBSA: Apply thermal grease evenly between the large inner and outter heatsinks. 2. PCBSA: Use three 8829 screws to align and attach the large heatsinks to the board. 3. PCBSA: When assembling heatsinks to Q20A, Q20B, Q21A, Q21B and Q37, ensure heatsinks are straight and sitting flat against board.
- Page 79 SEE LAYOUT DIAGRAM # DATE VER# DESCRIPTION OF CHANGE M1194.PCB_DATABASE_HISTORY UPDATED BIAS NOTE TO READ 11mV, R45A/B&R46A/B MODEL(S):- M810-2 #4890 30K->#4833 27K, R112A/B&R113A/B #4868 36K-> DATE VER# DESCRIPTION OF CHANGE #4853 39K, C25A/B #5224 47N/100V->#5212 100N/63V, 10 Jan, 2004 1.00 Rationalize wire refdes R79A/B #6127 470K->#6126 220K, SWAPPED W8 AND W35 24 Feb, 2004...
- Page 80 BlankSize - 17900x10625 Bottom M1194 V10.00 M1194...
- Page 81 BlankSize - 17900x10625 Pcb MechM1194 V10.00 EYELET LEGEND SOCKET SOCKET UPSIDE DOWN NORMAL NORMAL LARGE SOCKET WITH DIRECTION CLINCH INSERT ORIGIN LONG AXIS ORIGIN...
- Page 82 C59A R110A Set P1 for 11mV between TP1 and TP2 R110B Set P1 for 11mv C57A To Mixer 2329 C59B BC560C 6874 100N Pos Driver BC560C C25A C18A between TP1 and TP2 C57B C18B R113A R40B Q22B Pos Driver 6874 Q22A R40A X12B...
- Page 83 8. During a sound check and with the band playing, make the following control adjustments: To get the full Owner’s Manual please visit our website at http://www.yorkville.com/manuals/ or, if you need a printed version call 905-837-8777 Printed In CANADA QuickStart-M810-M1610-00-1v1 • YS#QSTARTM8162 • January 22, 2020...
- Page 84 (Évitez de pointer le microphone vers les haut-parleurs). ’égalisateur incorporé. 8. Procédez aux réglages des contrôles suivants durant le “sound check” du groupe: Pour obtenir le manuel de utilisateur visitez notre site Web à http://www.yorkville.com/manuals/ ou, si vous avez besoin d’une version imprimée appelez-nous au 905-837-8777...
- Page 85 8.0a CIR BREAKER (CE = 4,0A CIR BREAKER 3587 DPDT ROKR SW QUIK 250"AC/PWR ON 3663 SNAP IEC PWR SOC W/.250TAB 3426 8' 3/16 SJT AC LINE CORD REMOVB-CSA 3474 6' 3X.075MM AC LINE CORD EURO-REMOV Series 2 EFX section EURO PWR CORD SERVICE-QuickGuide-m810-m1610-00-1v2.xls ftp.yorkville.com Speaker Enclosure...
- Page 86 STEREO DIGITAL EFFECTS Y ORKVILLE SOUND • DIGIT AL EFFECTS BY A.R.T . A ROOMS HALLS CHAMBERS / PLA TES M MEDIUM DELA YS 1 0.5s Bright Small Room 1 1.5s Dark Medium Hall 1 0.8s Warm Chamber 1 200ms low regen delay 2 0.5s Warm Small Room 2 1.5s Warm Medium Hall 2 0.8s Bright Chamber...
- Page 87 M810/M1610 Series 2 Effect Modify Effect Modify decay decay Room Reverb Fast Echo Hall Reverb Short Decay Echo delay decay Hall Reverb - Vocals Long Decay Echo Hall Reverb w/Echo Chorus rate Plate Reverb Flanger decay Rotary Speaker Plate Reverb - Vocals gain Plate Reverb w/Echo Distortion...
- Page 88 E Q U A L I Z E R A E Q U A L I Z E R A E Q U A L I Z E R B E Q U A L I Z E R B Mute 1-8 Mute 1-8 630 1.0K 1.6K 2.5K 4.0K 6.3K...
- Page 89 E Q U A L I Z E R B E Q U A L I Z E R A Mute 1-8 630 1.0K 1.6K 2.5K 4.0K 6.3K 630 1.0K 1.6K 2.5K 4.0K 6.3K 9/10 Assign Left /Right Main/Mon Clip/ Return Protect Power...
- Page 90 V I O R E D G R Y DUMMY G R Y Y E L G R N V I O R E D CH1258E M1610 CE --WIRING DIAG. 245V SHOWN AS 230V OPERATION...
- Page 91 V I O R E D G R Y DUMMY V I O Y E L G R Y R E D CH1258E M1610 CE --WIRING DIAG. 230V SHOWN AS 245V OPERATION FOR 245V: USE BLUE AND BLACK PRIMARY WIRES...
