Schiit MAGNI Owner's Manual page 2

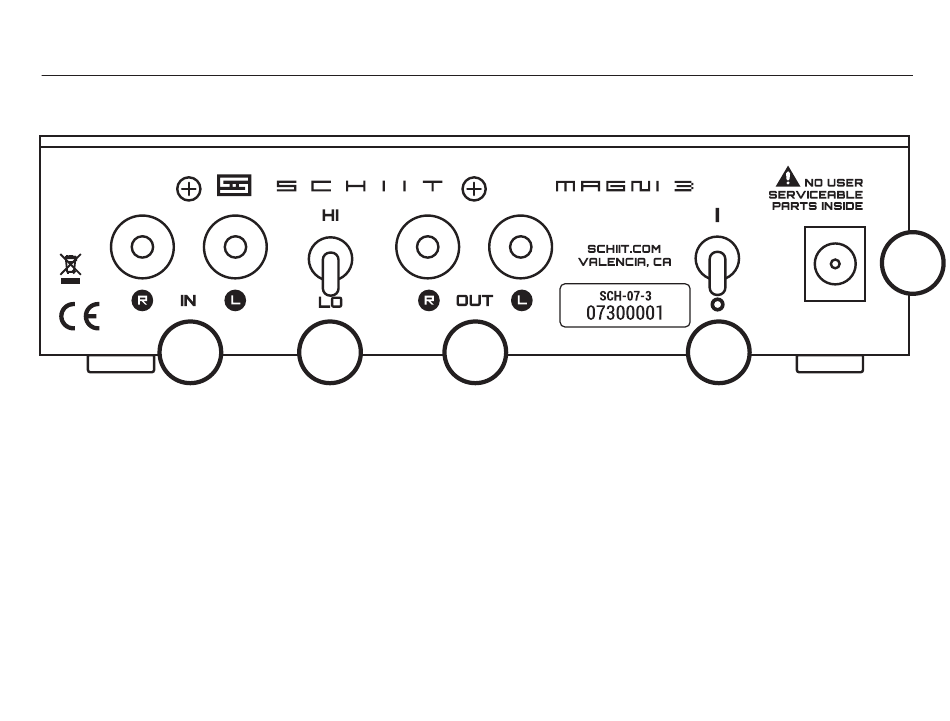

CONNECTIONS
1
1 Connect your source to the Magni's "IN" RCA
jacks with high-quality RCA cables. Or you can
use crappy cables (but why?)
2 Connect the supplied wall-wart cable to the
jack labeled "AC IN." Do not use any other
wall-wart, or Magni will not work.*
3 Optional: Connect the preamp outputs to
powered monitors or an external power amp.
3
5
ASSEMBLED
IN USA
4 Turn on the switch. The protection relay will
mute the output for about 10 seconds, then it will
engage with a click.
5 Select HI or LO gain, depending on your
headphones. IEMs and earbud style headphones
will probably need LO gain. If you don't have
enough volume control range, use LO gain.
*Magni's wall-wart is AC output. Most AC adapters are
DC output, and will not work with Magni. Magni works
with a 14-16VAC, 1-2A output adapter only.
AC IN
4
2
