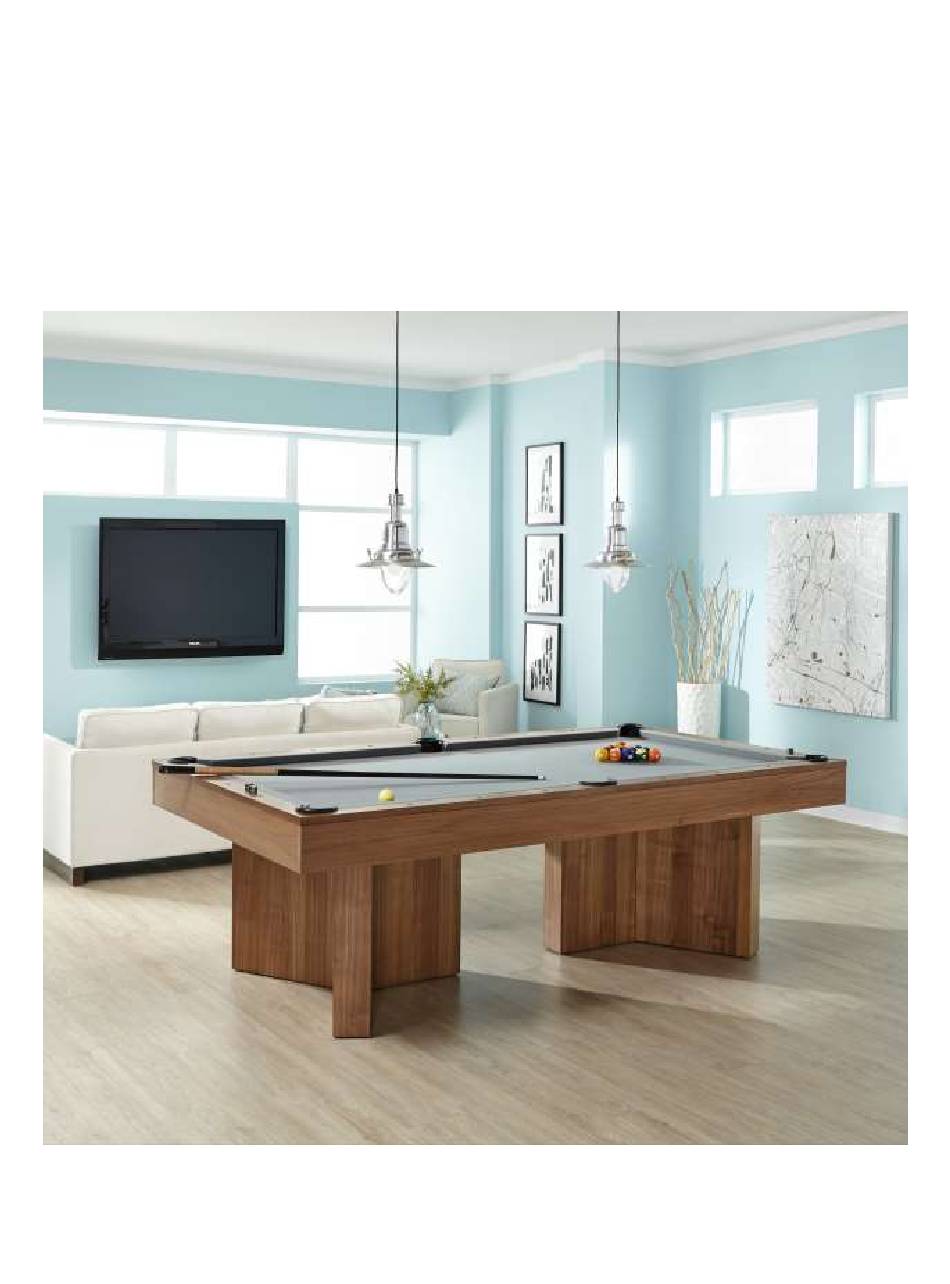

- Page 1 Infinity Billiard Assembly Instructions Provided by: American Heritage Billiards *Please read entire Assembly guide prior to building the table.
- Page 2 Prior to Assembly, Check that there is 2 x Leg Boxes, 1 Side Blinds/Beams/Hardware Box, and 1 x Rail Box **ALL Hardware is packed inside the Cabinet Box Step 1: Using 1 bolt, lock washer, and washer, connect each straight leg to the angled leg at both the top and bottom.
- Page 3 Step 2: Assemble the beam structure by hand tightening using the provided bolts, washers and nuts. Attach the beam structure to the assembled leg sets by using the provided bolts, washers, and lock washers and attaching the short cross beam closest to the end beam to the legs as shown below.
- Page 4 Step 3: With a tape measure, measure the cross beam assembly diagonally from opposing corners to make sure cross beam assembly is square, and then tighten all bolts. Step 4: Making sure table assembly is in the proper spot in the room, use a level to ensure the frame is level to the floor.
- Page 5 Step 8: Slate bed will ultimately look like this when covered with cloth Step 9A: Locate the #2 and #3 rails (side rails) and the cooresponding long side blinds. Make sure rail blind is centered on the rails measuring the overhang on each end. Make sure the center pocket opening seam is tight.
- Page 6 Step 9B: Follow this same process for the end rails and blinds. Step 10: For both long side rail/blind assemblies, thread the threaded rods into all rail inserts being sure to hand tighten before proceeding to the next step Do not touch the End Rails or End Blinds yet. Threaded Step 11: Take the two long rail/blind assemblies and position by lining up the rail bolt holes in the slate and the cooresponding threaded rods of the rail.
- Page 7 Step 13: You may now hand tighten the end rails to the table as described in Step 12. Step 14: Once all rails/blinds are straight and flush, tighten all rail nuts with deep well socket. Step 13: NOTE: the side pockets and corner pockets ARE different and will only work correctly one way. To install the pockets, squeeze the top of the pocket and bring it up through the pocket opening from the bottom.
