Erica Synths FUSION PLASMA DRIVE Manual

THANK YOU FOR ORDERING
ERICA FUSION PLASMA DRIVE!
The Erica Synths Fusion series modules
are designed combining vacuum tubes
and semiconductors therefore they bring
warm, powerful sound and overdrive
possibilities of vacuum tubes into your
modular system.
Erica Fusion series consist of range of
modules used in sound shaping circuit
– VCO, Mixer, real Ringmodulator using
audio transformers and germanium
diode ring, VCF, VCA, Analogue Delay/
Flanger, Palsma Drive and others.
Also Erica Fusion System is available.
Plasma Drive is result of Erica Synths
collaboration with a Latvian company
Gamechanger Audio, developers
of Plasma Pedal. It gives you a new
and previously unexplored method of
achieving signal clipping - instead of
using LED circuits, transistors or vacuum
tubes to produce overdrive, the Plasma
Drive boosts audio signal to 3000V and
transforms it into a series of continuous
high-voltage discharges in a xenon-filled
tube. CV control over distortion level and
dry/wet mix, as well as octave up and 1
and 2 octaves down tracking oscillators
add even more harmonics to the original
signal. Tracking oscillators can be
adjusts nuances of sound. The Plasma
Drive module is powered via conventional
eurorack PSU ribbon cable and the power
consumption is around 150mA.

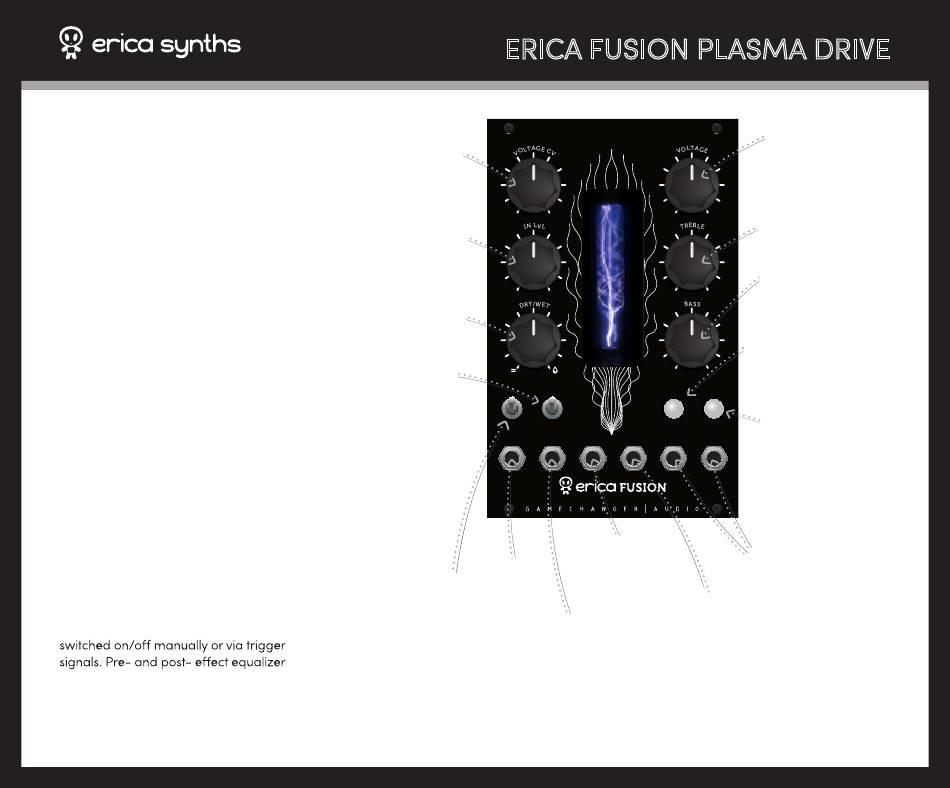

Adjust manually Voltage
CV level for desired
overdrive dynamics
Adjust input audio
signal level! Fusion
modules are sensitive
to input signal levels
and, adjusting it, can on
great deal change the
resulting sound
This knob provides
smooth mix between
Dry and Wet signals,
Dry/Wet CV is added to
the knob position
This three position
switch selects tracking
EQ ON
oscillators. In up
position +1oct is added
EQ OFF
to the input sound,
INPUT
in low position -1oct
is added to the input
sound, in the mid
position, both +1oct
and -1oct are added.
This provides extra
harmonics
and distortion
This is
This is pre-distortion
audio
circuit equalizer switch. input
By default audio signal
after distortion circuit
is passed through the
equalizer. In the EQ
ON setting equalizer
is also added to the
input signal before the
distortion circuit

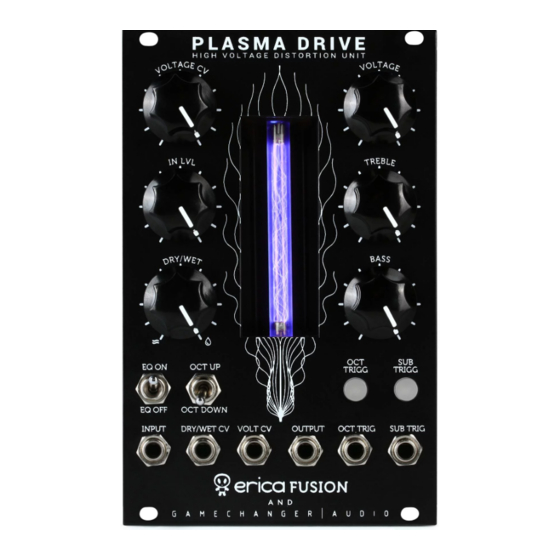

ERICA FUSION PLASMA DRIVE
P L A S M A D R I V E
H I G H V O L T A G E D I S T O R T I O N U N I T
OCT
OCT UP
TRIGG
OCT DOWN
DRY/WET CV VOLT CV OUTPUT OCT TRIG
A N D
This is Voltage
CV input. The CV
is added to the
Voltage knob
setting
the audio
This is Dry/Wet
CV input. The CV
is added to the
Dry/Wet knob
setting
Adjust overdrive level
manually from light to
extreme in far CW setting.
The Voltage CV is added
to the knob
setting
Adjust equalizer high
frequency boost/cut
Adjust equalizer low
frequency boost/cut
This button engages
the tracking oscillators
depending on the Octave
switch setting. The tracking
oscillator is on, when the
button is lit
SUB
TRIGG
This button engages -2
and -3 octave tracking
oscillators.
SUB TRIG
These will be audible
only, if the Octave switch
is in the middle or low
settings (-1oct tracking
oscillator on)
These are octave trigger
inputs. The first incoming
trigger engages the
relevant tracking
This is oscillator, the second one
– disengages.
output By sending trigger patter
of the into those inputs, you
module can achieve interesting
rhythmic distortion
patterns
