Aquamatic HYDRAMATIC Operational Manual page 15

HOW TO REPLACE A SLIDER continued
9). Place rope cord back into new slider GREAT CARE must be taken when replacing the new slider.
It is VERY IMPORTANT that the slider screws are screwed down to the correct depth to prevent

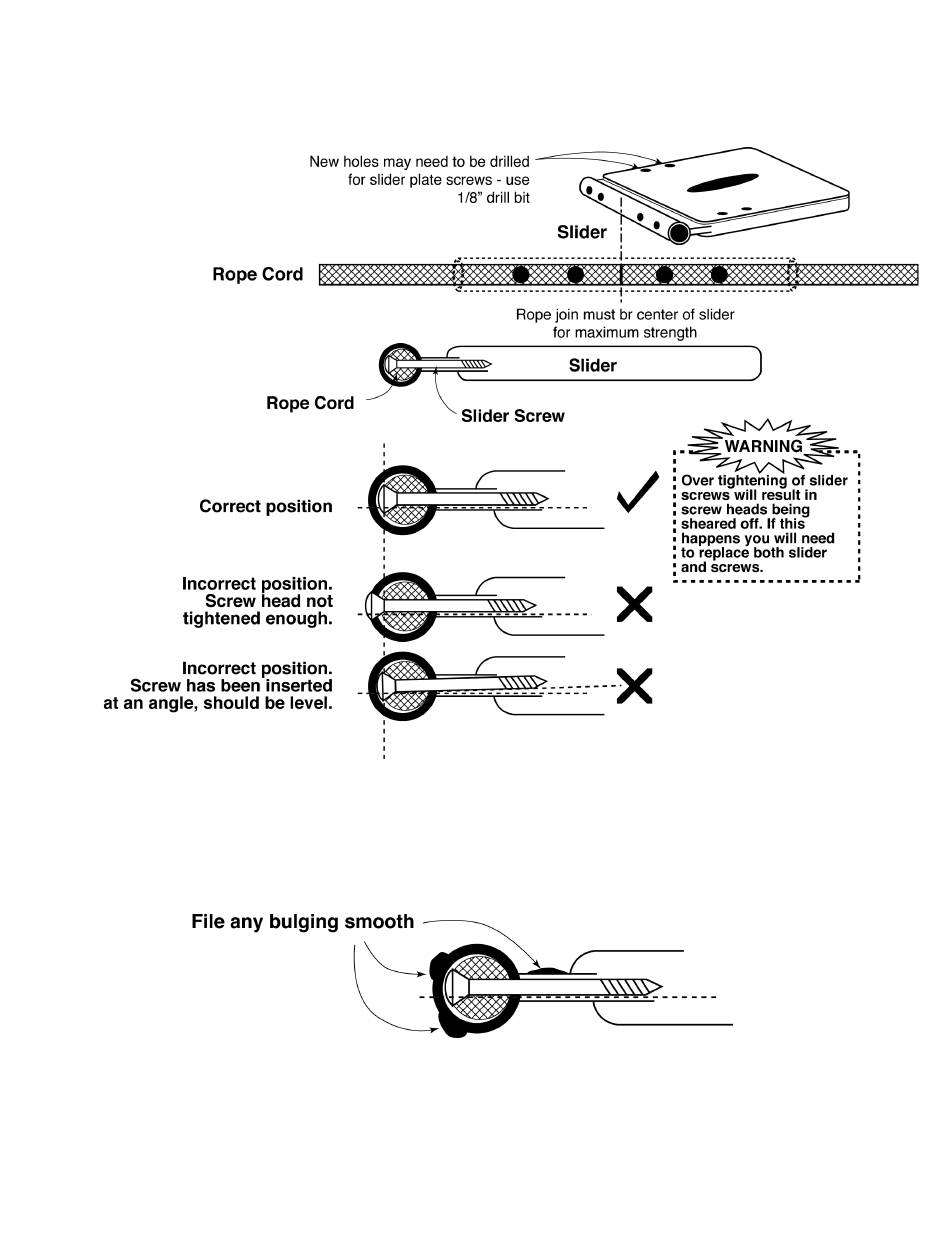

unnecessary wear and tear. See diagram below.
10).
When all four slider screws have been inserted slight bulging may occur in the neck and tub of the slider.
If this happens take a small file and file the bulge level. See diagram below.
11). When you are satisfied that the slider is attached, reinsert slider back into the tracks and reassemble i.e.
slider - slider Plate (using slider plate screws, new holes may need to be drilled) - leading edge bar.
NOTE: - When reassembling slider plate to leading edge bar make sure that they are free to move from left to
right (this enables the leading edge bar to move back and for the preventing jamming). To identify the correct
"free moving joints' LOCKING Nuts are used.
12). When all parts have been reassembled lubricate running tracks and leading edge 'free moving joint' with
Silicone Spray (water based only) and check for skew adjustment.
