Aquamatic HYDRAMATIC Operational Manual page 14

HOW TO CHANGE A SLIDER
If you are replacing a slider due to wear and tear or as part of a maintenance program then it is advisable that the
"end stop guides" are also replaced.
It is also advisable to change both sliders.

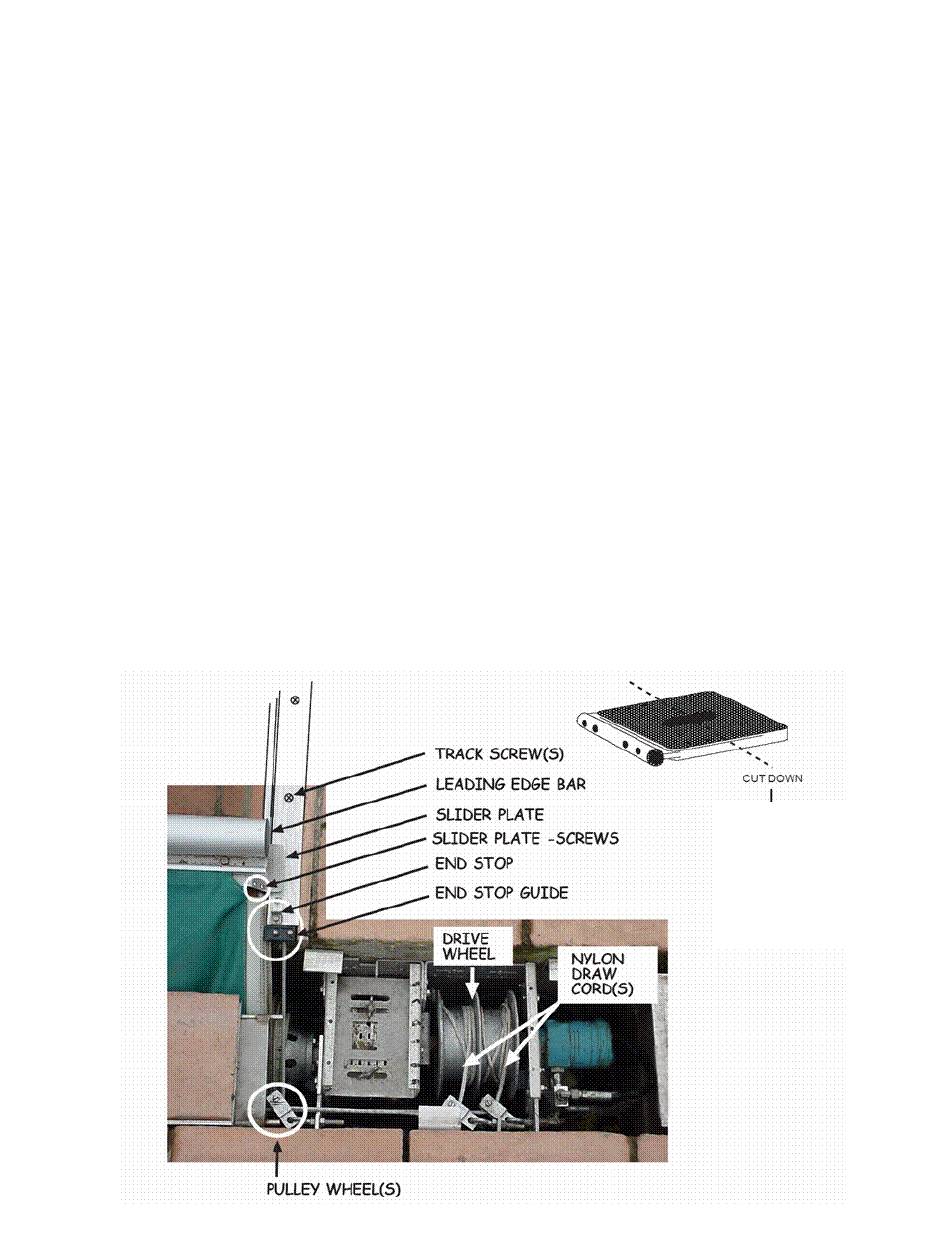

TO REMOVE A SLIDER
1). Fully retract the cover to the fully open position until the slider is as close to the track guide as possible.
2). Remove pit housing lid to expose drive unit.
3). Jog the key to open position to release tension on rope then, using your hands pull rope cords that are wound
up onto the drive wheel this is required to release the tension on the cover fabric.
4). Remove two track screws. This will enable you to lift the track and enable 'End Stop Guides' to be removed.
5). Remove end stop and end stop guides.
6). Take slider out of tracks.
7). Remove slider plate from leading edge bar on flushtrack. On standard toptrack or undertrack you
need only to unbolt the slider.
8). Remove slider plate from slider undo 4 x 'Slider Plate' screws.
9). Remove slider from rope undo 4 x slider screws with a #0 Philips bit driver
13
All replacement sliders are
supplied full size.
You may need to cut
down the replacement
to match you existing slid-
er.
