HUEDA™ HUB WiFi Controller
Model: H-2818WIN
Before you begin, read all warnings and installation instructions (as they may have been updated from previous versions ).
Improper installation(s) present hazards, which can result in personal injury or property damage.
Safety & Warnings
Only power with a power supply that has been included in the box
Ÿ
Ensure applicable wire is installed between driver, xture, and any controls in between. When choosing wire, factor
Ÿ
in voltage drop, amperage rating and type (in-wall rated, wet location rated, etc.). Inadequate wire installation
could overheat wires and cause re.
This product is rated for indoor use only (dry locations). Avoid the direct sun light.
Ÿ
Do not modify this product beyond the instructions in this guide or the warranty will be void.
Ÿ
Wiring diagrams in this installation guide for basic installations. Please carefully review your installation before
Ÿ
proceeding.

1. Feature:

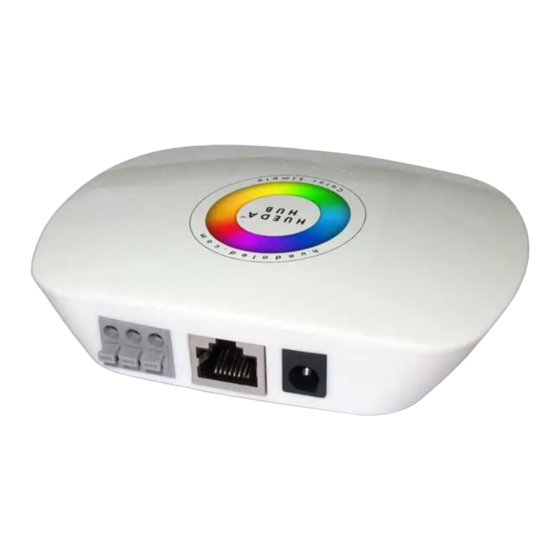

HUEDA™ Hub easily connects to your router to
allow smart phone device (IOS device) to control
t h e H U E D A ™ f a m i l y o f c o l o r r e c e i v e r s a n d
DMX512 color decoders.

2. Included Items:

HUEDA™ Hub Wifi Controller
Ÿ
12VDC Power Adapter
Ÿ
LAN Cable (2 meter (6.56ft))
Ÿ

4. Wiring Diagram:

Method 1 : Connect your smart phone with your home net router(WiFi-RF)
HUEDA™ App
Method 2 : Connect your smart phone with HUEDA™ HUB H-2818WIN (WiFi -RF)
12VDC
AC/DC Adapter
Power Input
1/3
