OBDPROG MT401 User Manual
Statement
This handbook is the manual of OBDPROG MT401. Without the written
permission from the manufacturer, any company or individual shall not copy
or backup it in any form (electronic, mechanical, photocopying, recording or
otherwise).This manual is only operating instructions for OBDPROG MT401. If
any result caused by using it on other equipment, the company does not
assume any responsibility for it.
If not quality problems of OBDPROG MT401，such as equipment failure
caused by user abuse or misuse, unauthorized disassembly, repair equipment
yourself, not operate or maintain by the instructions, lose it, the repair will
not be free. Other product names mentioned in this manual are in order to
describe how to use OBDPROG MT401, and their copyrights are still observed
by the original company.
OBDPROG MT401 and files are used for normal vehicles maintenance. If used
for illegal purposes, the company does not assume legal responsibility.
OBDPROG MT401 User Manual
autosensus.com
1
Advertisement
Table of Contents
Related Manuals for OBDPROG MT401
Summary of Contents for OBDPROG MT401
- Page 1 Other product names mentioned in this manual are in order to describe how to use OBDPROG MT401, and their copyrights are still observed by the original company.
-
Page 2: Table Of Contents
1.4.1 Functions Selection…………………………………………………………………………5 1.4.2 System Setting……………………………………………………………………………….6 1.4.2.1 Language Selection……………………………………………………………. 6 1.4.2.2 Metric/Inch………………………………..……………………………...………7 1.4.2.3 Data logging…………………………………………………………...…………7 1.4.2.4 Font setting………………………………………………………….…..……….8 1.4.3 System Information………………………………………………………….……..……8 1.4.4 Device Self-test………………………………………………………………….………….9 Chapter 2: How to update software for OBDPROG MT401……………………………….…….……9 2.1 Update Tool software Installation……………………………………………….…………9 2.2 Software Updating………………………………………………………………………………11... -
Page 3: Chapter 1: Summary
OBDPROG MT401 User Manual autosensus.com Chapter 1: Summary 1.1.Features 1.1.1. Advantages ●Multi-language environment can be applied in different countries and regions. ●The main unit system adopts ARM high speed chip to keep it running fast, stable and anti-jamming. ●Updating via TF card at any moment. -
Page 4: Introduction Of The Device

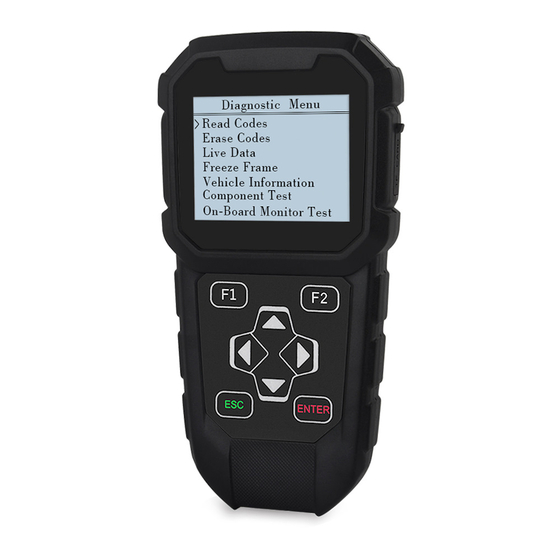

OBDPROG MT401 User Manual autosensus.com 1.2 Introduction of the device 1.2.1 The main unit and accessories(Picture as below) Right Name Instruction Testing cable port Connect to the main test cable for auto key programming Display Screen Show information Keyboard input option key... -
Page 5: Hardware Technical Specification
OBDPROG MT401 User Manual autosensus.com 1.3 Hardware technical specification Dimension: 22cm(L)*11cm(W)*6.0cm(H) :ARM7 Power Supply:DC12V Operation Power:DC12V Operation Temperature: -20~60℃ Display Screen:160*160 1.4 Functions Setting Power on， and then press ENTER on the screen， then go to the function setting, setting information as shown below: 1.4.1 Function Selection... -
Page 6: System Setting
OBDPROG MT401 User Manual autosensus.com Note: Software numbers and functions are different according to different product configuration. Further detailed information, please contact your distributor. 1.4.2 System Setting Select System Setting, language and font can be adjusted, as shown below: 1.4.2.1 Language Selection... -
Page 7: Metric/Inch
OBDPROG MT401 User Manual autosensus.com This device supports English. In the language directory, select required language and press ENTER to confirm it. 1.4.2.2 Metric/Inch According to different requirements, select the Metric/Inch by the up and down keys, and press ENTER to confirm as show below,... -
Page 8: Data Logging
OBDPROG MT401 User Manual autosensus.com 1.4.2.3 Data Logging Any problems during testing, please use the Data Logging function to record the test process and send the data to us. Select ON by the up and down keys and press ENTER to confirm, shown as below, Note: Every time you need to select ON if you want to record the data before testing car. -
Page 9: System Information
OBDPROG MT401 User Manual autosensus.com 1.4.3 System Information System information includes product serial number, hardware version, software version, release date, register password, etc. -
Page 10: Device Self-Test
Device self-test includes screen display, keyboard testing. hardware self-testing, etc. If it cannot show enough pictures on the screen, keyboard not work, and hardware self-test not get through, please return this OBDPROG MT401 to the manufacturer. Chapter 2: How to update software for OBDPROG MT401 2.1 Update Tool software installation... - Page 11 OBDPROG MT401 User Manual autosensus.com Step 2: Click “Next Step 3: Click “Next” Step 4: Click “Finish”...
-
Page 12: Software Updating
OBDPROG MT401 User Manual autosensus.com 2.2 Software Updating After Update Tool installation completed, click the Update Tool software icon on desktop to start the update tools. Operation steps as following: Step 1：Open update tool Step 2: Click the source menu, choose the program you want to update, click it and... - Page 13 OBDPROG MT401 User Manual autosensus.com Step 3: Click and select all the software then click “update” Step 4: Wait for several minutes then the updating finished Note：For new update software and questions during updating, please contact your distributor.
