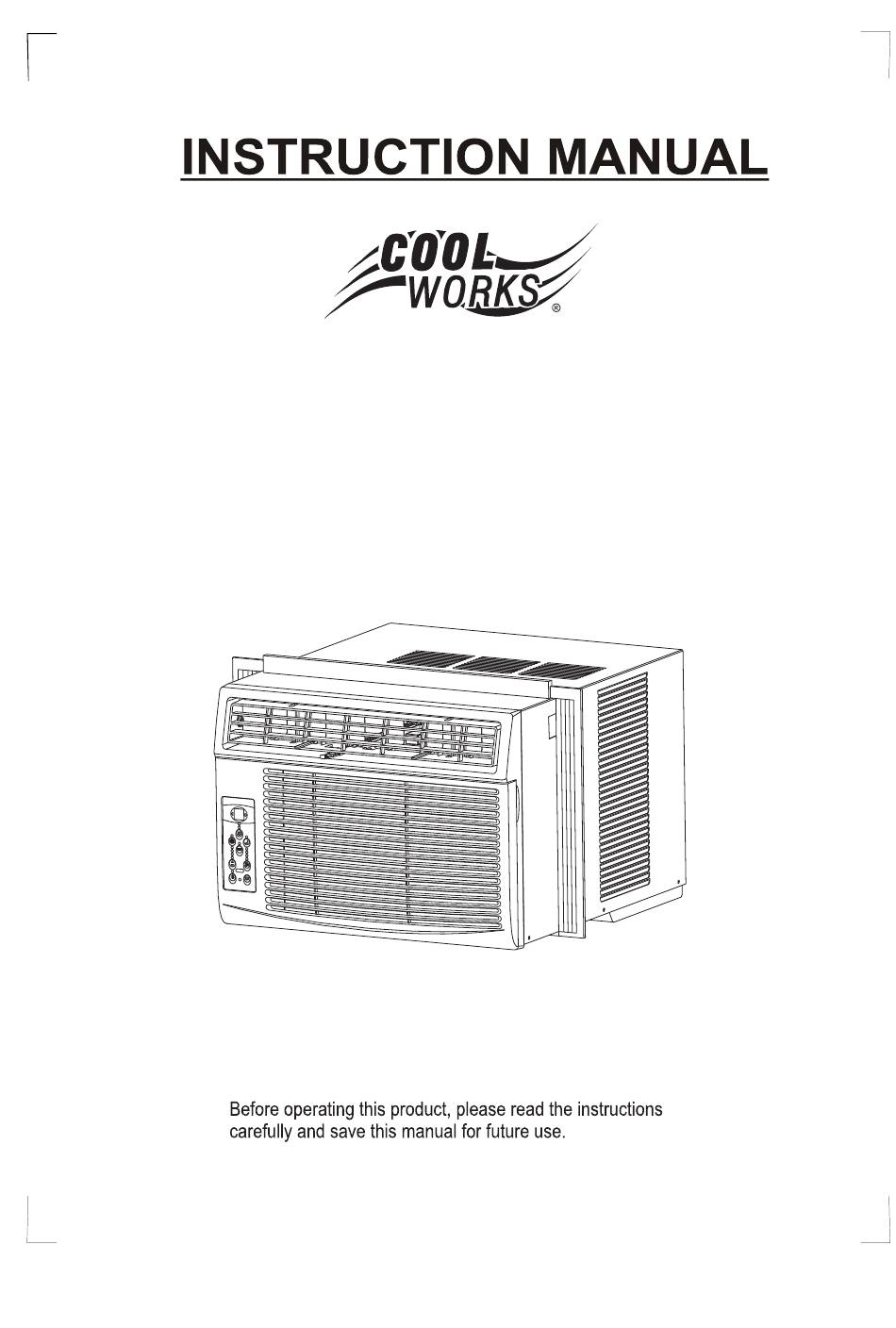

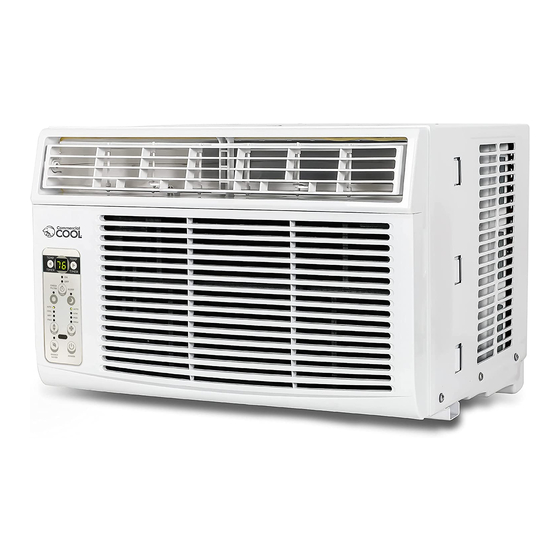

- Page 1 WINDOW AIR CONDITIONER Model: MWDCK-06CRN1-BK2; MWDCK-08CRN1-BK3 MWDCK-10CRN1-BK3; MWDCK-12CRN1-BK3...
- Page 2 2. OPERATING INSTRUCTIONS REMOTE CONTROL OPERATING INSTRUCTIONS...
- Page 3 grounding grounding A damaged appliance place...
- Page 4 any other purpose than air cooling.
-
Page 5: Safety Precautions
Safety Precautions Operation of Current Device Please contact Customer Service. with a new cord - please contact Customer Service. -
Page 6: Normal Sounds
Operating Instructions Normal Sounds similar. Air Conditioner Operation SAFETY PRECAUTIONS Indoor temp.: 17-32 Note: Performance may be reduced outside of these operating temperatures. -
Page 7: Keypad Features
Operating Instructions panel The unit can be controlled by the unit control alone or with the remote controller. Key Pad Features : (ON/OFF) button The unit will initiate automatically the Energy saver function under Cool, Dry, Auto(only Auto-Cooling and Auto-Fan) modes. NOTE: If the unit breaks off unexpectedly due to a power cut, Temp/Timer... - Page 8 Operating Instructions Key Pad Features : ( FAN SPEED button) On Dry mode, the fan is controlled at low speed automatically. Temp/Timer Temp/Timer : (ENERGY SAVER button) Control Control This function is available on COOL, DR Y, AUTO(only AUTO-COOL and AUTO FAN) modes. The fan will continue to run for 3 minutes after the compressor Display shuts off.
-
Page 9: Additional Things You Should Know
Operating Instructions LED display: Shows the set temperature in " C" or " F" and the Auto-timer settings.While on Fan only mode,it shows isplay the room temperature. Error codes: Temp Temp AS-Room temperature sensor error-Unplug the unit Timer Timer and plug it back in.If error repeats, call for service. NOTE:In Fan only mode,it will display"... -
Page 10: Installation Instructions
Installation Instructions be installed Fig.D following size(see Table 1) WINDOW SILL INTERIOR Table 1 WALL Wooden Windows 10000~12000BTU/hr Model 6000~8000BTU/hr 14 (356mm) 15-1/2 (394mm) screwdriver 3/4 (or 1/ Sash Lock Lock Frame Window sash Screws seal foam NOTE: The top rail hardware and the following F ig.E, Fig.F and Fig.G are not applicable for units over 10,000 BTU/hr. -
Page 11: How To Install
Installation Instructions How To Install NOTE: Top rail and side panels at each side are offset to provide the proper pitch to the rear of (5/16 ). This is necessary for proper condensed water utilization and drainage. If you are not using the side panels for any reason, this pitch to the rear must be maintained. - Page 12 Installation Instructions Measure from the cabinet edge H:About 3/4 to 1 for 5K to 8K); While keeping a firm grip on the air conditioner, H:About 1 to 1 / for 10K to12K); c refully place the unit into the window opening so the bottom of the air conditioner frame is against INSIDE the window sill (Fig.4).
- Page 13 Installation Instructions To secure lower sash in place, attach right angle sash lock with 3/4" (19mm) or 1/2" (12.7mm) screw as shown(Fig.8). Fig.8 FOAM SEAL Cut window sash seal foam and insert it in the space between the upper and lower sashes (Fig.9). Fig.9 If AC is Blocked by Stor m W indow Add wood as shown in Fig.10, or remove storm...
-
Page 14: Care And Cleaning
Care And Cleaning CAUTION Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent chock or fire hazards. Air Filter Cleaning The air filter should be checked at least once a month to see if cleaning is necessary. -
Page 15: Troubleshooting Tips
Troubleshooting Tips workmanship... -
Page 16: Handling The Remote Control
Remote Control Operating Instructions Handling the remote control 16 ft (5 m) getting Replacing batteries powered AAA batteries back of the remote, Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries. containers to protect the environment... -
Page 17: Remote Control Specifications
Remote Control Operating Instructions Remote Control Specifications Model RG32A/E Rated Voltage (2 AAA batteries) Lowest Voltage of CPU Emitting Signal Signal Receiving Range 16 ft (5 m) Environment Function buttons NOTE:The unit will initiate automatically the Energy Saver function under Cool,Dry, Auto(only Auto-Cooling and Auto- Fan) modes. -
Page 18: How To Use The Buttons
Remote Control Operating Instructions How to use the buttons 17°C~30° or 62°F~86°F NOTE: 1. In the Auto mode, the air conditioner will maintain the temperature by alternating between the mode of Cooling, Fan and by sensing the difference between the actual ambient temperature and the set temperature on the remote control. - Page 19 Remote Control Operating Instructions 1ºF/1ºC 1ºF/1ºC pressing temperature...
- Page 20 Remote Control Operating Instructions...
-
Page 21: Air Conditioner Limited Warranty
Air Conditioner Limited Warranty Your product is protected by this Limited Warranty Warranty service must be obtained from Midea Consumer Services or an authorized Midea servicer. Warranty • One year full warranty from original purchase date. • Limited 2nd through 5th year sealed system warranty* Arctic King, through its authorized servicers will: •...
