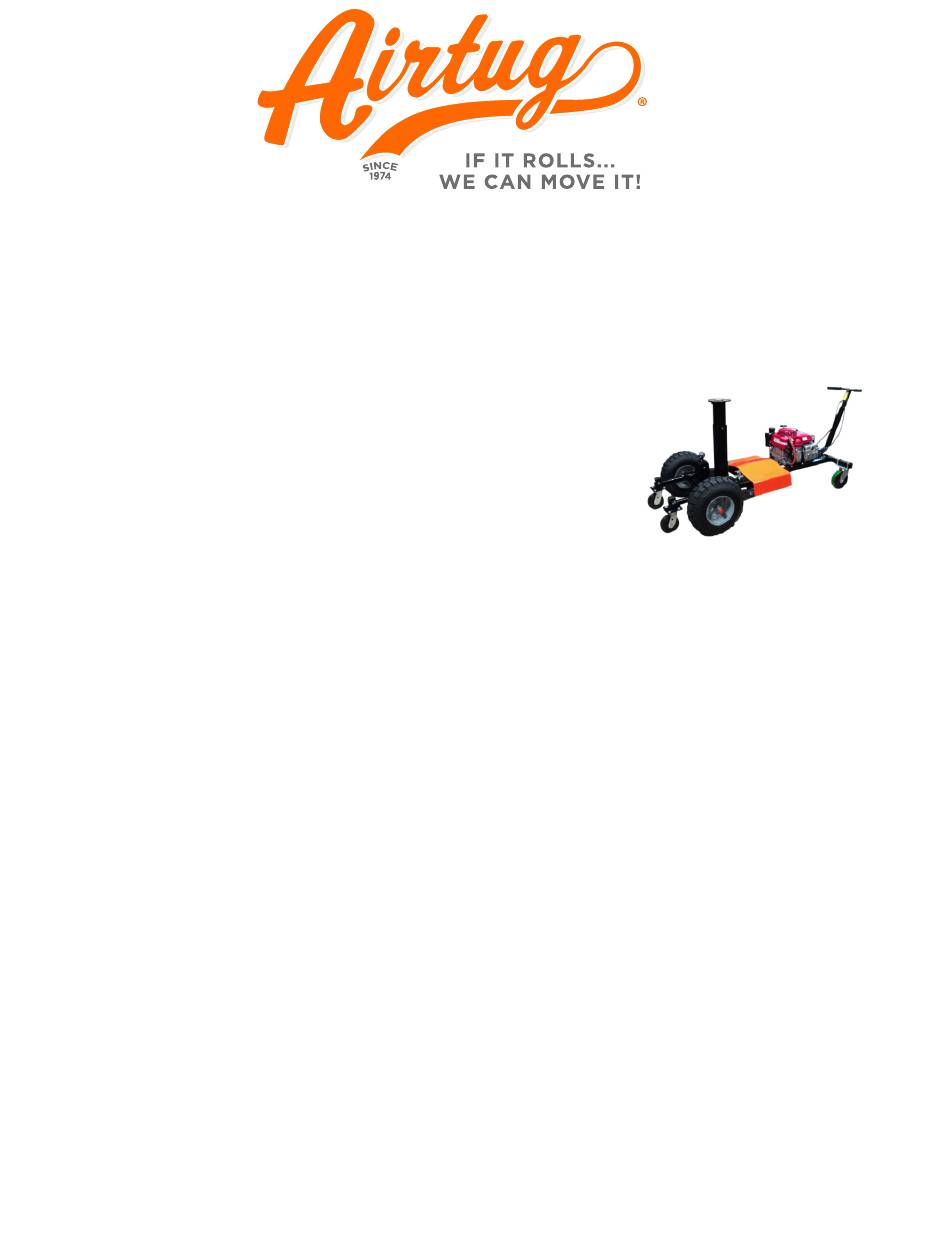

AIRTUG
®
Assembly & Operating Instructions
MODEL: TT-5W-SD-GM
Braking too abruptly or moving too fast can seriously
damage the differential ring gear. This is considered
abuse and is not covered by the transaxle warranty.
Airtug, LLC is not responsible for damage sustained
when proper clearance is not maintained between the
tug and its surroundings.
Always leave the trailer jack just off the ground when
moving for safety. Tandem and Triple-axle trailers
may try to move against the turn after stopping and
spring back. Ensure there is no torsion of tires
against each other for safety.
WARNING:
This tug is shipped WITHOUT gas or oil in the engine. Using the 10W-30 Oil
provided, fill to the "Full" mark on the dipstick. Fill the fuel tank with regular unleaded gasoline
(Non ethanol).
Engine Operation:
Push the throttle all the way forward to "Choke" the engine. Then, press the
starter button by foot located on the tug frame behind the engine. The engine is stopped by pulling
the throttle all the way back. Use a low amp battery charger (available at Airtug 216-941-9781) to
maintain a fully charged battery between use and especially in colder environments.
Tug Operations:
The twist grip handle operates the hydrostatic transaxle. Rotating the twist
grips forward or aft moves the Airtug accordingly. Rotating the grip slightly in either direction will
move the tug very slowly. As you increase the rotation of the handle grips, the tug speed increases.
Maximum torque is applied at very slow speeds ensuring excellent maneuverability while rotating the
hand grips fully results in maximum speed. The hydrostatic transaxle provides smooth variable
speed control throughout the entire range of grip motion. The twist grip is spring loaded to "return -to-
brake position." Nevertheless, it is not recommended to walk away from the tug while the engine is
running. While moving the trailer, braking is effected by gradually returning the grip to the neutral or
brake position. Even while moving the trailer on a downgrade, the tug will only go as fast as you have
the twist grip turned. Braking too abruptly with a heavy trailer or moving too fast can seriously
SAVE THIS DOCUMENT AND ENSURE ALL OPERATORS READ IT PRIOR TO MOVING ANY TRAILERS
1
Advertisement
Table of Contents
Related Manuals for AIRTUG TT-5W-SD-GM
Summary of Contents for AIRTUG TT-5W-SD-GM
- Page 1 The engine is stopped by pulling the throttle all the way back. Use a low amp battery charger (available at Airtug 216-941-9781) to maintain a fully charged battery between use and especially in colder environments.
- Page 2 When moving over the door weather edge or door rail, it’s recommended to have a little momentum and to smooth over the transition. Ramps can be purchased from Airtug, if necessary, to overcome high door sills or rough pavement.
- Page 3 Assembly Instructions Tools Needed For Assembly: Wire cutter, utility knife, 5/16”, 9/16”, 11/16” sockets or wrenches. Assembly Note: All reference to “right” and “left” orientation is made while standing behind the tug and looking forward from the operating position. Remove shrink wrap. In addition to the tug and the the handle, the following parts are included.
- Page 4 Step 3: Mount throttle control to right side of handle using bolts in handle. ( 5/16 Socket / Nut driver ) Step 4: Connect the transmission cable end to the left hand grip with the “ball” on it. Then open the nuts located several inches from the hand grip on the cable and slip the cable between the bracket on the left side of the handle and then secure the...
- Page 5 AS POSSIBLE, HOWEVER, IF YOU ARE WORKING ON ROUGH TERRAIN YOU MAY HAVE TO BRING THEM UP SO YOU DO NOT HAVE INTERFERENCE WITH DIPS AND VALLEYS IN YOUR TERRAIN. AIRTUG®, LLC, 1350 CHESTER INDUSTRIAL PKWY, AVON, OH 44011 1-216-941-9781 Airtug@gmail.com...
