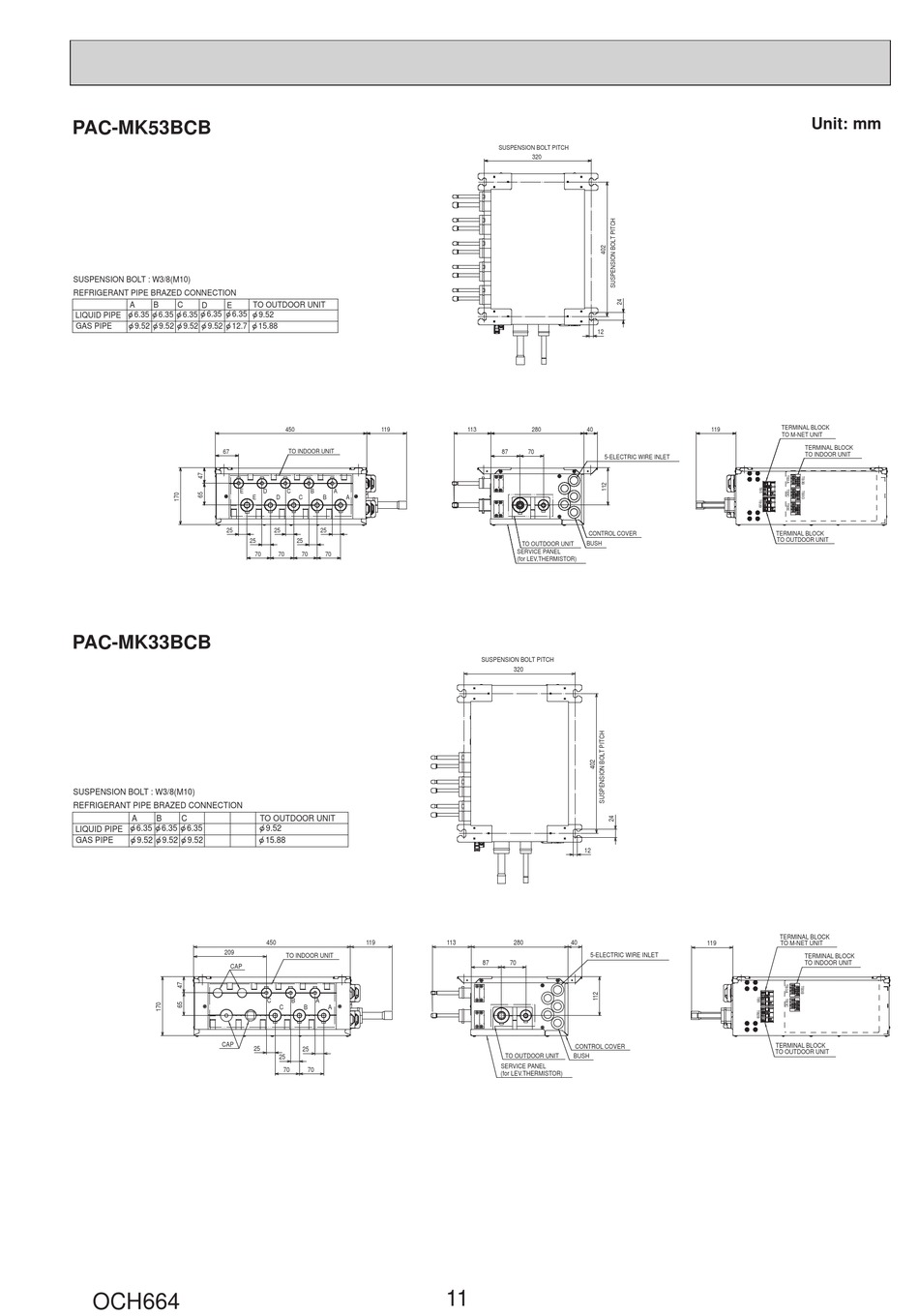

Mitsubishi Electric PAC-MK53BC Technical & Service Manual page 11

PAC-MK53BCB
SUSPENSION BOLT : W3/8(M10)
REFRIGERANT PIPE BRAZED CONNECTION
A B C D
E
{ 6.35 { 6.35 { 6.35 { 6.35 { 6.35
LIQUID PIPE
{ 9.52 { 9.52 { 9.52 { 9.52 { 12.7
GAS PIPE
67
E
25
PAC-MK33BCB
SUSPENSION BOLT : W3/8(M10)
REFRIGERANT PIPE BRAZED CONNECTION
A B C
{ 6.35 { 6.35 { 6.35
LIQUID PIPE
{ 9.52 { 9.52 { 9.52
GAS PIPE
209
CAP
CAP
OCH664
TO OUTDOOR UNIT
{ 9.52
{ 15.88
450 119
TO INDOOR UNIT
D C B A
E D C B A
25 25
25 25
70 70 70 70
TO OUTDOOR UNIT
{ 9.52
{ 15.88
450 119
TO INDOOR UNIT
C B A
C B A
25
25
25
70 70
SUSPENSION BOLT PITCH
320
12
113 280 40
87 70
5-ELECTRIC WIRE INLET
CONTROL COVER
TO OUTDOOR UNIT BUSH
SERVICE PANEL
(for LEV,THERMISTOR)
SUSPENSION BOLT PITCH
320
12
113 280 40
5-ELECTRIC WIRE INLET
87 70
CONTROL COVER
TO OUTDOOR UNIT BUSH
SERVICE PANEL
(for LEV.THERMISTOR)
11
Unit: mm
TERMINAL BLOCK
119
TO M-NET UNIT
TERMINAL BLOCK
TO INDOOR UNIT
TERMINAL BLOCK
TO OUTDOOR UNIT
TERMINAL BLOCK
TO M-NET UNIT
119
TERMINAL BLOCK
TO INDOOR UNIT
TERMINAL BLOCK
TO OUTDOOR UNIT
