Samsung PS-42D4S Connecting Manual
  1. Manuals
  2. Brands
  3. Samsung Manuals
  4. Plasma TV
  5. PS-42D4S
  6. Connecting manual
Samsung PS-42D4S Connecting Manual

Samsung PS-42D4S Connecting Manual

Hide thumbs Also See for PS-42D4S:

Advertisement

Quick Links

See also: Connection Manual
ENG
TURNS THE PDP ON AND OFF
DIRECT CHANNEL SELECTION
EXTERNAL INPUT SELECTION/
TELETEXT PAGE HOLD
TEMPORARY SOUND SWITCH-OFF
AUTOMATIC SWITCH-OFF/
(DEPENDING ON THE MODEL)
MOVE TO THE REQUIRED
ADJUST AN OPTION VALUE
SOUND MODE SELECTION/
MIX BOTH TELETEXT INFORMATION
AND THE NORMAL BROADCAST

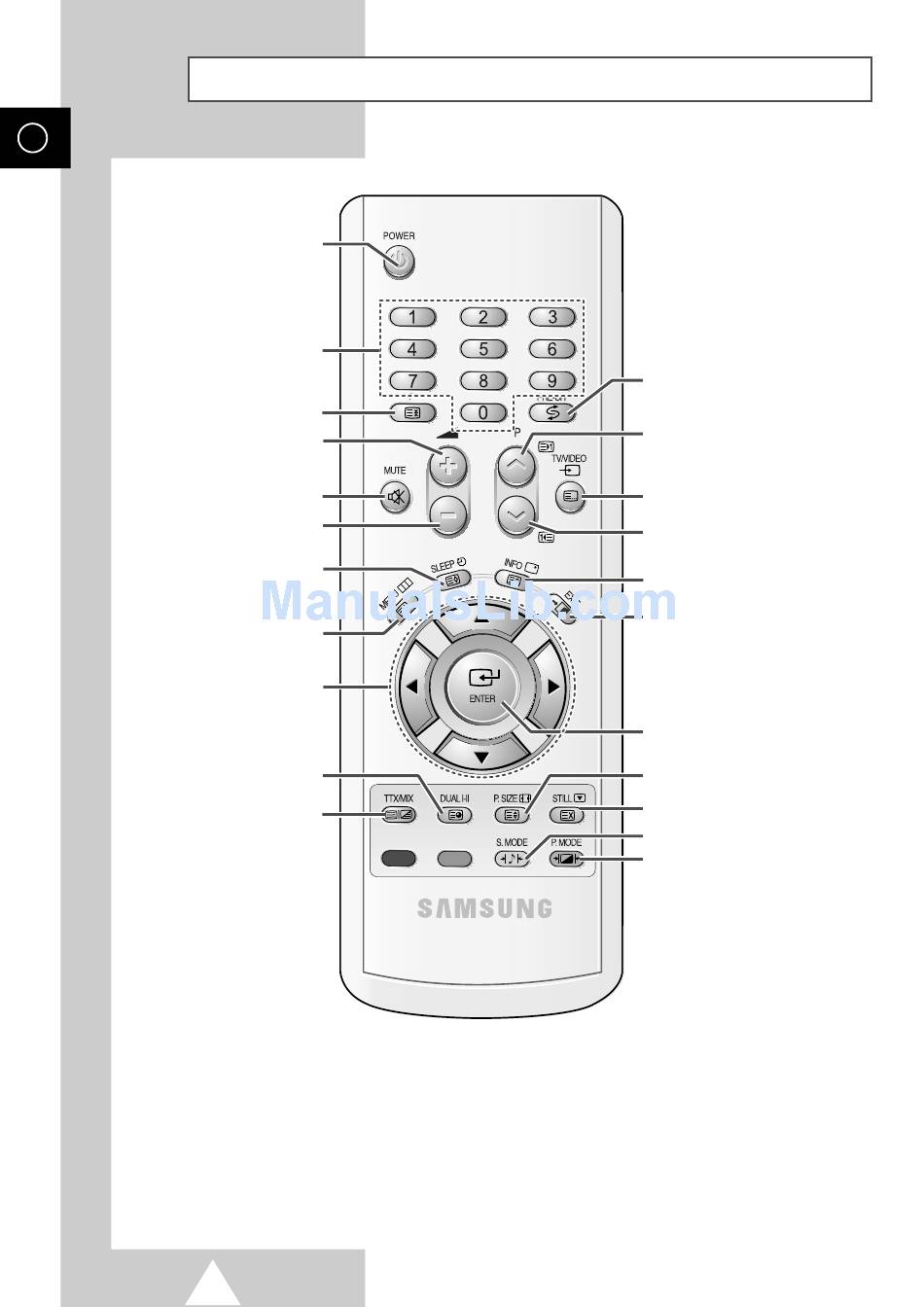

Infrared Remote Control

VOLUME INCREASE
VOLUME DECREASE
TELETEXT STORE
MENU DISPLAY/
TELETEXT INDEX
MENU OPTION/
RESPECTIVELY
TELETEXT SUB-PAGE
TELETEXT DISPLAY/
➢
The performance of the remote control may be affected by bright light.
TUNES TO THE PREVIOUS CHANNEL
NEXT CHANNEL/
TELETEXT NEXT PAGE
PRESS TO SELECT ALL OF THE
AVAILABLE VIDEO SOURCES/
TELETEXT MODE (LIST/FLOF)
SELECTION (DEPENDING ON THE MODEL)
PREVIOUS CHANNEL/
TELETEXT PREVIOUS PAGE
INFORMATION DISPLAY/
TELETEXT REVEAL
TV MODE SELECTION
EXIT TELETEXT
(DEPENDING ON THE MODEL)
CONFIRM YOUR CHOICE
(STORE OR ENTER)
PICTURE SIZE/
TELETEXT SIZE SELECTION
PICTURE STILL/
TELETEXT CANCEL
SOUND EFFECT SELECTION
PICTURE EFFECT SELECTION

Advertisement

loading

Related Manuals for Samsung PS-42D4S

Summary of Contents for Samsung PS-42D4S

  • Page 1: Infrared Remote Control

    Infrared Remote Control TURNS THE PDP ON AND OFF DIRECT CHANNEL SELECTION EXTERNAL INPUT SELECTION/ TELETEXT PAGE HOLD VOLUME INCREASE TEMPORARY SOUND SWITCH-OFF VOLUME DECREASE AUTOMATIC SWITCH-OFF/ TELETEXT STORE (DEPENDING ON THE MODEL) MENU DISPLAY/ TELETEXT INDEX MOVE TO THE REQUIRED MENU OPTION/ ADJUST AN OPTION VALUE RESPECTIVELY...

  • Page 2: Connecting To The External Devices

    Connecting to the External Devices “MONITOR OUT” are used for the equipment with an RGB output, such as video game devices or video disc players. Rear of the TV (Input/Output) ① This end can be fitted with: ◆ A SCART connector ◆...

  • Page 3: Connecting To The S-Video Input

    Connecting to the S-Video Input The S-VIDEO and RCA (AUDIO-L/R) connectors are used for equipment with an S-Video output, such as a camcorder or VCR. Rear of the TV ① To play picture and sound, both the S-VIDEO and RCA connectors must be used. ☛...

  • Page 4: Connecting To The Dvi Input

    Connecting to the DVI Input The “DVI” (video) and “L-AUDIO-R” connectors are used for equipment with a DVI output. Rear of the TV Connecting to the PC Input The “RGB” (video) and “AUDIO” connectors are used for interfacing with your PC. Rear of the TV Personal Computer Personal Computer...

  • Page 5: Connecting To The Component Input

    Connecting to the Component Input Rear of the TV ① The “COMPONENT” connectors are DTV receiver used for DTV receiver or DVD. (480i,p/576i,p/720p/1080i)

  • Page 6: Connecting And Using The Home Theater System

    Connecting and Using the Home Theater System Use the Monitor Out ports of the PDP for Home Theater System Connections. ① DVD Home Theater ☛ ◆ Refer to corresponding user’s manual from the manufacturer for wiring the speakers to the DVD Home Theater System (or AV Receiver). ◆...
