Connection Manual

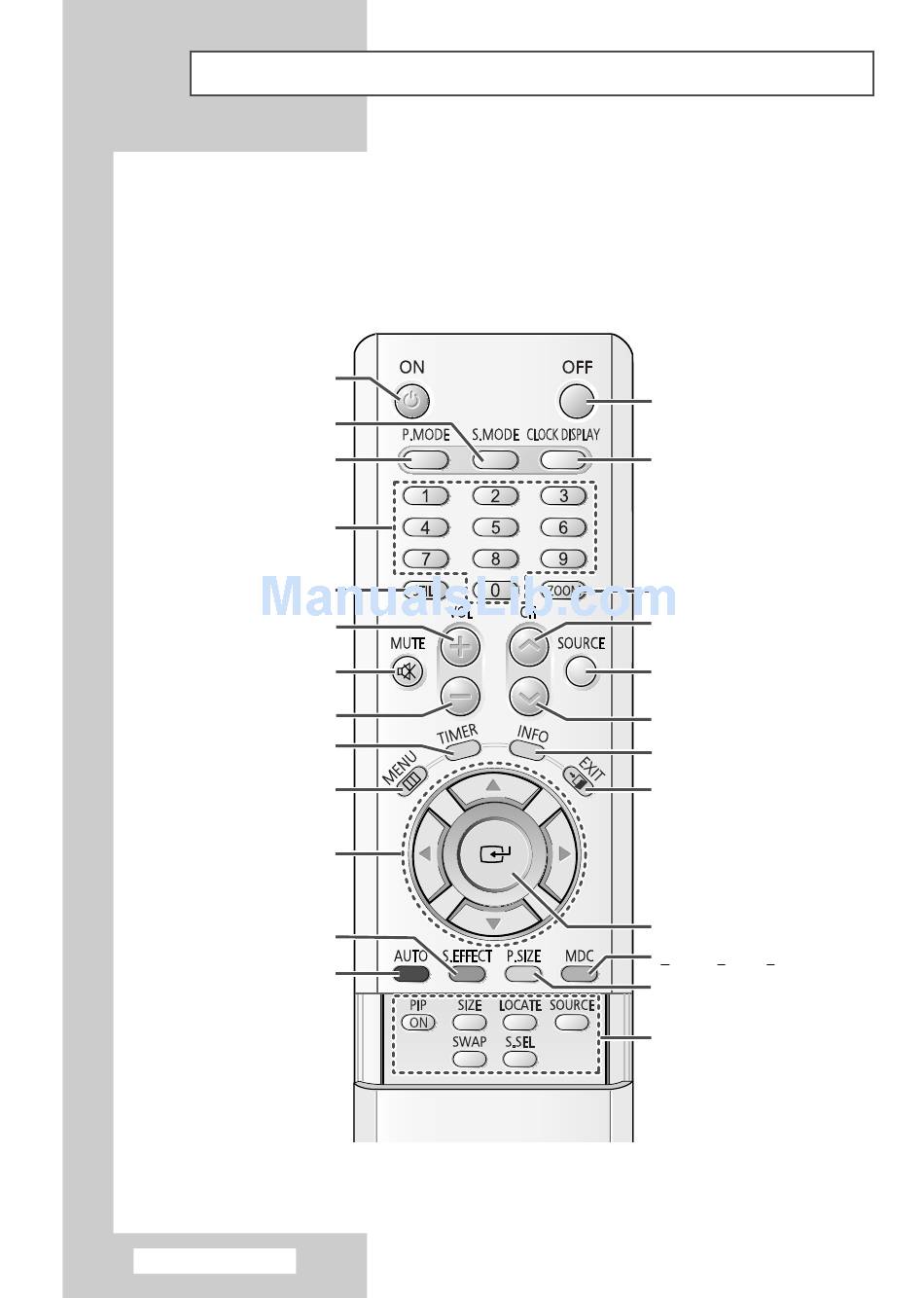

Becoming Familiar with the Remote Control
The remote control is used mainly to:
◆ Change sources and adjust the volume
◆ Set up the PDP using the on-screen menu system
PDP ON
SOUND MODE SELECTION
PICTURE MODE SELECTION
NUMERIC BUTTONS
PICTURE STILL
VOLUME INCREASE
TEMPORARY SOUND SWITCH-OFF
➢
Press it again , or - /+ button
to turn the sound back on.
VOLUME DECREASE
SETTING THE TIMER
DISPLAY AND CLOSE THE MENU/
RETURN TO THE PREVIOUS MENU
MOVE TO THE REQUIRED MENU
OPTION/
ADJUST AN OPTION VALUE
RESPECTIVELY
SCREEN EFFECT SELECTION
(BURNING PROTECTION)
AUTO ADJUSTMENT IN PC MODE
➢
The performance of the remote control may be affected by bright light.
English
PDP OFF
CURRENT TIME DISPLAY
ZOOM/PANNING MENU DISPLAY
(ONLY PC MODE)
NEXT CHANNEL
(NOT AVAILABLE FOR THIS MONITOR)
EXTERNAL INPUT SELECTION
PREVIOUS CHANNEL
(NOT AVAILABLE FOR THIS MONITOR)
INFORMATION DISPLAY
EXIT FROM ANY DISPLAY
CHANGE CONFIRMATION
MULTIPLE DISPLAY CONTROL
PICTURE SIZE SELECTION
PIP FUNCTIONS;
- PIP ON/OFF
- SIZE SELECTION (SIZE)
- LOCATION SELECTION (LOCATE)
- INPUT SOURCE SELECTION
(SOURCE)
- INTERCHANGE THE MAIN AND THE
SUB PICTURE (SWAP)
- SOUND SELECTION (S.SEL)
