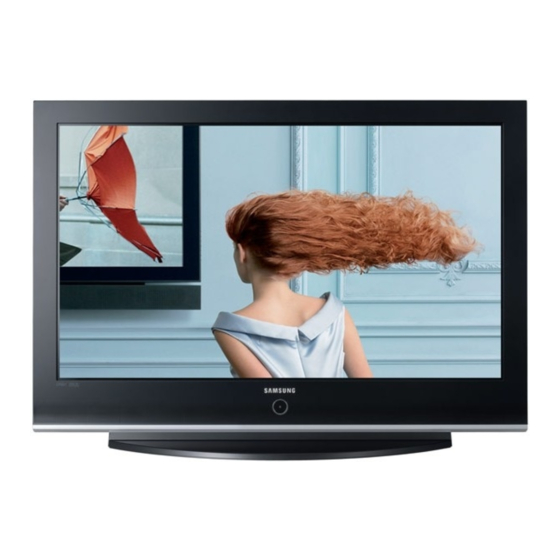

Samsung PS-42C7H Owner's Instructions Manual

Pdp-television (plasma display panel).
Hide thumbs

Advertisement

PDP-TELEVISION
(P
D
P
)
LASMA
ISPLAY
ANEL
Owner's Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
ON-SCREEN MENUS
Picture In Picture (PIP)

Energy Saving

TELETEXT
(Option)
SRS TruSurroundXT
Digital Natural Image engine
This device is a Class B digital apparatus.
Register your product at www.samsung.com/global/register

Advertisement

Table of Contents

   Also See for Samsung PS-42C7H

   Summary of Contents for Samsung PS-42C7H

  • Page 1: Energy Saving

    ON-SCREEN MENUS Picture In Picture (PIP) Energy Saving TELETEXT (Option) SRS TruSurroundXT Digital Natural Image engine This device is a Class B digital apparatus. Register your product at www.samsung.com/global/register...
  • Page 2: User Instructions

    User Instructions ◆ Screen Image retention Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”.
  • Page 3: Table Of Contents

    Contents ◆ G ENERAL NFORMATION User Instructions ... ■ Checking Parts... ■ Control Panel ... ■ Connection Panel... ■ Viewing the Remote Control (depending on the model) ... ■ Installing Batteries in the Remote Control ... ■ ◆ O PERATION Switching Your Television On and Off ...
  • Page 4: Control Panel

    Control Panel ➢ The product colour and shape may vary depending on the model. Front (or Side) Panel Speaker Œ SOURCE Displays a menu of all of the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI). ´ MENU Press to see the on-screen menu of your TV’s features.
  • Page 5 Connection Panel ➢ The product colour and shape may vary depending on the model. Rear Panel ∏ ” Ø ☛ Whenever you connect an audio or video system to your set, ensure that all elements are switched off. ☛ When connecting an external device, match the colour of the connection terminal to the cable. Œ...
  • Page 6: Viewing The Remote Control (depending On The Model)

    Ú Ú Sound mode selection Æ Æ TruSurround XT mode button ı ı Remote control setup ˜ ˜ Selects a target device to be controlled by the Samsung remote control (TV, DVD, STB, CABLE, VCR) ¯ ¯ Available source selection ˘...
  • Page 7: Installing Batteries In The Remote Control

    Installing Batteries in the Remote Control Lift the cover at the back of the remote control upward as shown in the figure. Install two AAA size batteries. ➢ Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment.
  • Page 8: Viewing The Menus

    Viewing the Menus Input Source List : TV Edit Name Move Enter Exit Freezing the Current Picture Press the MENU ( ) button. The main menu is displayed on the screen. Its left side has five icons: Input, Picture, Sound, Channel, and Setup. Press the …...
  • Page 9: Plug & Play Feature

    Plug & Play Feature When the television is initially powered on, several basic customer settings proceed automatically and subsequently. The following settings are available. If the television is in standby mode, press the POWER ( ) button on the remote control. The message to start Plug & Play is displayed. The Language menu will automatically appear after several seconds.
  • Page 10: Viewing An External Signal Source

    Viewing an External Signal Source Input Source List : TV Edit Name Move Enter Return Source List Ext.1 ---- Ext.2 ---- ---- S-Video ---- Component ---- ---- HDMI ---- Move Enter Return Editing Device Names Input Source List : TV Edit Name Move Enter...
  • Page 11: Storing Channels Automatically

    Storing Channels Automatically You can scan for the frequency ranges available to you (availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However you can sort numbers manually and clear any channels you do not wish to watch. Press the MENU ( ) button to display the menu.
  • Page 12: Storing Channels Manually

    Storing Channels Manually You can store television channels, including those received via cable networks. When storing channels manually, you can choose: ◆ Whether or not to store each of the channels found. ◆ The programme number of each stored channel which you wish to identify. Channel Country : Belgium...
  • Page 13: Adding / Locking Channels

    Adding / Locking Channels Using the Channel Manager, you can conveniently lock or add channels. Press the MENU ( ) button to display the menu. Press the … or † button to select Channel, then press the ENTER ( Press the … or † button to select Channel Manager, then press the ENTER ( ) button.
  • Page 14: Sorting The Stored Channels

    Sorting the Stored Channels Channel Country : Belgium Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter Return Sort Prog. Name C -- C 74 C 80 Move Enter Return Assigning Names to Channels Channel Country : Belgium Auto Store Manual Store Channel Manager...
  • Page 15: Fine Tuning Channel Reception

    Fine Tuning Channel Reception If the reception is clear, you do not have to fine tune the channel, as this is done automatically during the search and store operation. If the signal is weak or distorted, you may have to fine tune the channel manually. Press the MENU ( ) button to display the menu.
  • Page 16: Changing The Picture Standard

    Changing the Picture Standard You can select the type of picture which best corresponds to your viewing requirements. Picture Mode : Dynamic Size : Auto Wide Digital NR : On : On DNIe Demo : Off Move Enter Return Mode Mode Dynamic Dynamic...
  • Page 17: Selecting The Picture Size

    Selecting the Picture Size You can select the picture size which best corresponds to your viewing requirements. Press the MENU ( ) button to display the menu. Press the … or † button to select Picture, then press the ENTER ( button.
  • Page 18: Viewing The Picture In Picture (pip)

    Viewing the Picture in Picture (PIP) You can display a sub picture within the main picture. In this way you can watch TV program or monitor the video input from any connected devices. Picture Mode : Dynamic Size : 16:9 Digital NR : On : On...
  • Page 19: Sound Features

    Sound Features Press the MENU ( ) button to display the menu. Press the … or † button to select Sound, then press the ENTER ( Select the required option by pressing the … or † button, then press the ENTER ( ) button.
  • Page 20: Time Features

    Time Features Setup Plug & Play Language : English Time Game Mode : Off Blue Screen : Off Melody : Off More Move Enter Return Time Clock Set 00 : 00 Sleep Timer : Off On Timer 00 : 00 Off Off Timer 00 : 00 Off Move...
  • Page 21: Language

    Language / Blue Screen / Melody / Energy Saving Press the MENU ( ) button to display the menu. Press the … or † button to select Setup, then press the ENTER ( Select the required option by pressing the … or † button, then press the ENTER ( ) button.
  • Page 22: Screen Burn Protection

    Screen Burn Protection Setup More Energy Saving : Off Screen Burn Protection Blue Eye : On Move Enter Return Screen Burn Protection Pixel Shift All White Signal Pattern Move Enter Return Pixel Shift Pixel Shift : On Horizontal Dot Vertical Line Time Move Enter...
  • Page 23: Setting The Blue Eye

    Windows and your particular video card. But even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.) Right click the mouse on the Windows Desktop, then click on Properties.
  • Page 24: Input Mode (pc)

    Input Mode (PC) Both screen position and size will vary depending on the type of PC monitor and its resolution. The table below shows all of the display modes that are supported: Vertical Resolution Video Signal frequency (Dot X Line) (Hz) 640 x 350 70.086...
  • Page 25: Setting The Pc

    Setting the PC ➢ Preset to the PC mode by pressing the SOURCE ( Press the MENU ( ) button to display the menu. Press the … or † button to select Setup, then press the ENTER ( Press the … or † button to select PC, then press the ENTER ( Select the required option by pressing the …...
  • Page 26: Teletext Feature (depending On The Model)

    Teletext Feature (depending on the model) Most television stations provide written information services via teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons.
  • Page 27 Teletext Feature (depending on the model) The teletext pages are organized according to six categories: Part Contents Selected page number. Broadcasting channel identity. Current page number or search indications. Date and time. Text. Status information. FASTEXT information. ➢ Teletext information is often divided between several pages displayed in sequence, which can be accessed by: ◆...
  • Page 28: How To Install The Wall Mount Bracket

    Installation Notes ◆ Contact a technician for installing the wall bracket. ◆ Samsung Electronics is not responsible for any damages to the product or harm to customers when the installation is done by the customer. ◆ This product is for installing on cement walls. The product may not stay in place when installed on plaster or wood.
  • Page 29 How to Install the Wall Mount Bracket Tighten the screws of the plastic hanger (shown in picture 2) to the back side of the PDP. How to Adjust Mounting Angle ➢ Please secure the mounting bracket on the wall surface after setting its angle at 0° Secure the SET to the wall mount bracket.(Please refer to the follow ing instructions.) Set the angle by pulling the upper end of the SET attached to...
  • Page 30: Troubleshooting

    Troubleshooting Before contacting the Samsung after-sales service, perform the following simple checks. If you cannot solve the problem using the instructions below, note the model and serial number of the television and contact your local dealer. No sound or picture ◆...
  • Page 31 This page is intentionally left blank.
  • Page 32 Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
