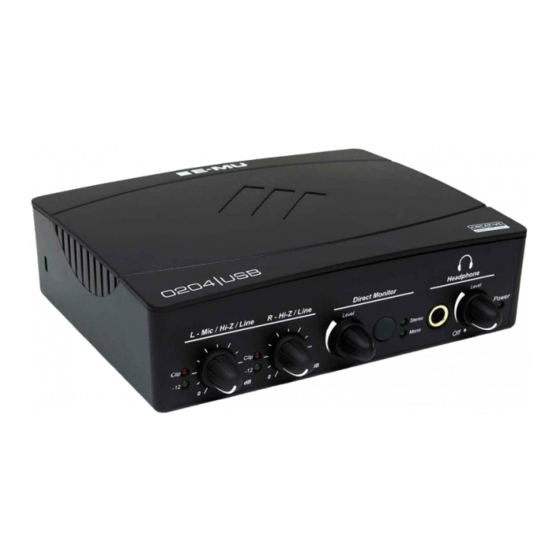

E-MU 0204 - Install for Digitiser (Windows XP, Vista and Windows 7)
1) Start up the host PC.
2) Plug the USB cable supplied with the E-MU 0204 into the USB connector on the back of the E-MU 0204
audio interface. (Stereo users: only connect one of the E-MU 0204 interfaces at this time).
3) Plug the other end of the cable into an unused USB 2 port on your laptop/tower PC.
4) Turn on the E-MU 0204 audio interface by rotating the level control at the far right of the unit clockwise.
The power light on the unit should illuminate. On the computer screen a found new hardware wizard
should appear – click on cancel to cancel the wizard.
5) Insert the E-MU 0204 Software/Manual installation CD-ROM CD/DVD drive from the E-MU Installation kit.
6) The software should install automatically, if it does not, open "My Computer" and double click on the CD
item marked E-MU. User access control will ask whether you want to install the program. Click on allow.
7) Follow the on-screen instructions – when prompted to select installation type, select Full Installation.
When installation is complete, click 'finish' and allow the computer to re-start. Stereo users connect and
turn on the second E-MU 0204 interface (when the reboot has completed), the drivers will install
automatically.
USB to Serial Cable Installation
If your Laptop/Tower PC does not have a serial (RS232) port you need to use the RS232 to USB adaptor
(supplied). To install...
1) Start the host computer system and insert the CD marked 'Graff Digitiser 6.** CD-ROM' into the CD/DVD
drive on your PC.
2) Browse to the CDROM folder D:\USB Serial Adapter\Windows\
3) Select the appropriate folder for your operating system and Double click on the icon
PL2303_Prolific_DriverInstaller
4) Follow the on-screen instructions to install the driver.
Plug in the USB to serial adaptor, Windows will apply the drivers automatically.
Check in the Windows device manager, under ports (COM & LPT) you should see Prolific USB to serial COM port
(COM??) The COM port that is emulated by the USB to serial adaptor is displayed in the brackets.
Digitiser cable connection
Connect the 15-way D type connector to the rear connector on the Digitiser.
Connect the 9-way D type connector to the RS232 to Serial adaptor 9-pin D type connector.

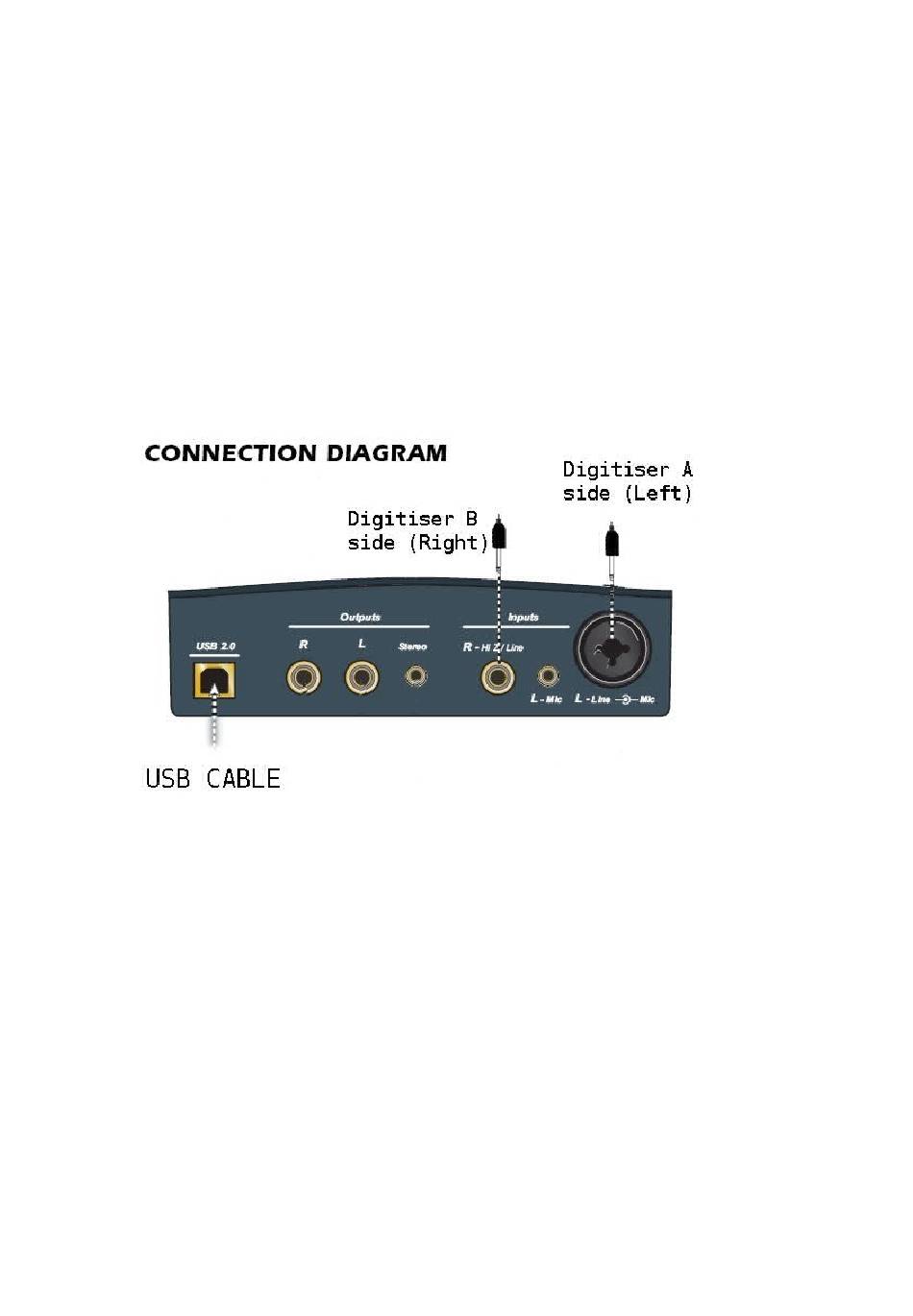

Connect the audio leads (jack plugs) to the connectors on the rear of the E-MU 0204 as shown above.
Note: On stereo Digitisers, connect the 'A L' and 'A R' cables to one of the sound cards only at this time.
