Summary of Contents for Qu-Bit Electronix Tri-ger

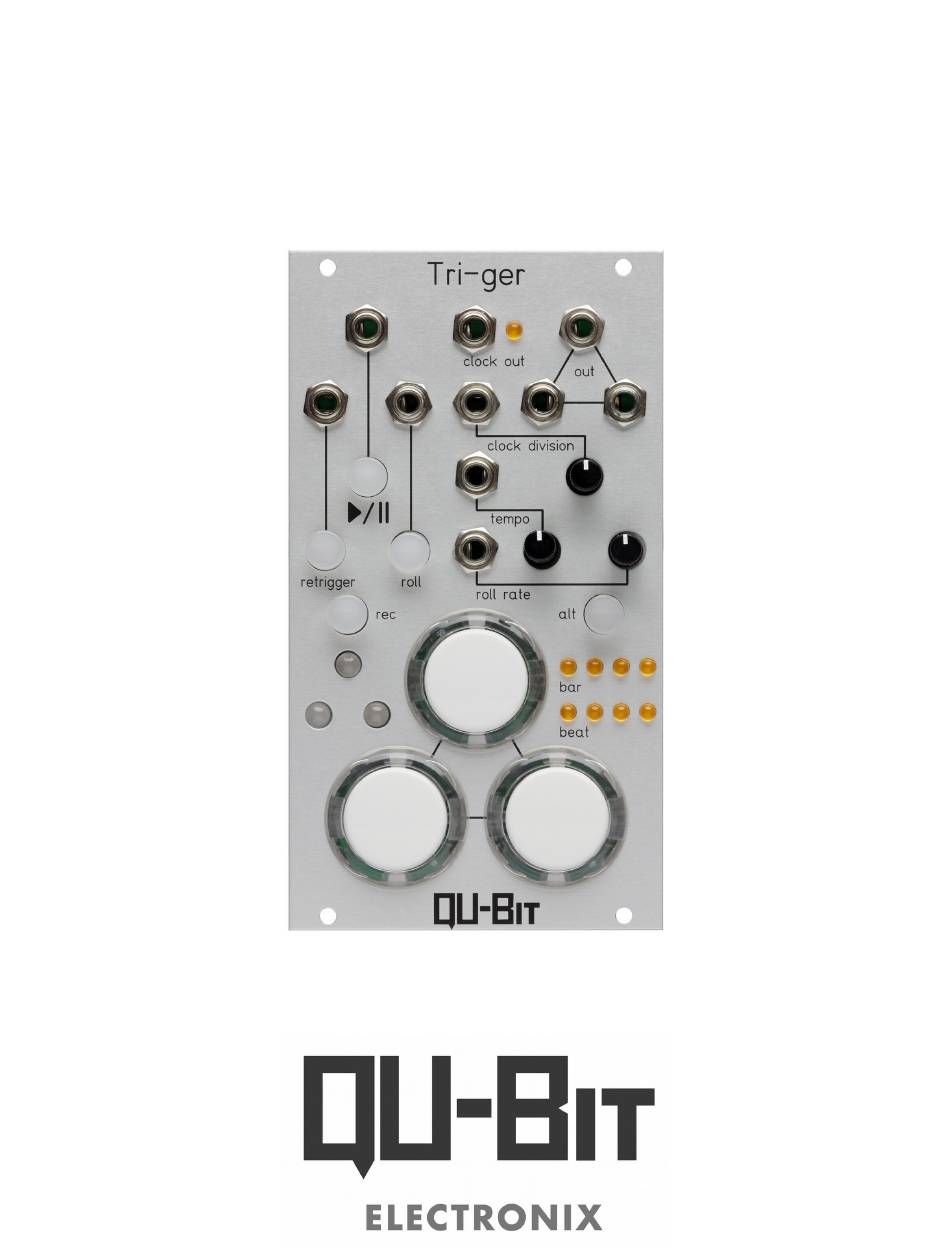

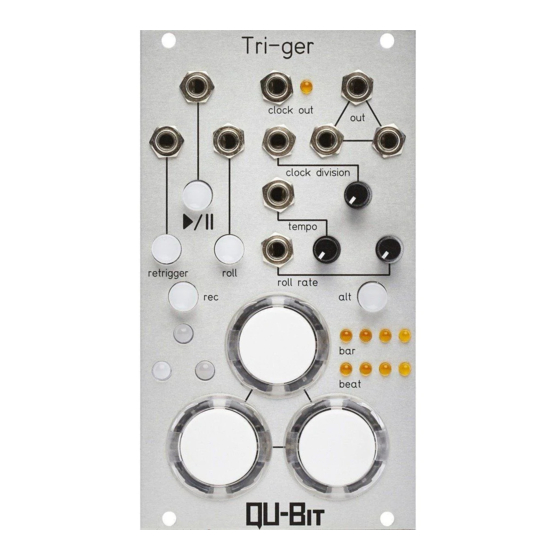

- Page 1 Tri-ger Three Channel Pattern Recorder...
- Page 2 It uses bars and beats as units of measure, providing a quick and intuitive interface for the creation, arrangement, and performance of music. The first of its kind in modular synthesis, the Tri-ger brings humanistic rhythms to the modular realm.
-
Page 3: Table Of Contents
Table of Contents Installation/Specifications Getting Started Tri-ger General Functions Overview Banks Daisy Chaining Multiple Tri-gers Factory Reset Credits... -
Page 4: Installation/Specifications
12 volts. In most systems the negative 12 volt supply line is at the bottom. The power cable should be connected to the Tri-ger with the red band facing the bottom of the module. -
Page 5: Getting Started
To record a new loop, hold down the alt button and then press the rec button. All rec/mute indicators will begin to blink red, showing that the Tri-ger is ready to record a new loop. Once the first arcade button is hit, all rec/mute indicators will stop blinking and illuminate red as the Tri-ger starts to record. -
Page 7: General Functions Overview
General Functions Overview 1a. Arcade Button 1: For recording patterns and using as a manual gate on channel 1. Pressing an arcade button will send a gate signal from its corresponding output. If the surrounding LED is illuminated, then the gate is high. If the surrounding LED is unilluminated, then the gate is low. - Page 8 9b. Retrigger Gate In: Gate input for retrigger. Threshold is 2.5V. 10a. Play/Pause: Button that, when pressed, will either play or pause the recorded pattern based on the Tri-ger's current state. 10b. Play/Pause Gate In: Gate input for play/pause. Threshold is 2.5V.
-
Page 9: Banks
4/4 time signature. Banks To access the Tri-ger's 8 banks, hold down the alt and rec buttons until all bar/beat indicators illuminate. Release buttons and a single bar/beat indicator will blink, showing which bank is currently active. -
Page 10: Daisy Chaining Multiple Tri-Gers
This allows for 3 more channels per every additional slave Tri-ger. This is done by reconfiguring jumpers and connecting a cable from the host unit to the slave unit on the back of each module. - Page 11 Chaining two Tri-gers Chaining three or more Tri-gers Note: Channel 2 on all slave units cannot be muted or roll-disabled.
-
Page 12: Factory Reset
Once the LED display has finished, release the alt and rec buttons and then power cycle the Tri-ger. If two or more Tri-gers are chained together, perform this process on the Host and all chained... -
Page 13: Credits
Huge thanks to Baseck for his support during the development of the Tri-ger. Manual written by Collin Russell www.qubitelectronix.com...
