Summary of Contents for Virtus AHB0003
- Page 1 Group Virtus roup mbH Hüserstraße 53 +49 (0) 23 81/ 973 71– 0 59075 Hamm / Germany +49 (0) 23 81/ 973 71– 88 w w w v i r t u s n e t...
-
Page 2: Table Of Contents
CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page INJECTOR CHANGE AND GAS SETTING Page GAS CONNECTION IMAGES Page SPARE PART LIST- EXPLODING DRAWING Page... -
Page 3: Ageneral Information

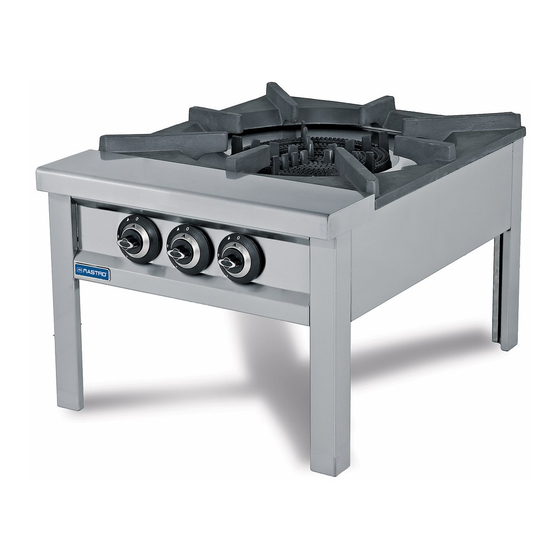

PRODUCT DESCRIPTION *The Professional Gas Stock Pot Stove,that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) AHB0003 700x800x500 720X950X585... -
Page 4: Technical Information
Product Code Model Consumption Consumption (KW) (NG) (LPG) AHB0003 Yer Ocağı 4 Yanışlı- Ventilli 3,3 m³/h TRANSPORTATION *This appliance can not be moved by hand from area to area.It must be moved on pallet with forklift truck. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless... -
Page 5: Binstallation
INSTALLATION *Please place the product to straight and sturdy ground,please take necessary steps against possibility of overturn. *Technician who will serve for installation and service for the appliance must be professional on this subject and must have installation and service licenses by the company. *Connection to Gas Fitment must be done by authorized person. -
Page 6: Csafety Instructions
SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. *Do not operate the appliance when the machine is empty. *Do not load so less or more than appliance’s capacity. -
Page 7: Doperation
OPERATION AHB0003 *Operating; • Press gas button in order to operole the appliace and ignile during pushing • After ignition keep pressing on button for a few seconds in order to heat enasgh the thermocosple Select the position aflerwords (full flame-holf flame) •... -
Page 8: Ecleaning & Maintenance
CLEANING & MAINTENANCE CLEANING AND MAINTENANCE AFTER EVERY USE Turn off the gas connection before cleaning. • • Clean the outer surface of the appliance with a wet cloth and chrome shiner. • Do not use abrasive cleaning chemicals as these can leave harmful residues. •... -
Page 9: Ftroubleshooting
TROUBLESHOOTING Check if the gas connection is done or not. If there is no gas entrance to pilot,the THE APPLIANCE DOESN’T OPERATE appliance is not operated. If the hoses that have gas entrance lose gas due to slit,hole.etc.,the appliance is not operated. -
Page 10: Ginjector Change And Gas Setting
Chage “c” injector with consideration of valve on table above .for this purpose first temove “b” inion from “d” gas inlet pipe. (Şekil 2) AHB0003 Safety valve ; In case of involuntary flame out ; “ı” safety valve will cut gas leakoge if “h” thermo doesn’t... - Page 11 0,22 50 mbar 0,20 AHB0003 BURNER INJEKTOR CHANGE ; Remove cost gril land burner top cover you can odjust gas by turning “g” ıf you turn ıt on left hand side it will increose and you can reduce by turning on right hand side .(Şekil 1) CHANGE “B”...
-
Page 12: Hgas Connection Images
GAS CONNECTION IMAGES Image Image 2... -
Page 13: Ispare Part List-Exploding Drawing
SPARE PART LIST-EXPLODING DRAWING AHB0003... - Page 14 SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE : AHB0003 NUMBER PRODUCT NAME PRODUCT CODE CHASIS Y.EMP.YRG.80.1001 FEET Y.EMP.YRG.80.1002 CAST -IRON Y.EMP.YRG.80.1003 BURNER Y.EMP.YRG.80.1004 BUTTON Y.EMP.YRG.80.1005 GAS VALVE Y.EMP.YRG.80.1006 INJECTOR GROUP Y.EMP.YRG.80.1007 THERMO GROUP Y.EMP.YRG.80.1008...
