aqua
computer
User and installation manual
User and installation manual
User and installation manual
User and installation manual
All information contained in this manual is subject to change without prior notice.
© 2020
high flow NEXT
aquasuite version X.27
Current as of October 2020
All rights reserved.
Aqua Computer GmbH & Co. KG
Gelliehäuser Str. 1, 37130 Gleichen
high flow NEXT
ENGLISH: PAGE 1
DEUTSCH: SEITE 26
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aqua Computer high flow NEXT
Summary of Contents for Aqua Computer high flow NEXT
- Page 1 DEUTSCH: SEITE 26 Current as of October 2020 All information contained in this manual is subject to change without prior notice. All rights reserved. © 2020 Aqua Computer GmbH & Co. KG - 1 - Gelliehäuser Str. 1, 37130 Gleichen...
-
Page 2: Table Of Contents
8.3. Water temperature..............13 8.4. External temperature..............13 8.5. Conductivity................13 8.6. Volume counter................14 8.7. Power measurement..............14 8.8. Software sensors.................14 9. Display configuration..............15 9.1. General display settings...............15 9.2. Diagrams...................15 - 2 - Aqua Computer GmbH & Co. KG © 2020 Gelliehäuser Str. 1, 37130 Gleichen... - Page 3 11.2. Alarm reporting and alarm limits..........18 12. Profiles..................18 12.1. Manual profile selection............18 12.2. Automatic profile selection............18 12.3. Profile configuration..............19 13. System settings high flow NEXT..........19 13.1. Device information..............19 13.2. Factory defaults................19 13.3. Basic RGBpx settings..............19 13.4. USB power supply..............19 13.5. aquabus configuration..............19 13.6.
-
Page 4: Preface

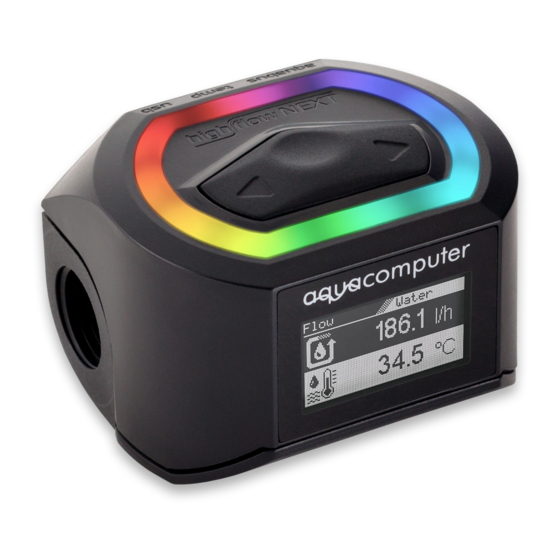

Preface Preface The high flow NEXT is a high precision USB enabled flow sensor with integrated coolant temperature sensor as well as conductivity sensor for coolant quality moni- toring. It features integrated RGBpx lighting and a connector for additional RGBpx components as well as an OLED display. -
Page 5: Connector "Aquabus
4.2. Connector “aquabus” Connector “aquabus” Connector “aquabus” Connector “aquabus” Connector for communication with other Aqua Computer devices. USB and aquabus interface can be used at the same time. Please note: Without USB connection, all RGBpx functions are deactivated! Pin assignment:... -
Page 6: Connector "Signal
Utilization as RPM signal output The header can be connected to a fan output (of a motherboard or fan controller for example) or to a flow sensor input of an Aqua Computer device, enabling monitoring flow or configured alarms by this device. Compatible interconnecting cables are optional accessories and not included in delivery. -
Page 7: Basic Operation
This symbol indicates that communication with this device is not possible at the moment. Check USB connection and power supply of the device if necessary. © 2020 Aqua Computer GmbH & Co. KG - 7 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 8: Overview Pages (Aquasuite)
The new element will be displayed in the upper left corner and the configuration window is displayed. Configure the element as described in the next chapters. - 8 - Aqua Computer GmbH & Co. KG © 2020 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 9: Editing Existing Elements
To do so, add an “User defined” element to an overview page. Switch to the “Display” tab in following dialog box, select the type of element to be © 2020 Aqua Computer GmbH & Co. KG - 9 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 10: Export And Import Of Overview
This includes data from connected USB devices as well as hardware data supplied by the Aqua Computer background service. Displayed data may be filtered using the text box next to the magnifier icon, a chart shows the develop- ment over a maximum of ten minutes. -
Page 11: Log Settings
NEXT In contrast, the “Data log” may be used to selectively and permanently store data from all connected Aqua Computer devices and hardware data supplied by the background service. Logged data can then be analyzed by creating charts or be exported to files. -
Page 12: Manual Data Export
You may then add the data sources to log by clicking the plus symbol in the “Data sources” window section. You may add an - 12 - Aqua Computer GmbH & Co. KG © 2020 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 13: Sensor Configuration
8.2. Flow rate Flow rate The second sensor in the list shows the current flow rate. The high flow NEXT comes with a set of predefined calibration curves for different hose diameters and coolants for very high accuracy. The flow rate can be displayed either in liters or gallons per hour, please see chapter 9.1. -
Page 14: Volume Counter
Prerequisite is an additional water tem- perature sensor connected to the external temperature sensor input of the high flow NEXT (e. g. item code 53219, not included in delivery). The high flow NEXT and additional water temperature sensors are optimally installed into radiator inlet and outlet port. -
Page 15: Display Configuration
Display configuration Display configuration Select “Display” from the device list below the “high flow NEXT” entry. In the upper area, basic configuration options are displayed. In the middle, the four available diagrams can be configured. In the lower area, the available screens are displayed and can be activated or deactivated. -
Page 16: Display Screens
10. RGBpx configuration RGBpx configuration RGBpx configuration RGBpx configuration Select “RGBpx” from the device list below the “high flow NEXT” entry. The integrated RGBpx lighting (10 LEDs) as well as optionally connected RGBpx products (up to 90 LEDs) can be configured. 10.1. -
Page 17: Duplicate Led Controllers
AMBIENTpx is not available while “NVIDIA G-Sync” is active. ● 11. Alarm configuration Alarm configuration Alarm configuration Alarm configuration Select “Alarms” from the device list below the “high flow NEXT” entry. © 2020 Aqua Computer GmbH & Co. KG - 17 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 18: Signal Output Configuration
Profiles Profiles Profiles Select “Profiles” from the device list below the “high flow NEXT” entry. The profile management can be used to to save four configurations as profiles and activate them manually or automatically. Profile manage- ment is a software feature of the aquasuite and requires a USB connection to the high flow NEXT. -
Page 19: Profile Configuration
USB power supply USB power supply The high flow NEXT is supplied with power through the USB connection. In default configuration, power consumption is limited to a maximum current of 0.5 Amps. This value complies with the maximum allowed current according to the USB spec- ification. -
Page 20: Standby Behavior
Standby behavior 13.6. 13.6. Standby behavior Standby behavior The standby settings determine, for which USB conditions the high flow NEXT will enter standby mode. Depending upon configuration, display, alarm evaluation and RGBpx illumination can be disabled for standby mode. 13.7. 13.7. -
Page 21: Global Profiles
Click the entry “aquasuite web” to publish data on the internet or import data from the internet. The server for this service is operated by Aqua Computer and provid- ed for use with the aquasuite, without warranty for error free operation or perma- ©... -
Page 22: Data Export
NEXT nent availability. Aqua Computer reserves the right to limit or cancel this service at any time. 15.1. 15.1. Data export Data export 15.1. 15.1. Data export Data export To publish data, create a new export data set by clicking the plus symbol in the upper right corner of the “Data export”... -
Page 23: Basic Settings (Aquasuite)
Service administration Service administration The background service configures special USB settings for all connected Aqua Computer devices, provides hardware data, software sensors, pro- file management and aquasuite web and should therefore always be ac- tive. The hardware monitoring features of the background service can be disabled for specific categories if errors occur. -
Page 24: Updates And Update Service
“Register key” button, the update service period is permanently assigned to the selected device and stored on the Aqua Computer update server. The key will not have to be re-entered after re-installation of the software or transfer of the de- vice to another computer, but transferring the update service period to another de- vice is not possible. -
Page 25: Technical Details And Care Instructions
24/7. To get in direct contact with our customer support team, we offer several options: Email: support@aqua-computer.de Postal address: Aqua Computer GmbH & Co. KG Gelliehäuser Str. 1 37130 Gleichen Germany Tel: +49 (0) 5508 9749290 (9-16 h CET, German and English language) ©...
