ESI ES700B Manual

ESI ES700B Manual

Self contained mobile industrial heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.esialaska.com
For Parts & Service:
Fairbanks, Alaska
907.458.9049
FAI-Parts@ESIalaska.com
Anchorage, Alaska
907.341.2250
ANC-Parts@ESIalaska.com
Seattle, Washington
425.251.6119
FAI-Parts@ESIalaska.com
Williston, North Dakota
701.774.5312
Williston-Sales@ESIalaska.com
Copyright © 2019 Equipment Source Inc
Anchorage:
7780 Old Seward Hwy
Anchorage, AK 99518
(907) 341-2250 | (877) 341-2250
Fairbanks:
1919 Van Horn Road
Fairbanks, AK 99701
(907) 458-9049 | (888) 868-9049
Equipment Source, Inc.

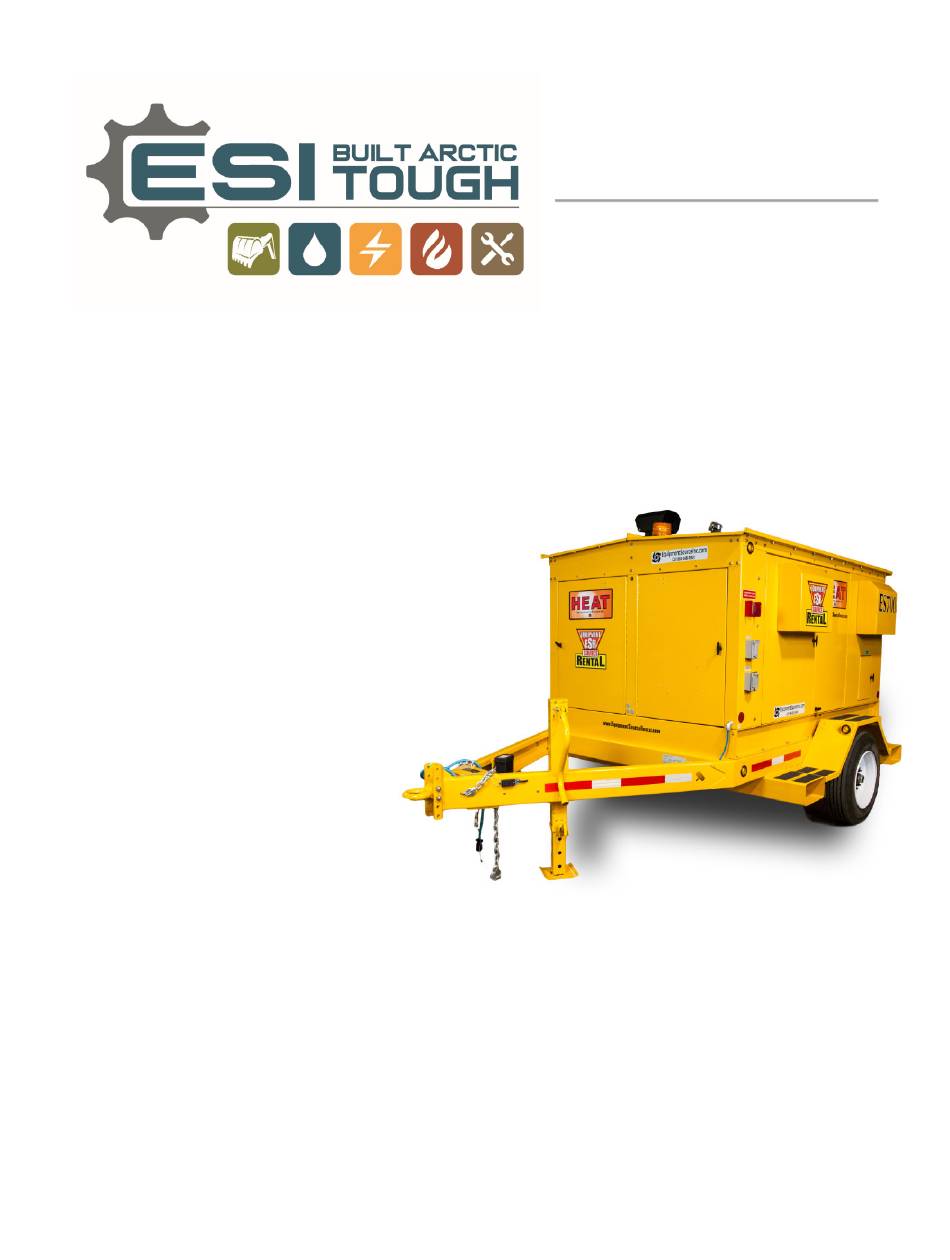

MANUAL
ES700B
Self contained
Mobile industrial
heater
Seattle:
17660 W. Valley Hwy
Tukwilla, WA 98188
(425) 251-6119
Williston:
5064 Bennett Loop
Williston, ND 58801
(701) 774-5312

Advertisement

Table of Contents
loading

Summary of Contents for ESI ES700B

  • Page 1 MANUAL ES700B Self contained Mobile industrial heater www.esialaska.com For Parts & Service: Fairbanks, Alaska 907.458.9049 FAI-Parts@ESIalaska.com Anchorage, Alaska 907.341.2250 ANC-Parts@ESIalaska.com Seattle, Washington 425.251.6119 FAI-Parts@ESIalaska.com Williston, North Dakota 701.774.5312 Williston-Sales@ESIalaska.com Copyright © 2019 Equipment Source Inc Anchorage: Fairbanks: Seattle: Williston: 7780 Old Seward Hwy 1919 Van Horn Road 17660 W.
  • Page 2 Specifications: MANUAL - ES700B Specifications Dry weight: ....................4600 LB [2090 KG] With skid 101590 ................5050 [2290] With trailer 101159 ................5950 [2700] Firing Rate: Standard ................. 4.3 GPH [16.3 LPH] Minimum ................. 3.0 GPH [11.4 LPH] Maximum ................5.5 GPH [20.8 LPH] Fuel Type: ES700B ......................

  • Page 3: Introduction

    Read and understand this manual before attempting to operate this machine. General Description The ES700B is an indirect oil-fired forced-air heater with a maximum firing rate of approximately 770,000 BTUs/hour. The heater is intended for outdoor use and can be mounted on a trailer or skid mounted for jobsite portability.
  • Page 4 No person, agent or dealer is authorized to give any manual for required installation procedures. warranties on the behalf of ESI, nor is to assume for this 9. Installation of electrical components by anyone company any other liability in connection with any of other than a licensed electrician voids the warranty.
  • Page 5 Read and understand carefully all components of the to the repair or replacement of defective parts. IN NO Operator’s Manual prior to starting or operating the EVENT WILL ESI BE LIABLE FOR LOSS OF USE, LOSS OF unit. PROFITS, LOSS OF OR DAMAGE TO OTHER PROPERTY, •...
  • Page 6 UL listed components and to UL listed standards as well as CSA standards. ESI heaters have a long history of safe reliable use on construction sites, DOD facilities, oil and gas fields and other facilities. ESI heaters have a clean safety record with no reports of major safety incidents.

  • Page 7: Table Of Contents

    Table of Contents MANUAL - ES700B Table of Contents Introduction ........................3 General Description ........................3 Manual Applicability ........................3 Manual Scope ..........................3 Safety Guidelines ......................8 Training ............................8 Operating ............................8 Service ............................8 Transporting and Storage ....................9 Dimensions and Weights ......................

  • Page 8: Safety Guidelines

    Safety Guidelines MANUAL - ES700B 2 Safety Guidelines WARNING (RISK OF DEATH OR SERIOUS INJURY) Never attempt to operate this machine indoors. Exhaust fumes from the engine and heater can kill. • Read and understand the operating instructions in this manual before attempting to operate this •...

  • Page 9: Transporting And Storage

    Transporting and Storage MANUAL - ES700B 3 Transporting and Storage 3.1 Dimensions and Weights Machine Weights *: Dry ............ 4600 LB [2090 KG] With skid 101590 ........5050 [2290] With trailer 101159 ........5950 [2700] Trailer 101159 GVW ........7800 [3350] Trailer 101159 Max Tongue ......
  • Page 10 Transporting and Storage MANUAL - ES700B Figure 2. Machine dimensions mounted on Trailer PN 101159. Dimensions are in inches [meters] unless noted. Rev November 2019 Copyright © 2019 Equipment Source Inc. Page 10 of 30...

  • Page 11: Lifting

    Transporting and Storage MANUAL - ES700B 3.2 Lifting Use an appropriately sized forklift to lift the machine using the provided fork pockets.  A single-point lifting bale is provided on the top of the enclosure for crane hoisting. Use rigging ...

  • Page 12: Storage

    Transporting and Storage MANUAL - ES700B 3.4 Storage CAUTION Failure to follow the shutdown procedure can cause serious damage to the burner assembly. 3.4.1 Short-Term Storage (less than 90 days) 1. Shutdown the machine using the shutdown procedure (Section 4.8 Shutdown) 2.

  • Page 13: Operation

    4.1.1 General Guidelines The ES700B heater is an outdoor heater designed to safely heat enclosures using flexible duct connections. For efficient operation, keep duct lengths as short as possible. Excessive duct lengths will reduce air flow in the heat exchanger and cause the burner to cycle to control the outlet temperature.

  • Page 14: Recommended Fuels And Fueling Instructions

    4.2.1 ES700B-ED (aux tank equipped machine) Refueling Instructions The ES700B-ED model has an auxiliary fuel tank for the engine. This allows locally approved heating oil to be used in the burner and ULSD fuel for the engine. Observe machine placards for fuel types and placement.

  • Page 15: Pre-Startup Checklist

    Operation MANUAL - ES700B 4.5 Pre-Startup Checklist Use the following checklist to determine whether the machine can be safely started and operated: 1. Heater is level and on stable ground (per Section 4.4) 2. Wheels are chocked 3. Exhaust vents are free of obstruction 4.

  • Page 16: Shutdown

    4.9.1 Standard Firing Rate A new ES700B series heater comes equipped with a 3.5 GPH nozzle. The fuel pressure on a new machine is tuned to 150 PSI resulting in a 4.3 GPH firing rate. 4.9.2 Maximum Firing Rate Nozzles rated up to 4.5 GPH @ 100 PSI and pressures up to 150 PSI can be safely used if additional heat...

  • Page 17: Auxiliary Power Connection

    Operation MANUAL - ES700B Table 1. Nozzle Capacity Chart Rate Operating Pressure (PSI) GPM @ 100 PSI 3.35 3.55 3.67 3.91 4.14 4.29 4.47 4.73 4.90 5.04 5.32 5.51 Figure 5. Burner pressure control 4.10 Auxiliary Power Connection All machine models are equipped with a 120V, 20A, 60Hz auxiliary (AUX) GFCI receptacle. The AUX power connection can be used to run work lights and tools as needed on a construction site while the heater is operating.

  • Page 18: Maintenance

    Engine oil must meet API Spec: CF, CF-  Change engine fan belt 4, CG-4, CH-4 or CI-4  Change heater fan belt(s) Oil Capacity: 12 GAL [45 L] (ES700B-E_)   Lubricate fan pill block and Use Lithium NGLI Grade 2 for fan pill ...

  • Page 19: Engine Service

    Maintenance MANUAL - ES700B 5.2 Common parts Generator Size Engine Make Kubota Engine Model D1105 Oil Filter (Engine) 2ea 16121-32430 (3,000 hrs) Oil Capacity 10w30 8 Gal (3,000 hrs) Air Filter (Engine) 15741-11083 (3,000 hrs) Engine Fuel Filters 15221-43170 (1,000 hrs)

  • Page 20: Burner Maintenance

    Maintenance MANUAL - ES700B 5.4.3 Cleaning/Deicing Inlet Screen WARNING Do not attempt to open blower inlet access unless the machine is completely shut down and cooled The blower fan inlet should be periodically checked for icing when operated in winter conditions. If necessary, remove the four (4) bolts (A) required to access the blower inlet to clear ice.

  • Page 21: Basic Trouble Shooting

    Use the following troubleshooting guidelines to resolve problems that may encountered while operating the ES700B heater. Contact your service representative or refer to the attached operations manual specific to the burner, engine or fan if the problem cannot be resolved using this guide.
  • Page 22 Basic Trouble Shooting MANUAL - ES700B Figure 7. Burner and Safety Controls Figure 8. Outlet Air Temperature Control Rev November 2019 Copyright © 2019 Equipment Source Inc. Page 22 of 30...

  • Page 23: Fan Trouble Shooting

    Basic Trouble Shooting MANUAL - ES700B Table 4. Burner Trouble Shooting Guide Problem Solution Burner cycling (frequently Check for flow restrictions in the inlet or outlet ducts  starting and stopping during Reduce duct lengths or increase duct diameters ...

  • Page 24: Engine Trouble Shooting

    Basic Trouble Shooting MANUAL - ES700B 6.3 Engine Trouble Shooting Table 6. Engine Trouble Shooting Guide Problem Solution Engine controller fails (no low Check position of battery main disconnect  oil pressure light when the key Check condition of battery ...
  • Page 25 Basic Trouble Shooting MANUAL - ES700B 12V cooling fan failed If control panel is functioning, check 30A breaker on the engine  (Fan fails to engage when the control panel. enclosure temperature is over If the engine control panel fails to start, see “Engine controller ...

  • Page 26: Electrical Schematics

    Electrical Schematics MANUAL - ES700B 7 Electrical Schematics Figure 9. ES700B Power Wiring Rev November 2019 Copyright © 2019 Equipment Source Inc. Page 26 of 30...
  • Page 27 Electrical Schematics MANUAL - ES700B Figure 10. 12V Engine Control Schematic Rev November 2019 Copyright © 2019 Equipment Source Inc. Page 27 of 30...

  • Page 28: Maintenance Records

    Maintenance Records MANUAL - ES700B 8 Maintenance Records Table 7. Machine Data Machine Serial Number Engine Serial Number Generator Serial Number Trailer Serial Number Table 8. Maintenance Records Date  Engine Hours  Description of work completed Service Personnel ...
  • Page 29 Maintenance Records MANUAL - ES700B Rev November 2019 Copyright © 2019 Equipment Source Inc. Page 29 of 30...
  • Page 30 MANUAL - ES700B Rev November 2019 Copyright © 2019 Equipment Source Inc. Page 30 of 30...
