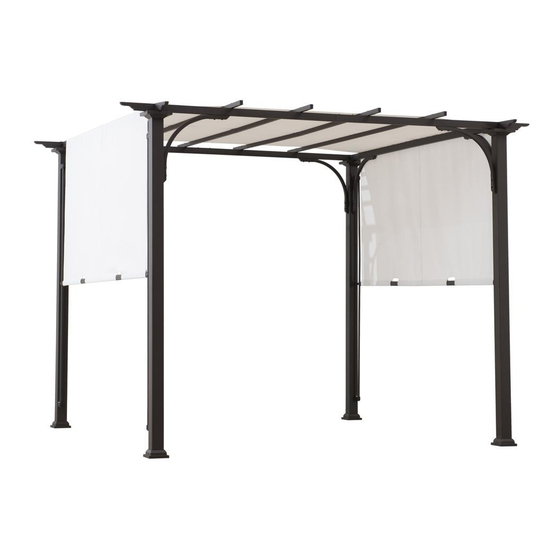

- Page 1 ITEM NO.： A106005500 WE HAVE YOU IN MIND, LET US SERVE YOU! Questions? Issues? ...
- Page 2 2 / 8 Parts List P000601290 Top beam 1 P000601291 Top beam 2 P000400852 Long side beam1 P000400853 Long side beam2 Short side beam P000400854 Short side beam P000400855 2 Conner P000300083 P005600295 Decorate tube P000200445 Post 1 P000200446 Post 2 P000100313 Stake P006100161 Stake cover P005000392 Arc support P005700630 Rail connector P000501118 Rail beam P005700631 Canopy rod 1 P005700632 Canopy rod 2 Country of Origin: China...
- Page 3 3 / 8 P001100520 Canopy Hardware Pack 1 16PCS H010110016 M6 * 15 Bolt 52PCS H050010023 M6 Flat Washer H010020012 M6 * 20 Bolt 36PCS H090010009 M6 Wrench 1 PCS Step.1 Fig.3 Fig.4 Fig.2 Fig.1 Country of Origin: China...
- Page 4 4 / 8 Fig.3 Fig.2 Fig.1 E1/E2 Fig.4-2 Fig.4-1 Fig.4-3 B2/B3 B2/B3 B4/B5 E1/E2 Fig.1‐1: Put the stake cover（H1）through the post (E1/E2), up the stake cover (H1), then attach stake (G1) to post（E1/E2） bottom，fasten by using bolt（AA）and washer（BB）. Fig.2: Attach long side beam 1（B2）to long side beam2（B3）, By using bolt（CC）and washer（BB）. Fig.3: Attach short side beam 1（B4）to short side beam2（B5）,by using bolt（CC）and washer（BB）. Fig.4‐1: Attach corner（C1）to top of post （E1/E2）. Short Fig.4‐2:Attached side beam（B4/B5）to long side beam（B2/B3），then fix by using bolt（CC）and washer（BB）. onto the hoist hole of crossbeam(B2/B3) and fix it Fig.4‐3:Install the nitrate of decorative pipe(D) with bolt (CC) through gasket(BB) Hardware Pack 2...
- Page 5 5 /8 Fig.6 Fig.5 Fig.7 B4/B5 A1/A2 B2/B3 Fig.5: Attach top beam 1（A1）to top beam 2（A2）, fix by using bolt（CC）and washer（BB）. Fig.6: Fix assembled top beam1/ beam2 (A1/A2) to assembled long side beam1/ long side beam1（B2/B3）,by using bolt（DD）and washer (BB). Fig.7: Attach top beam 1/ top beam 1（A1/A2）to short side beam1/ short side beam2（B4/B5）,by using bolt （DD）and washer（BB）. Hardware Pack 3 4 PCS H050010023 M6 Flat Washer H010020011 8 PCS M6 * 75 Bolt 8 PCS H070010008 Φ6*230 floor stake H010020014 M6 * 10 Bolt 4 PCS Step.3 Fig.10-2...
- Page 6 6 / 8 Fig.8 Fig.9 M1/M2 M1/M2 Fig.8: Attach canopy rod 1（M1）to t canopy rod 2（M2）, fix by using bolt（GG）and washer（BB）. Fig.9:Lay the canopy（O1）on the tent and pass the canopy rod 1/ canopy rod 1（M1/M2）through the canopy （O1）as showm. Fig.11 Fig.10-1 Fig.10-1 M1/M2 E1/E2 E1/E2 E1/E2 Fig.10‐1:First,insert the canopy rod 1/ canopy rod 1 （M1/M2） into the rail beam （N1） ,then insert the rail beam （N1）into the rail connector（L1）, finally lock rail beam（N1）、connector（L1）and post（E1/E2）,by using bolt（EE）. Fig.10‐2: lock rail beam（N1）、connector（L1）and post（E1/E2）by using bolt（EE）. Fig.11: Fix the assembled gazebo on ground by using floor stake(FF). Country of Origin: China...
- Page 7 7 / 8 Fig.12:Push the spring buckle on the Rail beam (N1) and Fig.12 pull the hole of Canopy rod 1(M1) and Canopy rod 2 (M2) underneath the spring buckle. So the fabric tubes will not move up. M1/M2 M1/M2 Country of Origin: China...
- Page 8 To minimize this condition, we recommend care when assembling & handling the product to prevent scratching the paint. Should any scratching or damage occur, we recommend immediate touch‐up with rust inhibiting paint. Surface rust can also be easily removed with a very light application of common cooking oil. If surface oxidation (rusting) occurs and if no measure is taken to prevent this, the oxidation may start dripping on to deck or patio and caused damaging stains, which may be difficult to remove. This can be prevented if the above‐mentioned measures are taken to keep the product from oxidizing. Use damp cloth to wipe off the stains as quickly as possible. If necessary, wash with a mild solution of soap and water; rinse thoroughly and dry completely. Periodically check and ensure that all bolts are well‐tighten during use Limited Manufacturer’s Warranty Sunjoy Group warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of 1 year from the date of purchase, provided the item was factory‐sealed at the time of purchase and is maintained with care and used only for personal, residential purposes. Should any manufacturing defect arise within this warranty period, Sunjoy Group will replace (at our option) any defective merchandise or parts upon proof of purchase; however, transportation and delivery costs, as well as payments to a third party for assembly or disassembly of the item, remain the responsibility of the purchaser. A purchaser of an "open box," previously‐returned, or "clearance" item, as well as original purchasers outside of the warranty period, may obtain replacement parts from Sunjoy Group for products in current production, at nominal cost. Exclusions: Items used for commercial, contract, or other non‐residential purposes, or items damaged due to acts of nature, vandalism, misuse, or improper assembly are not covered. Corrosion or rusting of hardware is not covered. Proof of purchase (dated register receipt) is required for warranty claims. Warranty is to the original purchaser and is non‐transferable. Any replacement of warranted items will be in the original style and color, or a similar style and color if the original is unavailable or has been discontinued. As some states do not allow exclusions or limitations on an implied warranty, the above exclusions and limitations may not apply. This warranty gives you specific rights, and you may also have other rights, which vary from state to state. Country of Origin: China...
