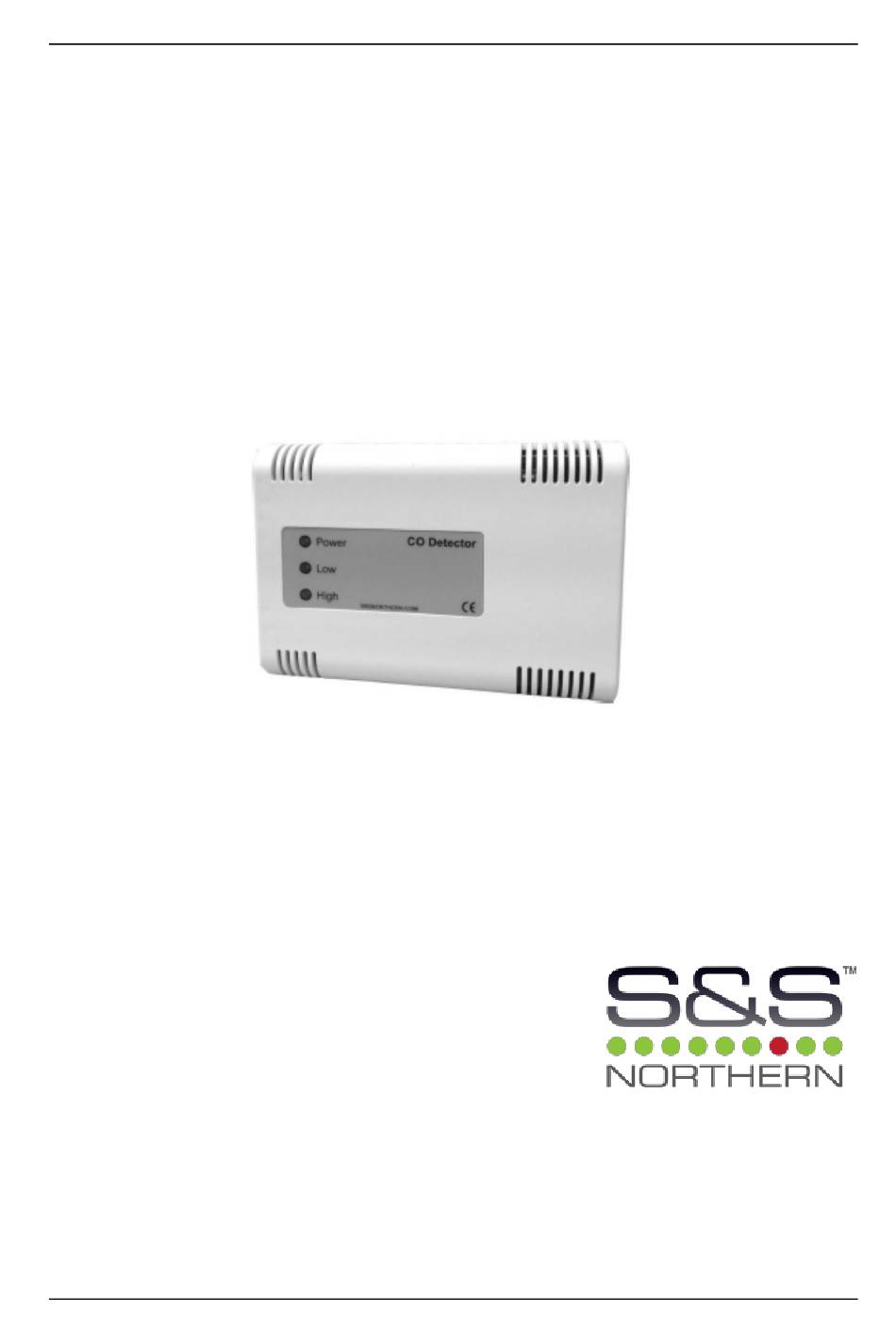

- Page 1 Merlin Gas Detectors Product Data Sheet Gas Safety Products Merlin Gas Detectors Installation, operating and maintenance Read these instructions carefully before operating or servicing Rev: 09 Date: 19-01-18...
-
Page 2: Table Of Contents
Merlin Gas Detectors Product Data Sheet The unit should be installed by a competent person only. The expected life time of the detector/sensor element is: LPG, NG and Hydrogen = 10 years. CO = 5 years. The unit should be stored in cool, dry conditions. We do recommend that this product is serviced annually. -
Page 3: General Information

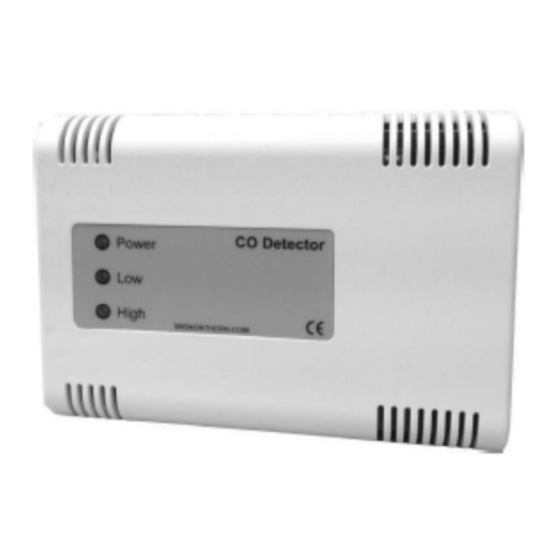

Merlin Gas Detectors Product Data Sheet General information S&S Northern supply a full range of remote gas detectors to compliment the Merlin range of panels. These consist of carbon monoxide, natural gas, LPG and oxygen detectors. Our range of gas detectors are designed to work with a Merlin control panel. Installation Mounting the Merlin gas detector The control panel is designed for surface mounting using two mounting screws. -
Page 4: Specification
Merlin Gas Detectors Product Data Sheet Technical Specification Power supply 7-30VDC, 80mA max Gas Sensor Semiconductor type sensor 300-10000 ppm Methane 300-10000 ppm LPG Typical measuring range 10-10000 ppm CO 100-10000 ppm Hydrogen Power Up - warm up time 1 minute Methane 8%LEL by volume LPG 0.16% by volume Low level alarm... -
Page 5: Wiring Diagram
Merlin Gas Detectors Product Data Sheet Wiring Diagram Power supply, positive connection from Merlin panel. Power supply, negative connection from Merlin panel. Alarm relay, alarm signal to GDP panel. Alarm relay, volt free connection. Normally closed. Alarm relay, volt free connection. Common. Alarm relay, volt free connection. - Page 6 Merlin Gas Detectors Product Data Sheet INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT When this product has reached the end of its life it must be treated as Waste Electrical & Electronics Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
