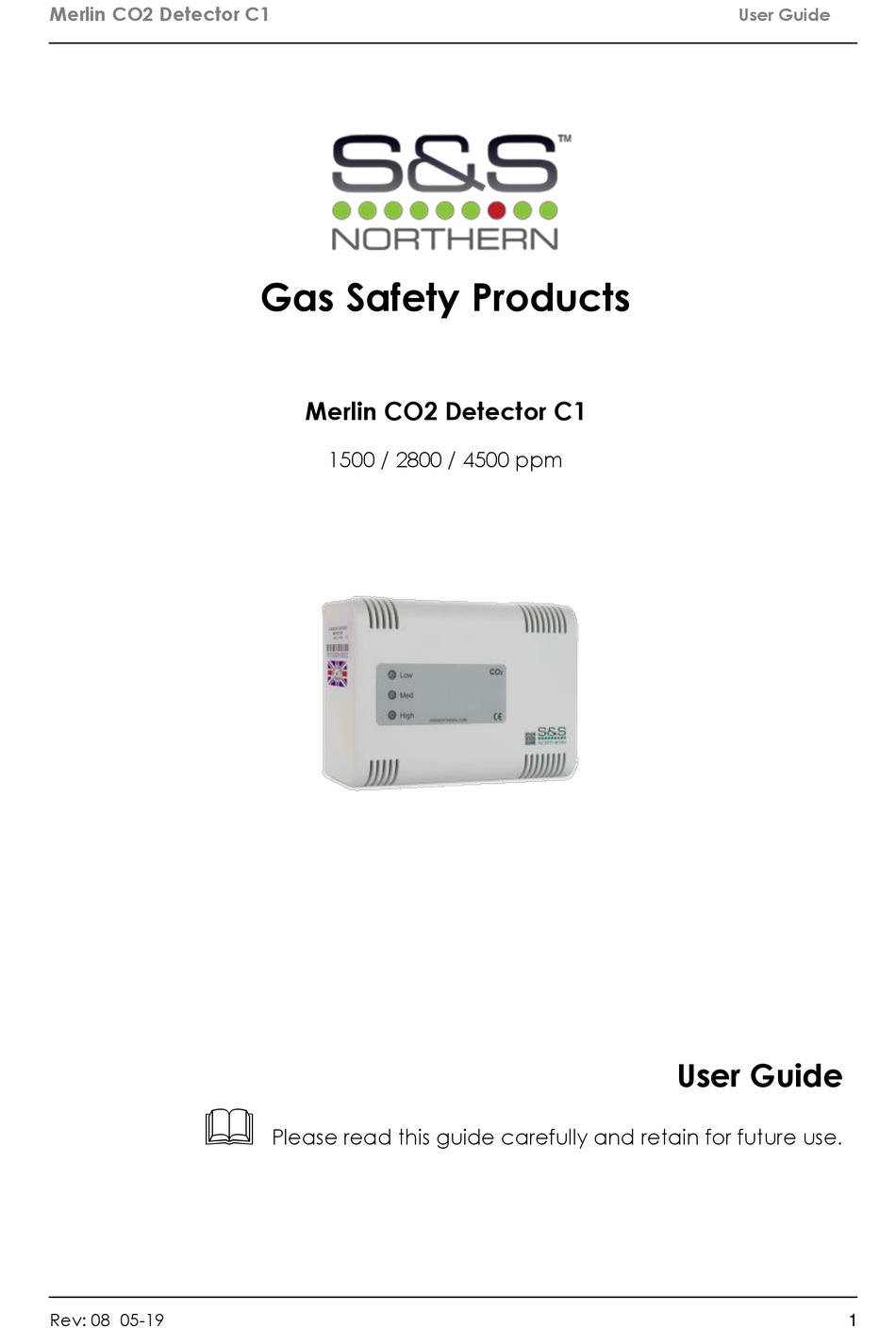

- Page 1 Merlin CO2 Detector C1 User Guide Gas Safety Products Merlin CO2 Detector C1 1500 / 2800 / 4500 ppm User Guide Please read this guide carefully and retain for future use. Rev: 08 05-19...
-
Page 2: Table Of Contents
Merlin CO2 Detector C1 User Guide Table of contents General Information ..................3 Mounting the CO2 detector ..................3 Installation ......................4 Mains Supply ......................... 4 Alarm Relay ........................4 LED Indication Status ..................4 Specifications ....................5 Circuit Board ...................... 5 Maintenance ..................... -
Page 3: General Information
Merlin CO2 Detector C1 User Guide General Information The Merlin CO2 detector has a traffic light colour system indicating the carbon dioxide levels in the area. The Merlin CO2 detector can be used independently or can work in conjunction with one of our Merlin gas control systems. -
Page 4: Installation
Merlin CO2 Detector C1 User Guide Installation Mains Supply A 230-volt electrical supply should be supplied to the panel. This should be externally fused at 3 Amps using a fused spur and should be connected to the terminals marked [LN Power]. Alarm Relay This will switch over should the level of Co2 rise above the specified concentration –... -
Page 5: Specifications
Merlin CO2 Detector C1 User Guide Specifications Power Supply 230VAC, 50-60Hz (Max 2VA) Carbon Dioxide: Non-Dispersive Infrared Detector (NDIR) Gas Sensor ABC Logic Self Calibration CO2 Measuring Range 0-5000ppm (Resolution: 1ppm) Accuracy @ 25°C (77°F) ±100ppm +6% Reading Warm Up time 1 Minute Model: 1500ppm 230VAC 1A, 30VDC 2A Switching Current (resistive load) -
Page 6: Maintenance
Merlin CO2 Detector C1 User Guide Maintenance To keep your device in good working order, you must follow these steps: DO carefully remove any accumulated dust from the outer enclosure once a month. NEVER use detergents or solvents to clean your device – this may permenantly or temporarily ... - Page 7 Merlin CO2 Detector C1 User Guide Rev: 08 05-19...
-
Page 8: Manufacturer's Warranty
Merlin CO2 Detector C1 User Guide Manufacturer’s Warranty 3 Year Limited Warranty Warranty coverage: The manufacturer warrants to the original consumer purchaser, that this product will be free of defects in material and workmanship for a period of three (3) years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product with repaired product at the discretion of the manufacture.
