Emcotec RC Electronic SPS-RCS Quick Start Manual

Remote controlled on-/off switch for the
SPS SafetyPowerSwitch
The SPS-RCS (Remote Control Switch) is a remote
control module for the SPS SafetyPowerSwitch. The SPS
SafetyPowerSwitch can now be turned on and off using a
free receiver channel.
Caution: The SPS-RCS module is an extension for the
EMCOTEC SPS SafetyPowerSwitch and is only usable
with that.
Waldstr. 21 Tel.: +49 (0) 8234 / 95 98 9 - 50
D-86517 Wehringen Fax: +49 (0) 8234 / 95 98 9 - 59
E-Mail: info@rc-electronic.com
Safety and warning hints
Please make sure you only turn off the SPS-
RCS when the motor is stopped. When turned off
with motor running, the motor controller can be
destroyed under certain circumstances.
Programming of the SPS-RCS should only take place with
the motor controller disconnected or without any motor at
all. This prevents undesired running of the motor.
If deactivation by failsafe is disabled for the SPS-RCS,
the SPS SafetyPowerSwitch can only be turned off by the
switch of the radio control, see additional information in
Explaining failsafe deactivation.
Quick reference
The SPS-RCS is a remotely controlled electronic on-/off
switch for turning on or off the SPS SafetyPowerSwitch.
If desired the SPS SafetyPowerSwitch can be activated
and deactivated by the SPS-RCS in addition to the SPS
magnetic switch actuator (item no. A72020) or the SPS pin
switch actuator (itme no. A72025).
Mounting instructions
The PCB (Printed Circuit Board) of the SPS-RCS can be
mounted onto an appropriate surface using hook-and-loop
tape or double sided adhesive tape.
Specifications
Dimensions 42 x 14 x 9mm (1.65 x 0.55 x 0.35in)
Weight 6.4g (0.23oz)
Warranty 24 months
Connecting
Connect the SPS SafetyPowerSwitches at the socket „SPS"
of the SPS-RCS. Connect socket „RECEIVER" to a free
receiver channel.
Optionally connect a SPS magnetic switch actuator or a
SPS pin switch actuator at socket „ext. Switch", so the SPS
SafetyPowerSwitch can be activated or deactivated with the
magnet or pin (see picture 2 page 2).
Please notice the color code on the top side of the SPS-
RCS when connecting the SPS SafetyPowerSwitch (see
picture 1).

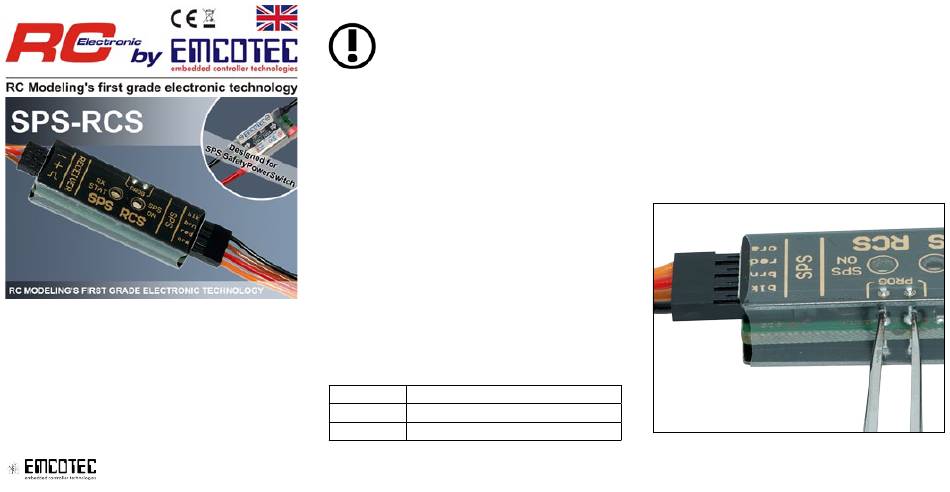

Picture 1 - Programming contacts (short circuit bridge)
