OceanLED
This installation/operation manual covers the following products:
Amphibian
Xtreme lights
A4 / A8 / A16

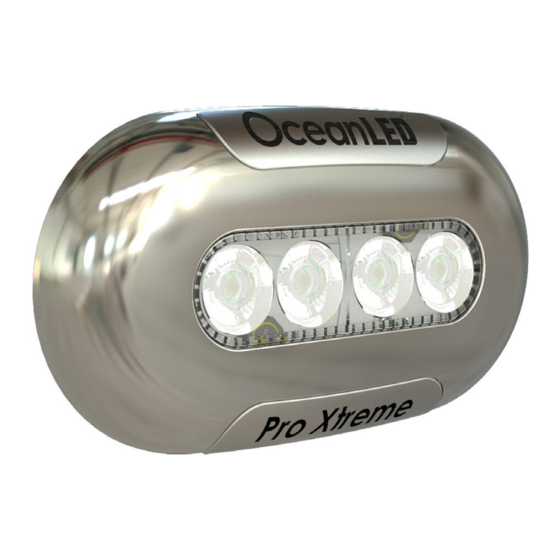

Amphibian Xtreme Light
OceanLED reserve the right to change this document without notice.
AMPHIBIAN XTREME SERIES
Kit Includes
Bezel(s) Pro light
contains 2 bezels
Amphibian
Pro Xtreme lights
(*including colours)
A4PRO / A8PRO* / A16PRO*
Mounting Screws and
Mounting Template
OceanLED Marine
Product Support
AMPHIBIAN
XTREME SERIES
MANUAL
Fuse Kit
Advertisement
Table of Contents
Related Manuals for Oceanled AMPHIBIAN XTREME Series
Summary of Contents for Oceanled AMPHIBIAN XTREME Series
- Page 1 (*including colours) A4 / A8 / A16 A4PRO / A8PRO* / A16PRO* Kit Includes Bezel(s) Pro light Mounting Screws and Amphibian Xtreme Light Fuse Kit contains 2 bezels Mounting Template OceanLED reserve the right to change this document without notice.
- Page 2 IMPORTANT Please read the instructions completely before proceeding with the installation. These instructions supersede any other pre dated instructions if they differ. Chapter 1 ........................................4 An overview of the underwater light installation. It includes sections on unpacking and inspecting the components, selecting the mounting site and a description of how best to make the cable runs.
-
Page 3: Important Precautions
Failure to follow safety warnings and instructions can result in property damage, severe injury, or even death. WARNING: Before installing your OceanLED light, check local laws for restrictions regarding the use of colored lights in your area. WARNING: Salt is an inherently corrosive material. -
Page 4: Chapter 1: Overview
Chapter 1: Overview CHAPTER This handbook provides instructions to assist you in the installation and set up of the Amphibian Xtreme lights from OceanLED. 1.1 Identifying your model A4PRO A8PRO/Colours A16PRO/Colours 1.2 DC power / fuse ratings The majority of installations will utilize onboard 12/24v DC power supply from a marine battery. However,... -
Page 5: Optional Extras
1.4 Optional extras (Not available in all countries. Contact your local OceanLED representative for more information) REMOTE - • The remote system allows you to control up to 4 OceanLED lights per receiver (multiple receivers can be used to control more lights) on your boat from a distance of up to 100 yards away. The remote system can... - Page 6 1.6 Finding the mounting location - OUT OF WATER For use with Amphibian Xtreme series only. (Amphibian Pro Xtreme Series for underwater use only.) Design - •...
-
Page 7: Chapter 2: Installation
WARNING: There are several different hull types. Most are either solid GRP or cored. Be sure you follow the correct procedures for the hull you are preparing since all require different preparation methods. We will cover the most common type below. If in doubt please contact your local OceanLED representative or the boat manufacturer for assistance. WARNING: Please check all components prior to installation. -
Page 8: Installing The Light Fixture
Use a suitable marine sealant such as 3M™ Marine Adhesive Sealant Fast Cure 4200FS. When applying sealant to light fixture, use the OceanLED packaging material as a cushion when placing light on the ground face down to prevent lens damage. - Page 9 To ensure correct dispersion of light underwater, ensure all Amphibian Xtremes are mounted with the correct orientation with text facing upwards. (see figure 1.2) ↑ Fig.2.3 TIP: During/after fitting process, ensure cable is not under any undue stress. Fig.2.4 We recommend you only use the mounting screws provided. If alternative screws are used, do not use counter sunk or non flat shoulder screws.
- Page 10 PLEASE NOTE - Corrosion of wire, and/or water ingress into the light unit via the cable is NOT covered under warranty. If you are not installing a custom fuse panel, it is imperative that the OceanLED supplied fuse is installed on each power line from each light. Please consult electrical specification on page 4 to select the correct fuse dependant on which model of light you have.
- Page 11 Always test the lights BEFORE the boat goes back into the water. Failure to test prior to launch may require boat to re hauled out. At this final stage make sure all of the system is operational (see chapter 3 for operating instructions). If you have any issues, please contact your local OceanLED representative. WARNING: Never install a new light and leave the boat in the water unchecked for several days.
-
Page 12: Chapter 3: Operation
2 seconds, then re-enter cycle mode to re-select the color. 3.3 - Diagnostic LEDs The Amphibian Xtreme series is fitted with an advanced diagnostic indicator system. There are two small indicator LEDs (one red, one orange) within the unit, visible through the front lens. -
Page 13: Chapter 4: Maintenance And Troubleshooting
Lost, broken, and worn parts can be replaced on request and can be obtained through your local OceanLED representative. If the external flexible cable of this unit is damaged, contact your local OceanLED representative to arrange for replacement (cable must only be replaced by OceanLED, service agent or a similar qualified person). - Page 14 Check cable to make sure there is no damage to Light will require This is not covered by the the cable. (If cable is damaged, it must only be replacing. warranty. replaced by OceanLED, service agent or similar qualified person).
- Page 15 4.4 - Diagnostic LEDs The Amphibian Xtreme series is fitted with an advanced diagnostic indicator system. There are two small indicator LEDs (one red, one orange) within the unit, visible through the front lens. When the unit is first turned on, both LED’s will flash briefly. This is normal operation and is part of the start-up procedure, to show that the LEDs are functioning.
