Rickard MLM Installation

Rickard MLM Installation

Wireless wall thermostat

Advertisement

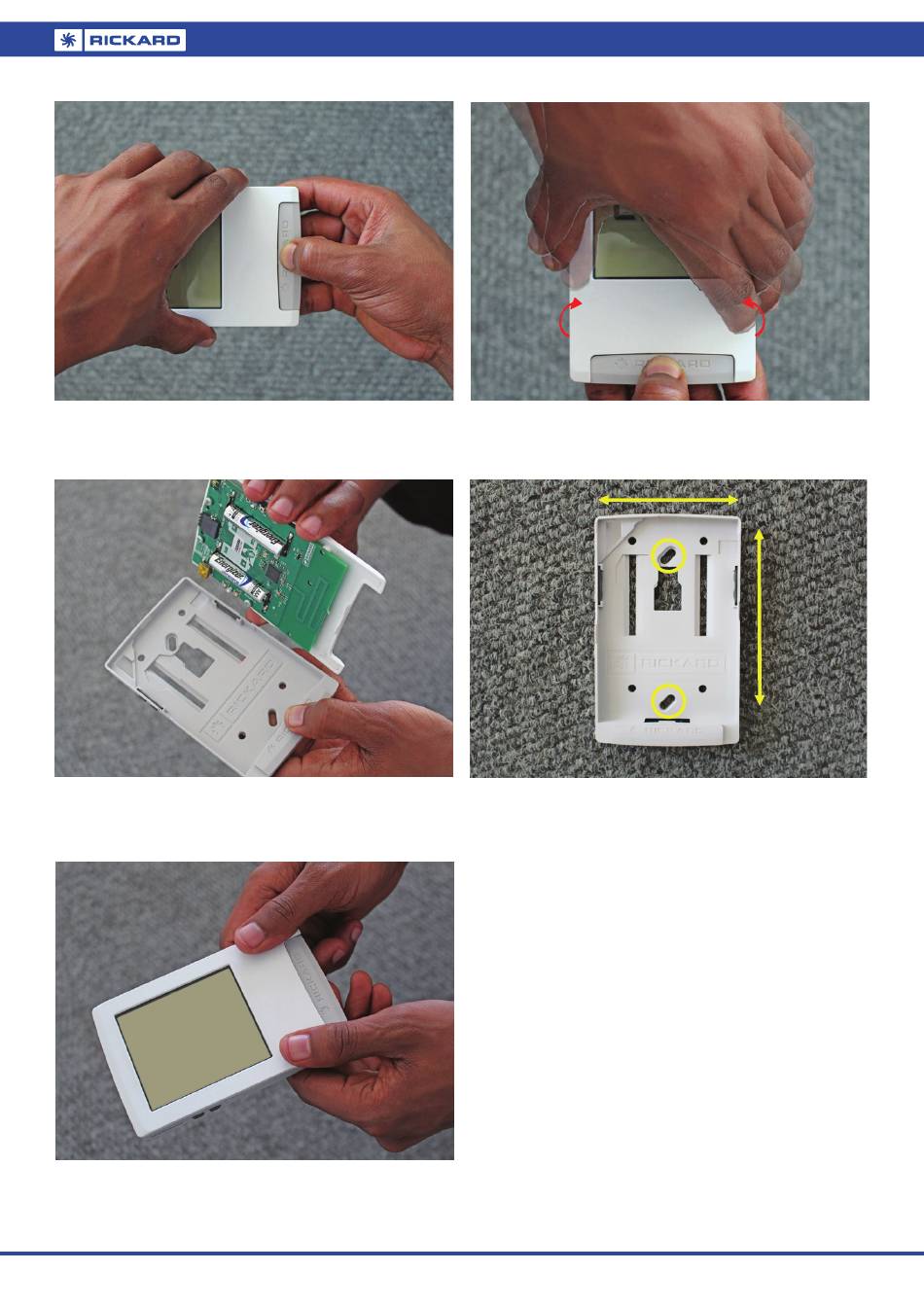

To open casing, grip the enclosure with your left hand and press on
the center of the Rickard logo with your right thumb to release the
catch. A click will sound as it disengages and the bottom part of
the face will lift.
Check that 2 x 1.5V AAA Lithium batteries are inserted securely.
Do not use standard AAA batteries. Only Lithium cells maintain
their Voltage until completely depleted. Batteries not included
unless supplied locally in South Africa.
To close, align the top corners of the shells first. Proceed to press
on the bottom pocket of the top shell to engage catch.

MLM WIRELESS WALL THERMOSTAT INSTALLATION

Press here
Rock the top shell side-to-side to free the top shell completely.
Note: Opening the Wireless Wallstat is for when the batteries need
replacing or when mounting.
No draw box is required. It can be fitted to any flat vertical surface
that will give a representative room temperature sample. The diag-
onal slots shown allow horizontal and vertical alignment with 2
screws. Four additional mounting holes are provided if required.
RICKARD 2018
Rock side‐to‐side

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rickard MLM

  • Page 1 To open casing, grip the enclosure with your left hand and press on Rock the top shell side-to-side to free the top shell completely. the center of the Rickard logo with your right thumb to release the Note: Opening the Wireless Wallstat is for when the batteries need catch.
  • Page 2   MLM WIRELESS WALL THERMOSTAT STAND ASSEMBLY Insert the narrow end of the Foot-plate through the bottom cutout Before assembly, make sure you have all the components. 1). Thermostat 2). Back-plate 3). Foot-plate 4). Rivets (x2) of the Back-plate until it reaches the stops.
