Summary of Contents for Mindman MF01 Series

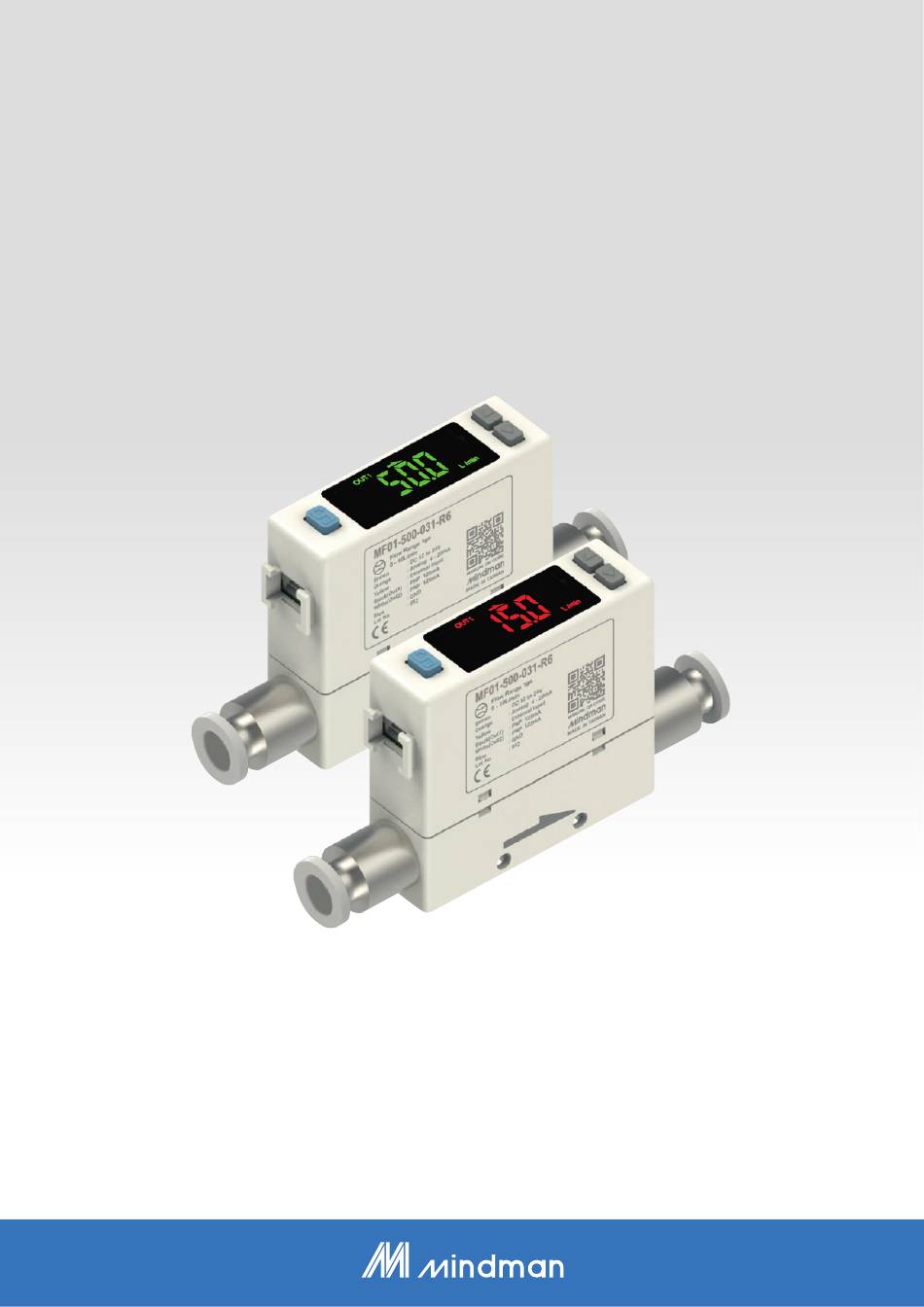

- Page 1 INSTRUCTION MANUAL Digital Flow Sensor MF01 series 201012...
-
Page 2: Table Of Contents
MF01 Contents DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Product features ..................................1 Application ....................................3 Thermal mass flow sensor principles ......................... 4 Order example ..................................4 Specifications ...................................5 Output type ....................................7 Pressure loss characteristics .............................8 Installation instructions ..............................9 ● Piping ........................................9 ● Mounting bracket ....................................9 ●... -
Page 3: Product Features
MF01 Product features DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Cost Control DRY AIR, N User-friendly RS-485 MODBUS High Performance CONTROL High Precision Flow Indicator accuracy ± 3% F.S. Repeatability ± 1% F.S. Multiple output function Digital display Switch output Analog output Accumulated pulse output Instantaneous flow value... - Page 4 MF01 Product features DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Screen Invertible Display can be vertically inverted. To set and watch monitor easily. Screen invertible Accumulated flow rate display at a glance Accumulated flow rate display Wide range of flow rates Flow rate (L/min) MF01-005 MF01-010...
-
Page 5: Application
MF01 Application DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Application Paint and coating flow monitoring Air flow and pressure management of paint and coating processes. Application Laser welding monitoring Precision management of shielding gas, flow rate and pressure. - Page 6 MF01 Application DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Application Application Suction operation Electronic part installation Detect the suction state of micro- Control the tension of gold wire for electronic parts by flow rate. bonding electronic parts. Application Application Air consumption Leakage detect monitoring Container with gas and inspect...
-
Page 7: Thermal Mass Flow Sensor Principles
MF01 Thermal mass flow sensor principles / Order example DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Thermal mass flwo sensor principles Skewed Skewed Symmetric temperature profile temperature profile temperature profile Small Flow Large Flow Temperature Temperature Temperature Temperature Temperature Temperature Sensor 1 Sensor 2 Sensor 1... -
Page 8: Specifications
MF01 Specifications DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Specifications Model Fluid Dry air, N , Non-corrosive / Non-flammable gas 0 ~ 500 mL/min 0 ~ 1000 mL/min 0 ~ 5 L/min 0 ~ 10 L/min 0 ~ 50 L/min 0 ~ 100 L/min 0 ~ 200 L/min Measured flow rate range... -
Page 9: Output Type
MF01 Output type DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Normal open mode Normal close mode ● Hysteresis Mode ● Hysteresis Mode FH-1 FH-1 (FH-2) (FH-2) FL-1 FL-1 (FL-2) (FL-2) ● Window Comparator Mode ● Window Comparator Mode FH-1 FH-1 (FH-2) (FH-2) FL-1... -
Page 10: Pressure Loss Characteristics
MF01 Pressure loss characteristics DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) MF01-005 MF01-010 0.006 0.1 MPa 0.018 0.1 MPa 0.005 0.015 0.004 0.012 0.35 0.003 0.009 0.3 / 0.35 / 0.4 0.002 0.006 0.001 0.003 1000 Flow rate (mL/min) Flow rate (mL/min) MF01-050 MF01-100 0.08... -
Page 11: Installation Instructions
MF01 Installation instructions DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Installation instructions ● Piping ● Mounting Bracket / Optional Parts Install the pipe by following the arrow indication that shows The LCD display may be difficult to see at certain angles. the air flow direction on the product. -
Page 12: Wiring Diagrams
MF01 Wiring diagrams DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) ● Wiring diagrams NPN Output, Analog Output and External Input PNP Output, Analog Output and External Input ● NPN Output / Analog Voltage Output / External Input ● PNP Output / Analog Voltage Output / External Input Brown (Power supply +) Brown (Power supply +) 1kΩ... - Page 13 MF01 Dimensions DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Port size R6 (ø6) R8 (ø8) Quick fitting ø6, ø8 2×ø2.5×5.5 depth Code A (mm) Tube I.D. ø8 92.2 ø6 Port size F1C (Rc1/8") F4C (Rc1/4") Internal Thread Rc1/4”, Rc1/8” 2×ø2.5×5.5 depth Code B (mm) Thread...
-
Page 14: Dimensions
MF01 Mounting accessories DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Mounting bracket MP-A26 (BT-26) Mounting screw 33.6 P type 3×6 2-ø3.5 4×3.5 Panel type Front protective lid + Panel adapter MP-C4 (PA-H) Panel cut dimensions 60.5±0.3 Panel thickness 1~4.5 4×R3 or less Panel adapter MP-B4 (PA-G) Panel adapter... -
Page 15: How To Use
MF01 How to use – Names and functions of individual parts DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) How to use ● Names and Functions of Individual Parts Panel description 4-Digit LCD Flow Display 8-Digit LCD Accumulated Flow Display Flow Direction Symbol Output 2 Indicator Output 1 Indicator Flow Unit Display Section... -
Page 16: Internal Structure
MF01 How to use – Internal structure DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Port size R6 (ø6) R8 (ø8) Port size F1C (Rc1/8") F4C (Rc1/4") Part name (Material) Part name (Material) Case (PC + ABS) Resin body (PBT) Electronic circuit board O-ring (Viton) Sensor (SiC) O-ring (NBR) -
Page 17: Functions Instructions
MF01 How to use – Functions instructions DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Function setting mode Function Item Default setting Explanation code oUt1 oUt1 OUT1 setting FLoy OUT1 output mode oUt1 OUT1 output type 50 % of maximum measured flow rate 005 : 250 mL/min, 010 : 500 mL/min Set Output 1 flow value to F-01... -
Page 18: Measurement Mode
MF01 How to use – Functions instructions DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Function setting mode Function Item Default setting Explanation code rotR rotR Display rotation F-08 Set Display Rotation. rotR Output selection EEPr EEPr Accumulated value hold selection To save the last accumulated flow F-09 value every 2 or 5 minutes. -
Page 19: Operation Setting Instructions
MF01 How to use – Operation setting instructions DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) ● Operation setting instructions At Measurement Mode, press button for more than 3 sec. to display [F-01]. Press button to select other setting functions. Press button Press for 3 sec. -
Page 20: [F-02] Out2 Setting Selection
MF01 How to use – Operation setting instructions DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) ● [ ] OUT2 Setting Selection F-02 Press button at Function Setting Mode to display [ F-02 ] [ oUt2 ]. Press button Press button Output Mode Setting Set Value Setting Flashing... -
Page 21: [F-03] Lcd Display Color Selection
MF01 How to use – Operation setting instructions DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) ● [ ] LCD Display Color Selection ● [ ] Response Time Selection F-03 F-04 4 LCD Display Color Modes of output value selection. Select proper response time to avoid switch output chattering. Press button at Function Setting Mode to display Press... -
Page 22: [F-05] Display Refresh Time Selection
MF01 How to use – Operation setting instructions DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) ● [ ] Display Refresh Time Selection ● [ ] Flow Reference Standard Selection F-05 F-07 Select the proper display refresh time to reduce frequently Select the flow value is shown under standard or normal changing value. -
Page 23: [F-09] Accumulated Value Hold Selection
MF01 How to use – Operation setting instructions DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) ● [ ] Accumulated Value Hold Selection ● [ ] Flow Sensor Display Mode Selection F-09 F-10 The default setting is "OFF", the accumulated flow value is Select to display Instantaneous Flow or Accumulated Flow Mode. -
Page 24: [F-91] Power-Save Mode Selection
MF01 How to use – Operation setting instructions DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) ● [ ] Power-Save Mode Selection ● [ ] External Input Selection F-91 F-92 Select Power-Save Mode at Measurement Mode. Accumulated flow external reset: The accumulated flow During the Power-Save Mode, the main display will turned off value will reset to "0"... -
Page 25: [F-93] Modbus Rtu Setting
MF01 How to use – Operation setting instructions DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) ● [ ] Modbus RTU Setting F-93 MODBUS transmission protocol can be set according to user requirements. Press button at Function Setting Mode to display [ F-93 ] [ AbUS ]. -
Page 26: [F-94] Fine Adjustment Setting
MF01 How to use – Operation setting instructions DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) ● [ ] Fine Adjustment Setting ● [ ] Forced Output Function F-94 F-95 This function is to fine adjust flow and pressure display values. To turn the analog ON/OFF forcibly. -
Page 27: [F-99] Reset To The Default Setting
MF01 How to use – Operation setting instructions DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) ● Reset Accumulated Flow Function ● [ ] Reset to the Default Setting F-99 Accumulate flow value return to zero. The factory default settings can be restored. <... -
Page 28: Bottom Value Display
MF01 How to use – Operation setting / Modbus RTU instruction DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Modbus RTU instruction ● Bottom Value Display Error code Explanation Operation The minimum pressure and instantaneous flow, from when the power was supplied to this moment, is detected and updated. ID Number ( 0 ~ 255 ) Read / 0000H... - Page 29 MF01 Modbus RTU instruction DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Error code Explanation Operation Error code Explanation Operation Fine adjustment of display value Read / Read / 000EH 001CH Flow setting value ADL2 -25 ~ 25 (-2.5% ~ +2.5%) Write Write Response time of flow sensor...
-
Page 30: Error Code Instruction
MF01 Error code instruction DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) Error Code Instruction Error Type Error Code Error Condition Troubleshooting OUT1 excess load Output 1 load current is more than 125 mA. Turn power off and check the cause of current error overload current or lower the current OUT2... -
Page 31: Caution For Safety
Caution for safety DIGITAL FLOW SENSOR ( INSTRUCTION MANUAL ) This section indicate the levels of risks with the labels of Danger, Warning and Caution. Danger indicates high level of risk, will lead to fatal or serious injuries if not avoided. DANGER WARNING Warning indicates medium level of risk, it might cause death or serious injuries. - Page 32 To avoid losing the internal parts and cause malfunction. accidentally, misuse, or other abnormal conditions that are not the responsible of Mindman. Maintenance Precautions Our warranty applies solely to our product, not to any ther...
