- Page 1 Artistic Licence Rail-Contact User Guide Rail-Contact User Guide Version 1-1...
- Page 2 MUST be installed in an appropriate IP rated cabinet. Do not allow this product to be exposed to rain or moisture. Do not allow liquid to penetrate the product. Please recycle all packaging. Copyright © Artistic Licence Engineering Ltd. All rights reserved. Download the user guide by scanning the following QR code: Page 2...
- Page 3 DMX512 devices. If this feature is not required then the signal must be terminated. The product contains an internal termination resistor. This is enabled by fitting a wire link between Term and DAT+. Mounting Diagram Page 3 Rail-Contact User Guide...

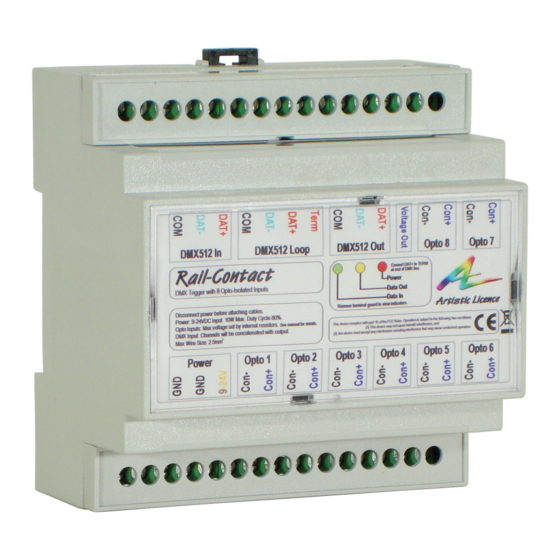

- Page 4 Connects to Ground Power Input Overview Rail-Contact is a DIN-rail mounted device that provides 8 contact closure inputs whose state can be translated into a DMX512 value. This enables a DMX512 controller to be triggered by switches such as pressure mats. Rail-Contact provides a useful solution for architectural or entertainment applications that require interactive lighting systems.
- Page 5 DMX output from the first unit should be connected to the DMX input of the second unit. Rail-Contact monitors the state of the 8 contact closures and translates this into a value on A passive loop-through connection allows DMX channels 1 to 8. When a contact closure onward connection to other DMX512 devices.
- Page 6 MINUS Application Diagram The diagram below shows how Rail-Contact could be utilised in a typical application. In this example, two Rail-Contact units are linked together to provide 16 trigger channels for a DMX controller. The first 8 channels are re-patched to channels 9 -16.
- Page 7 Country of manufacture: UK Rail-Contact Environmental User guide Operating temperature: 0°C to 40°C Ordering Info Storage temperature: -10°C to +50°C Product code: Rail-Contact Accessories (not included) Operating relative humidity (max): 80% non-condensing PSU-9-1.5-FER IP rating: IP20 indoor use only Certification: CE, WEEE, RoHS Warranty: 2-year (return to base) Power &...
- Page 8 Waste Electrical & Electronic Equipment authorisation. In order to discuss a request to (WEEE) return goods, please email: Artistic Licence is a member of a WEEE Sales@ArtisticLicence.com compliance scheme and will happily recycle any of our products that you, at your expense, return to us.
