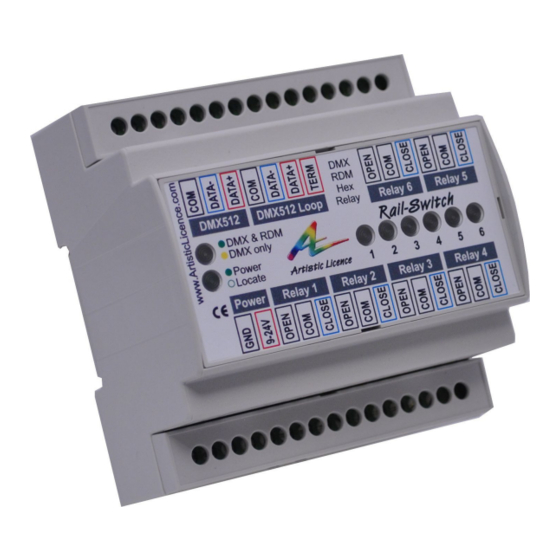

- Page 1 Artistic Licence Rail-Switch II User Guide Rail-Switch II User Guide Version 5-6...
- Page 2 MUST be installed in an appropriate IP rated cabinet. Do not allow this product to be exposed to rain or moisture. Do not allow liquid to penetrate the product. Please recycle all packaging. Copyright © Artistic Licence Engineering Ltd. All rights reserved. Download the user guide by scanning the following QR code: Page 2...
-
Page 3: Mounting Diagram
Internal Earth and Isolation Circuit Description DMX512 Input Type: Non-isolated (including Loop Through) Pin 1: Connects to Internal Logic Ground Relay Outputs Isolated, volt-free Internal Logic Ground Connects to Ground Power Input Mounting Diagram Page 3 Rail-Switch II User Guide... -
Page 4: Summary Of Key Features
Rail-Switch II is an elegant solution Power to the automation of these devices. Rail-Switch II is a DIN Rail mounted device Rail-Switch II is be powered from an that provides 6 mains voltage relays and is external DC power supply (9-24 VDC). It is controlled via DMX512 &... -
Page 5: Led Indication
Start address programming LED Indication In the DMX-Workshop ‘Node List’ screen, Rail-Switch II has front-panel LED indicators Rail-Switch II appears as an RDM device, for the following functions: with each relay listed as a sub-device (see screenshot below). Data (upper):... -
Page 6: Application Diagram
Application Diagram The diagram below shows how Rail-Switch II could be utilised in a typical application. The DMX controller is not required if the Rail-Switch II has been preset programmed using RDM, or if it is in test mode. DMX controller... - Page 7 Start address (individual for each relay) Input ESD protection: 12 kV Preset, data loss and test modes Input voltage protection: +/- 80 V Package Contents Rail-Switch II User guide Ordering Info Product code: Rail-Switch II Accessories (not included) PSU-24-2-DR Page 7 Rail-Switch II User Guide...
-
Page 8: Warranty
Safety Warning return to us. When Rail-Switch II is used for high current or voltages the unit shall be placed within a locked enclosure and shall be connected to the power by a qualified electrician.
