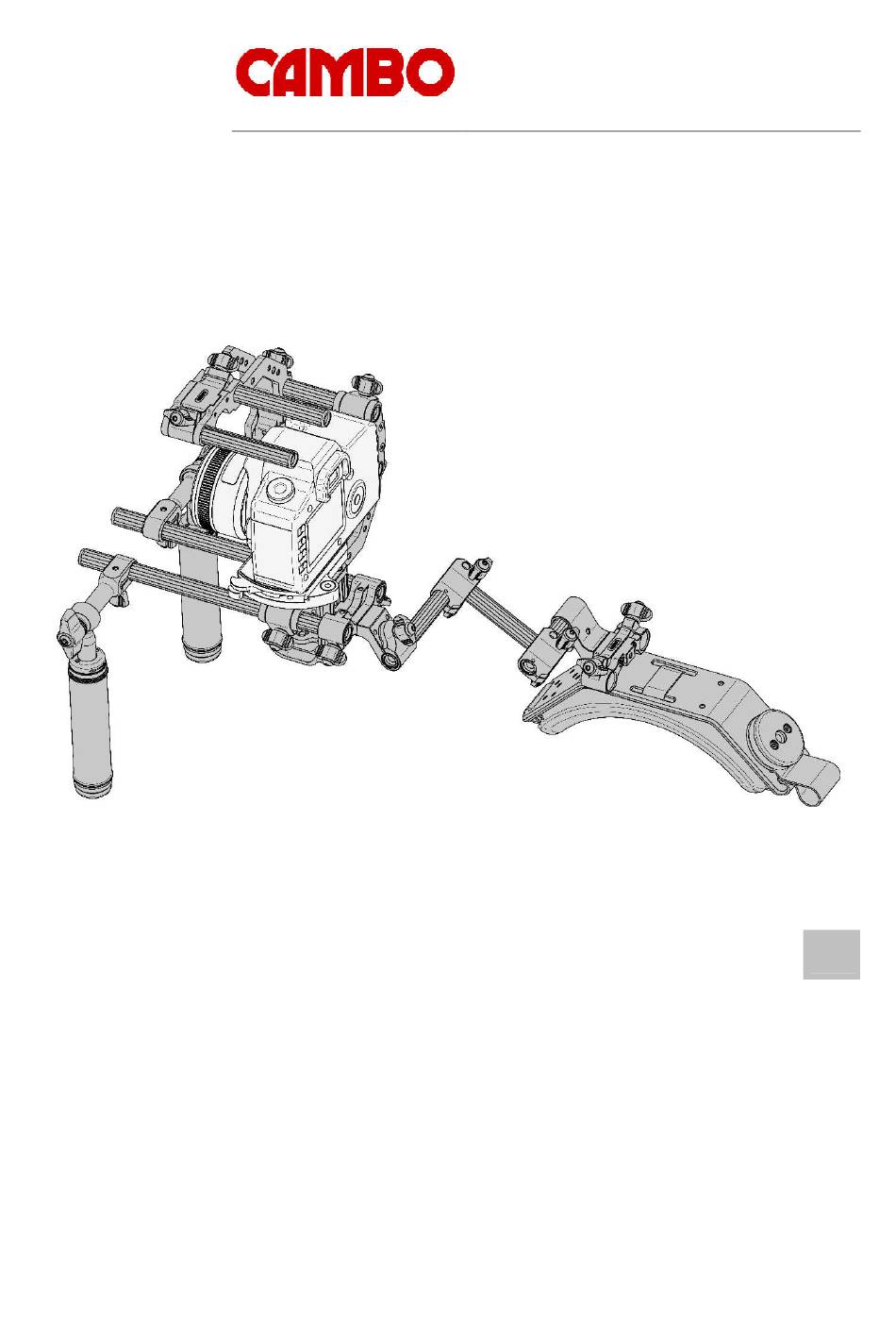

- Page 1 CS-CHRONOS HDSLR/DV SUPPORT SYSTEMS INSTRUCTION MANUAL Please read this manual carefully before using the Cambo CS rig! CAMBO | WHERE TRADITION MEETS VISION | MADE IN THE NETHERLANDS...
- Page 2 The Chronos features the telescopic CS-H2 handle grips, giving the user full control over the positioning of the grips. Due to the modular character of the Cambo rig system, the user is fully in charge of customizing the rig to his or her personal preferences.
-
Page 3: Item Checklist
CS-1522 iris rods 220mm (2x), CS-M1 camera/tripod mount (1x), CS-153 triple clamp (1x) CS-P1 ergonomic pad (1x), CS-153 triple clamp (1x) CS-1512 iris rod 120mm (6x), CS-1509 iris rod 90mm (1x), CS-151 perpendicular clamp (2x) Instruction Manual CS-Chronos UPDATED: 02-07-2010... - Page 4 CS-154 quad parallel 15mm rod clamp (2x) Overview CS-Chronos rig CS-M1 Camera/tripod mount CS-151 Perpendicular 15mm rod clamp CS-H2 Telescopic handle CS-153 Triple 15mm rod clamp CS-1512 Iris rod 120mm CS-1509 Iris rod 90mm CS-1522 Iris rod 220mm CS-P1 Ergonomic shoulder pad...
- Page 5 Assembly of the CS-Chronos rig Insert the CS-1512 rod into the CS-151 clamp. Twist the rod until you feel it snap into the preset position. Tighten the related clamp knob to fix the position of the iris rod. Position the rod/clamp assembly as shown in the picture.
- Page 6 CS-M1 mount by turning the hex-key clockwise (do not over tighten the bolt). Please assemble the front, middle and back part of the rig according the picture above. Instruction Manual CS-Chronos UPDATED: 02-07-2010...
- Page 7 CS-154 brackets, when all the rods are placed and when the two CS-154 brackets are parallel, please tighten the screws of the CS-154 brackets. Please assemble the two CS-H2 handles. The assembly of the CS Chronos rig is now complete. Instruction Manual CS-Chronos UPDATED: 02-07-2010...
- Page 8 CS-Chronos rig adjustments Note: for clarity the CS-154 brackets are not shown in the following images. The position of the front assembly (camera) in relation to the back assembly (shoulder pad) can be adjusted in the x, y and z direction and axis.
- Page 9 (of course its also possible to twist the handle clockwise to lock it again). Instruction Manual CS-Chronos UPDATED: 02-07-2010...
- Page 10 The image above shows the different mounting options of the CS-P1 shoulder pad. The CS-152/153 and the CS-158 can be mounted directly to the CS-P1 shoulder pad. Cambo CS system accessories The CS-15XX iris rods and the CS-H2 handle feature a 3/8” socket which can be used for mounting attachments.
- Page 11 The CS-181 unit can be used to adjust the weight distribution of the CS-rig. The CS-M8 is a separate monitor/microphone/light stand which couples to the 15mm iris rod. The CS- H1 handle can be extended using a CS-155 connector and a CS-15XX iris rod. Instruction Manual CS-Chronos UPDATED: 02-07-2010...
- Page 12 CS-30 3” Monitor Viewing Loupe 3.0x Magnification Cambo Photographic Industry B.V. / Cambo Video and Broadcast Products B.V. Cambo R&D 01 November 2010 This instruction manual is prepared with care, although no responsibility, financial or otherwise, is accepted for any consequences related the information stated in this instruction manual.
