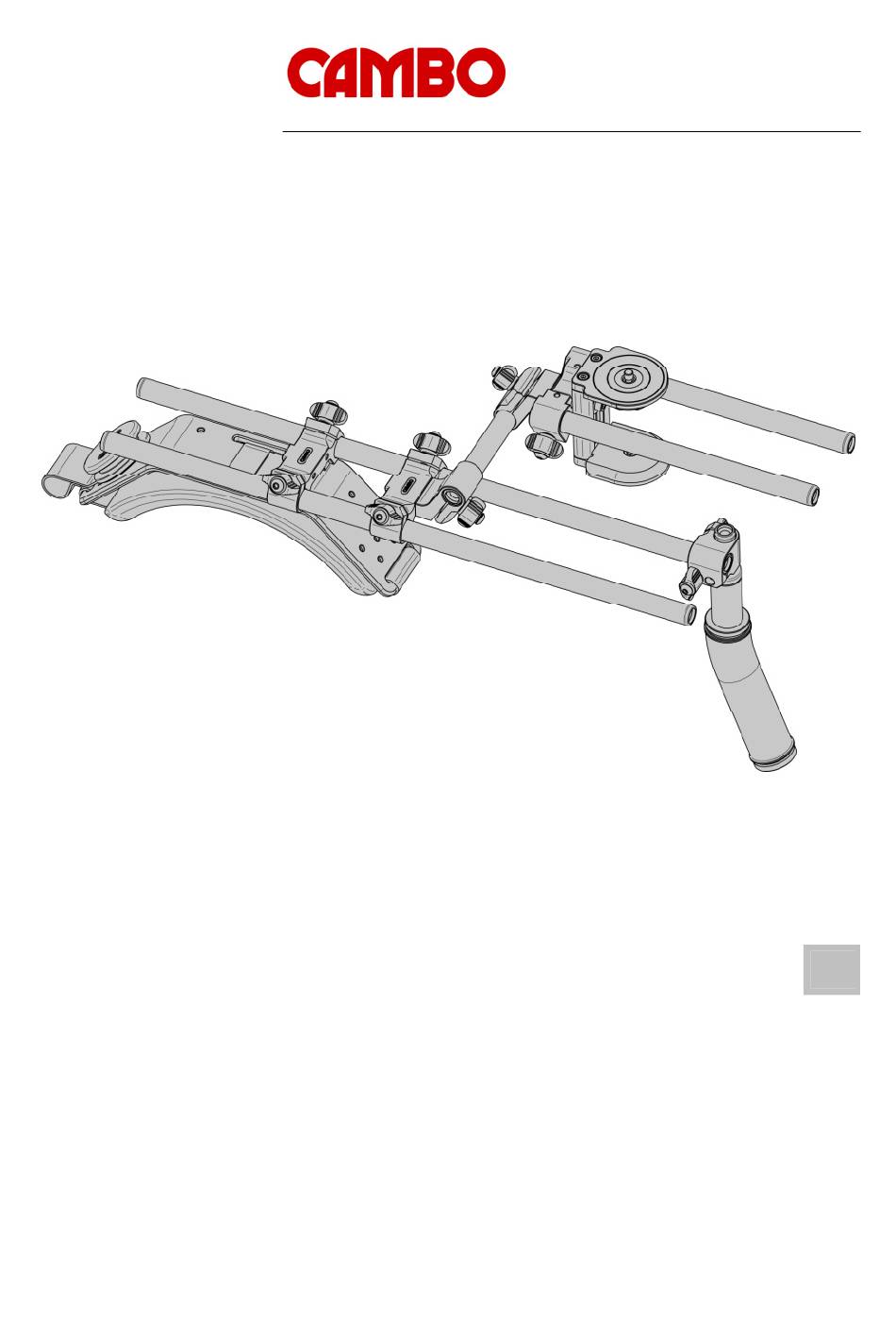

- Page 1 CS-CIRUS HDSLR/DV SUPPORT SYSTEMS INSTRUCTION MANUAL Please read this manual carefully before using the Cambo CS rig! CAMBO | WHERE TRADITION MEETS VISION | MADE IN THE NETHERLANDS...
- Page 2 Ensuring the optimal viewing position, whether you use a loupe or a direct view on the DSLR monitor. Due to the modular character of the Cambo rig system, the user is fully in charge of customizing the rig to his or her personal preferences.
- Page 3 CS-H1 grip handle compact (1x) CS-1522 iris rods 220mm (2x), CS-M1 camera/tripod mount (1x), CS-153 triple clamp (1x) CS-1546 460mm iris rods (2x), CS-P1 ergonomic pad (1x), CS-152 dual clamp (1x), CS-153 triple clamp (1x) CS-1512 iris rod 120mm (1x) Instruction Manual CS-Cirus...
- Page 4 CS-H1 Compact grip handle (As an assembled unit includes CS-151 part) CS-153 Triple 15mm rod clamp CS-1512 Iris rod 120mm CS-1546 Iris rod 460mm CS-1522 Iris rod 220mm CS-P1 Ergonomic shoulder pad CS-152 Dual 15mm rod clamp Instruction Manual CS-Cirus...
- Page 5 (do not over tighten the bolt). ! ! ! ! WARNING: DON’T LOOSEN KNOB A OR B WITHOUT SUPPORTING THE LOOSENED PART! Loosened part is indicated dark grey in the image below. Instruction Manual CS-Cirus...
- Page 6 The image above shows the different mounting options of the CS-P1 shoulder pad. The CS-152/153 and the CS-158 can be mounted directly to the CS-P1 shoulder pad. Cambo CS system accessories The CS-15XX iris rods feature 3/8” sockets which can be used for mounting attachments.
- Page 7 The CS-181 unit can be used to adjust the weight distribution of the CS-rig. The CS-M8 is a separate monitor/microphone/light stand which couples to the 15mm iris rod. The CS- H1 handle can be extended using a CS-155 connector and a CS-15XX iris rod. Instruction Manual CS-Cirus...
- Page 8 CS-30 3” Monitor Viewing Loupe 3.0x Magnification Cambo Photographic Industry B.V. / Cambo Video and Broadcast Products B.V. Cambo R&D 14-6-2010 This instruction manual is prepared with care, although no responsibility, financial or otherwise, is accepted for any consequences related the information stated in this instruction manual.
