Duncan Apollo Jazz Bass - neck Wiring Diagrams

Wiring Diagrams for
Pickup Models:

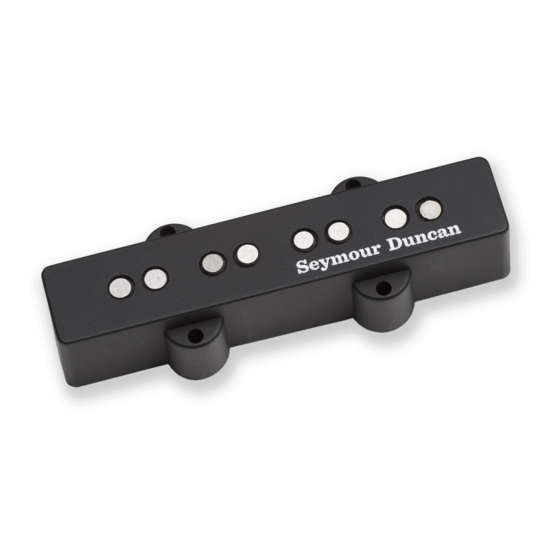

Apollo Jazz Bass - neck
Apollo Jazz Bass - bridge
Apollo Jazz Bass - set
Apollo Jazz Bass - neck 67mm 5 strg
Apollo Jazz Bass - bridge 70mm 5 strg
Apollo Jazz Bass - set 67/70 5 strg
Apollo Jazz Bass - neck 70mm 5 strg
Apollo Jazz Bass - bridge 74mm 5 strg
Apollo Jazz Bass - set 70/74 5 strg
5427 hollister avenue, Santa Barbara, CA 93111
805.964.9610 • seymourduncan.com

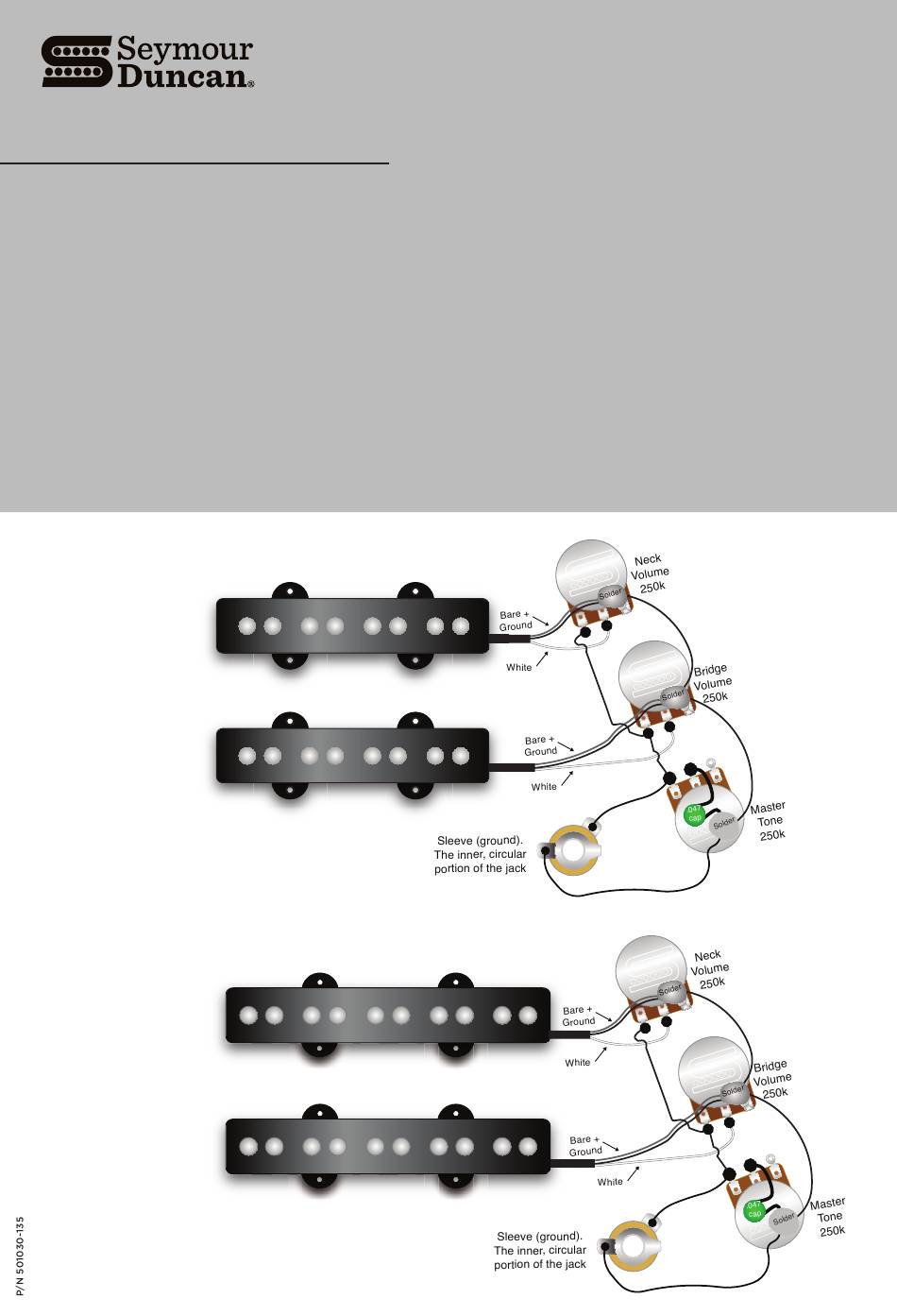

Wiring for Apollo Jazz Bass 4 String

Wiring for Apollo Jazz Bass 5 String

Visit seymourduncan.com for additional wiring diagrams.
Jazz Bass and Fender are registered trademarks of FMIC, with which Seymour Duncan is not affiliated
Cong ratu lati ons on your purchase of a fine, h and-bui l t,
Seymou r D uncan bass gui tar pi ckup! I nstal li ng thi s picku p
in you r bass isn' t rocket scie nce. And, i f you're al ready handy
w it h tools, i t 'l l be a snap for you,and fun too! But i f you have
no expe rie nce handli ng red-hot sol de ri ng i rons, you'd be
we ll advi se d to take your new pi ckup and your trusty
ba ss to a qu al i fied g ui tar te ch .
The basic steps for installation include:
1. Remove the strings from your bass.
2. Remove the control plate and flip it over.
3. De-solder the original pickup's wires from the controls and
make sure to remember where they were connected.
4. Remove the pickup from the pickup cavity.
5. If the foam in the cavity of your bass has degraded, then
replace it with the foam included with your pickups.
6. Put your SD bass pickup into the pickup cavity.
7. Tin the wires from the SD bass pickup, and then solder them
into place.
8. Replace the control plate.
9. Re-string your bass, and adjust the pickup to string distance
to about 1/8" for the bridge and 3/16" for the neck.
Seymour Duncan
Seymour Duncan
Seymour Duncan
Seymour Duncan
Tip (hot output)
Output Jack
Tip (hot output)
Output Jack
