Short-Form Instructions
Please note:
The present short-form instructions are used for description of the main functions
and are just an abridgement of the complete operating manual (73018816).
Attention should be paid to the operational manual.
DL210
Short-Form Instructions:73018818
Edition:
Elster-Instromet GmbH
DL210
Prefix
Arc.
Status

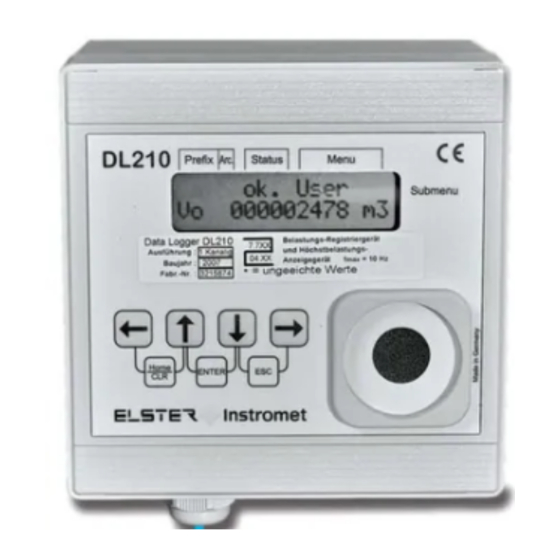

Data Logger DL210
xxxx
Baujahr/Year:
2006
320xxxx
xx.xx
Fabr.Nr./Ser.No:
HOME
ENTER
ESC
CLR
Short-Form of the
operating manual V1.00
18.09.2006 (a)
Menu
Submenu
Belastungs-Registriergerät
und Höchstbelastungs-
Anzeigegerät
fmax = 10 Hz
* = ungeeichte Werte
SW-Version:
Print Run:
Data Logger DL210
V1.00 and above
1
