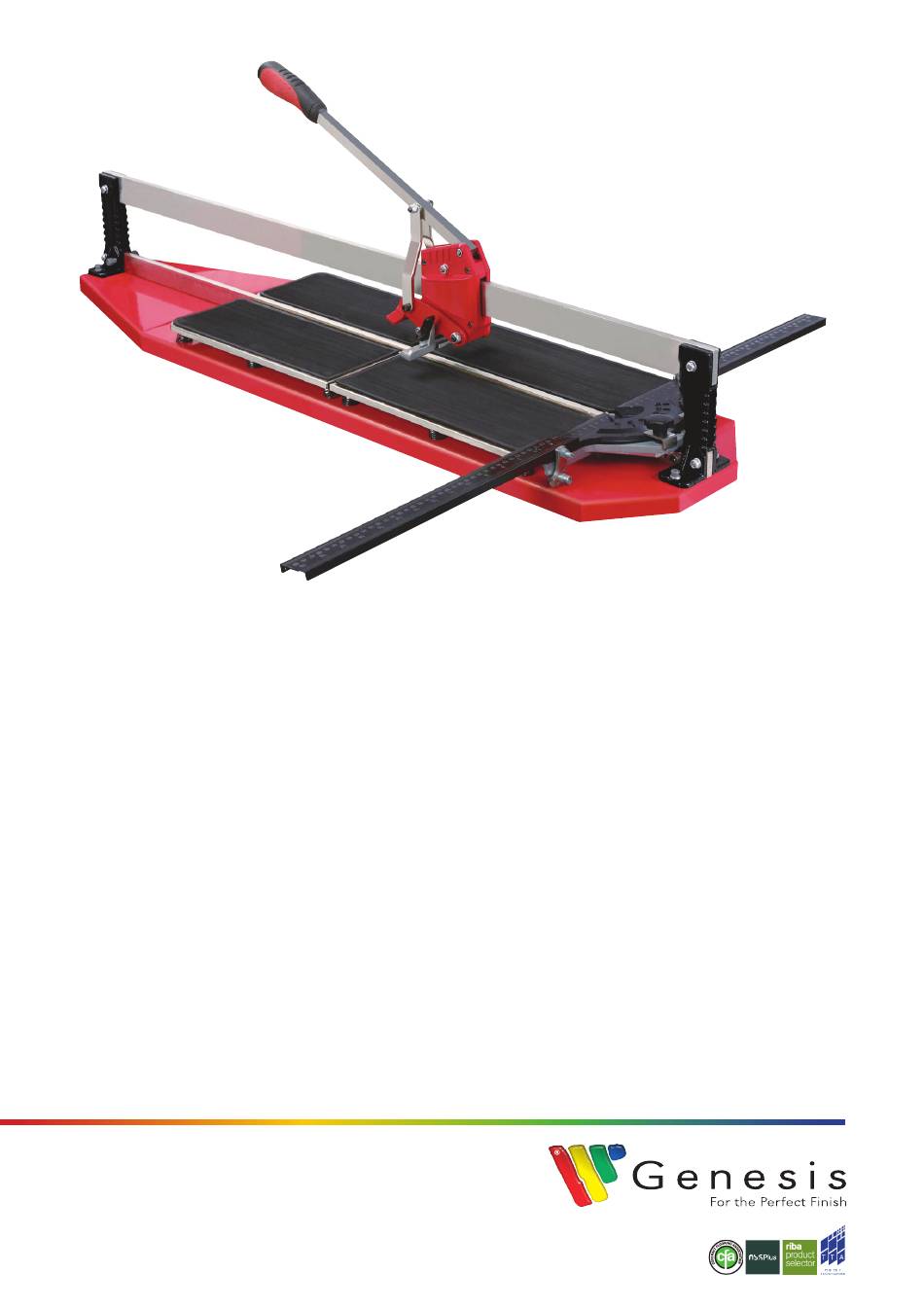

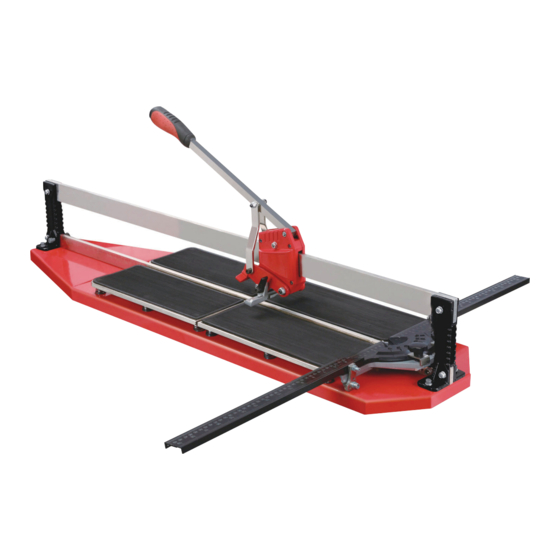

- Page 1 Ultra Flatbed Cutter P.V.C. Trim • Stair Nosings • Movement Joints • Transitions • Entrance Matting• Edge Protection • Metal Profiles • Tactiles• Tools Tel: +44 (0)1642 713000 Email: info@genesis-gs.com www.genesis-gs.com Stokesley Business Park Stokesley North Yorkshire TS9 5JZ UK...
- Page 2 Manual Technical Data Code Cutting Length Diagonal Cutting Qty. 980-750 750mm 530mm x 530mm 980-1000 1000mm 700mm x 700mm 980-1350 1350mm 900mm x 900mm 980-W Spare Wheel WARNING Please read the manual carefully before using. The manufacture accepts no responsibility for this tile cutter used with other tools, or for cutting any other materials except tiles.
- Page 3 Manual Operating Instructions Be sure to place the cutter on a flat and even surface when in use. Do not use excessive force on the cutter or tiles. After you cut tiles be alert that the newly cut edge will be sharp. This tile cutter has a two break bar, for angle cuttings and large size or particularly hard tiles, advantageously use the wide break bar.
- Page 4 Manual 5. Flip the breaker bar down and use the handle to position the breaker foot slightly away from the front edge of the tile. 6. Apply increasing downward pressure on the handle until the tile snaps along the score line. (P7) (P8) To Cut an Angle...
- Page 5 Manual Maintenance The Tile Cutter requires little regular maintenance. 1. Clean the tile cutter after using by removing tile debris. 2. Lubricate the Guide Rods periodically. 3. Adjust the carriage lever as indicated in P10. 4. Adjust the carriage smoothly as indicated in P11. 5.
- Page 6 Manual Parts List Description Qty. Spring Washer Cutting Wheel Cushion Breaking Jaw 1 Base Ball Hanfle Modulator Bolt Hadle Cap Bolt Big Breaker Device Right Extension Bar Breaking Jaw 2 Working Table Small Breaking Device Bolt Breaking Baffle Push Handle Bolt Right Connector...
- Page 7 Manual Parts List Left Connector Bolt Sleeve Support Bolt Crash Pad Bolt Cutting Wheel Holder Knob Bolt Carriage Right Side Angle Stop Bearing Bolt Long Pin Knob Short Pin Washer Carriage Left Side Bolt Left Extension Bar Locking Screw Bolt Bolt Washer Bearing...
- Page 8 For more information contact Genesis today Tel: +44 (0)1642 713000 Email: info@genesis-gs.com www.genesis-gs.com Genesis Global Systems Ltd 7 Ellerbeck Way Stokesley Business Park Stokesley North Yorkshire TS9 5JZ...
