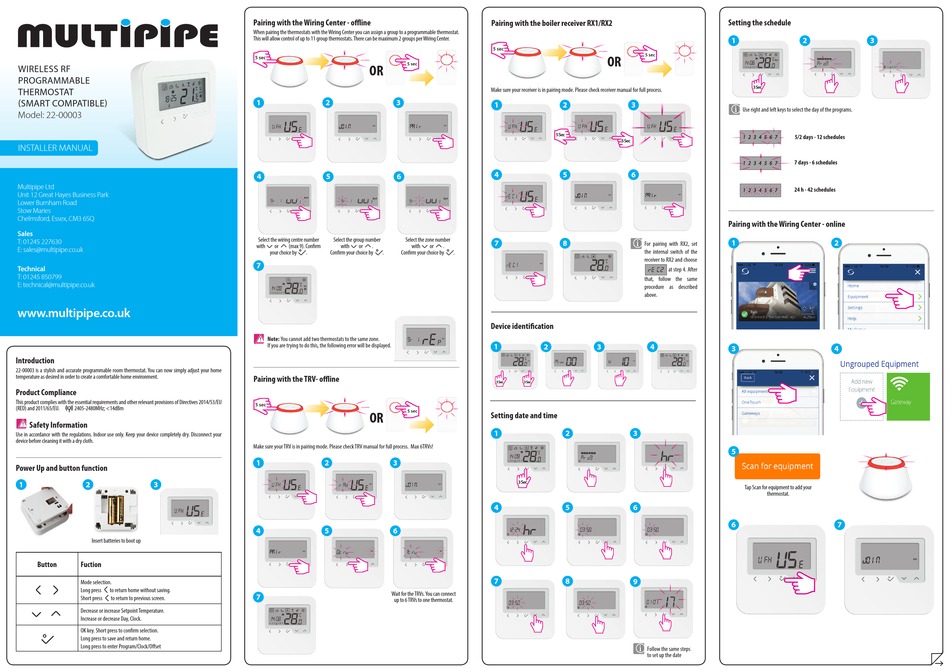

WIRELESS RF
PROGRAMMABLE
THERMOSTAT
(SMART COMPATIBLE)
Model: 22-00003
INSTALLER MANUAL
Multipipe Ltd
Unit 12 Great Hayes Business Park
Lower Burnham Road
Stow Maries
Chelmsford, Essex, CM3 6SQ
Sales
T: 01245 227630
E: sales@multipipe.co.uk
Technical
T: 01245 850799
E: technical@multipipe.co.uk
www.multipipe.co.uk
Introduction

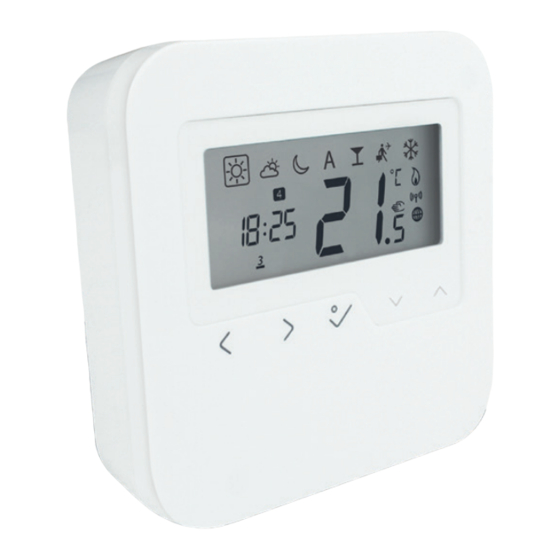

22-00003 is a stylish and accurate programmable room thermostat. You can now simply adjust your home
temperature as desired in order to create a comfortable home environment.
Product Compliance
This product complies with the essential requirements and other relevant provisions of Directives 2014/53/EU
(RED) and 2011/65/EU.
2405-2480MHz; <14dBm
Safety Information
Use in accordance with the regulations. Indoor use only. Keep your device completely dry. Disconnect your
device before cleaning it with a dry cloth.
Power Up and button function
1
2
3
Insert batteries to boot up
Button
Fuction
Mode selection.
Long press
to return home without saving.
Short press
to return to previous screen.
Decrease or increase Setpoint Temperature.
Increase or decrease Day, Clock.
OK key. Short press to confirm selection.
Long press to save and return home.
Long press to enter Program/Clock/Offset
Pairing with the Wiring Center - offline
When pairing the thermostats with the Wiring Center you can assign a group to a programmable thermostat.
This will allow control of up to 11 group thermostats. There can be maximum 2 groups per Wiring Center.
5 sec
5 sec
OR
1
2
3
us
ufh
e
4
5
6
Select the wiring centre number
Select the group number
Select the zone number
with
or
(max 9). Confirm
with
or
.
with
or
your choice by
.
Confirm your choice by
.
Confirm your choice by
7
Note: You cannot add two thermostats to the same zone.
If you are trying to do this, the following error will be displayed.
Pairing with the TRV- offline
5 sec
5 sec
OR
Make sure your TRV is in pairing mode. Please check TRV manual for full process. Max 6TRVs!
1
2
3
4
5
6
Wait for the TRVs. You can connect
7
up to 6 TRVs to one thermostat.
Pairing with the boiler receiver RX1/RX2
5 sec
OR
Make sure your receiver is in pairing mode. Please check receiver manual for full process.
1
2
5 Sec
5 Sec
4
5
7
8
.
.
Device identification
1
2
3
3 Sec
3 Sec
Setting date and time
1
2
3 Sec
4
5
7
8
1
2
5 sec
3 Sec
3
Use right and left keys to select the day of the programs.
5/2 days - 12 schedules
7 days - 6 schedules
6
24 h - 42 schedules
Pairing with the Wiring Center - online
1
For pairing with RX2, set
the internal switch of the
receiver to RX2 and choose
at step 4. After
that, follow the same
procedure as described
above.
4
3
3
5
Tap Scan for equipment to add your
thermostat.
6
6
9
Follow the same steps
to set up the date
3
2
4
7
