Multipipe 22-02403 User Manual

User Manual

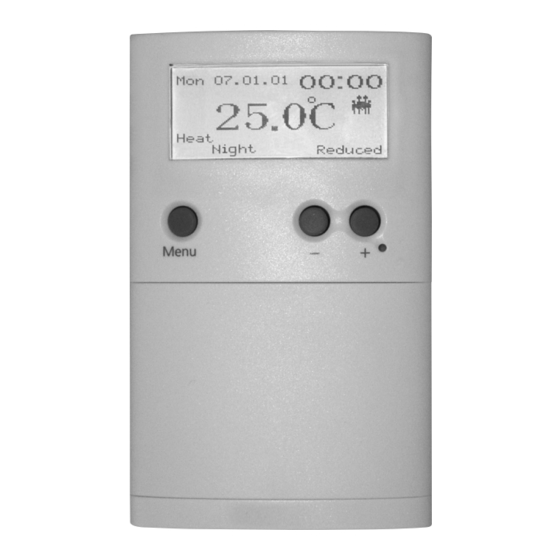

Digital Programmable
Thermostat 24V
Model No: 22-02403

NAVIGATION

1

BASIC OPERATION

2
Access the Main
Menu by
pressing the
Menu Button.
Change
Display
The Change
Display- Menu
offers the Full
Screen , Selected
Screen and Basic
Screen view.
Program
On/Off
In the Program -
Menu you can
choose between
Program or

Manual operation

mode.
3
Navigate
through the
menu by
pressing – for
lower and + for
higher entries.
Change
Profile
In the Change
Profile -Menu
you can choose
between the
Family, Single,
Office, Name 1
and Name 2
Profile.

Key Lock

By pressing the
– and + button
for three
seconds, a Key
Lock can be
activated to
protect the
device from
failure operation.
Enter the selected
topic by pressing
the select Button
or leave to the
previous menu
without any
changes by pres-
sing cancel .
Change
Holiday
In the Change
Holiday -Menu
you can make
your holidays
settings and turn
them On or Off .
Manual
operation
By pressing the –
or + buttons, the
manual operation
mode will be
activated. Current
Programs will be
overwritten until
the next daytime
starts.
