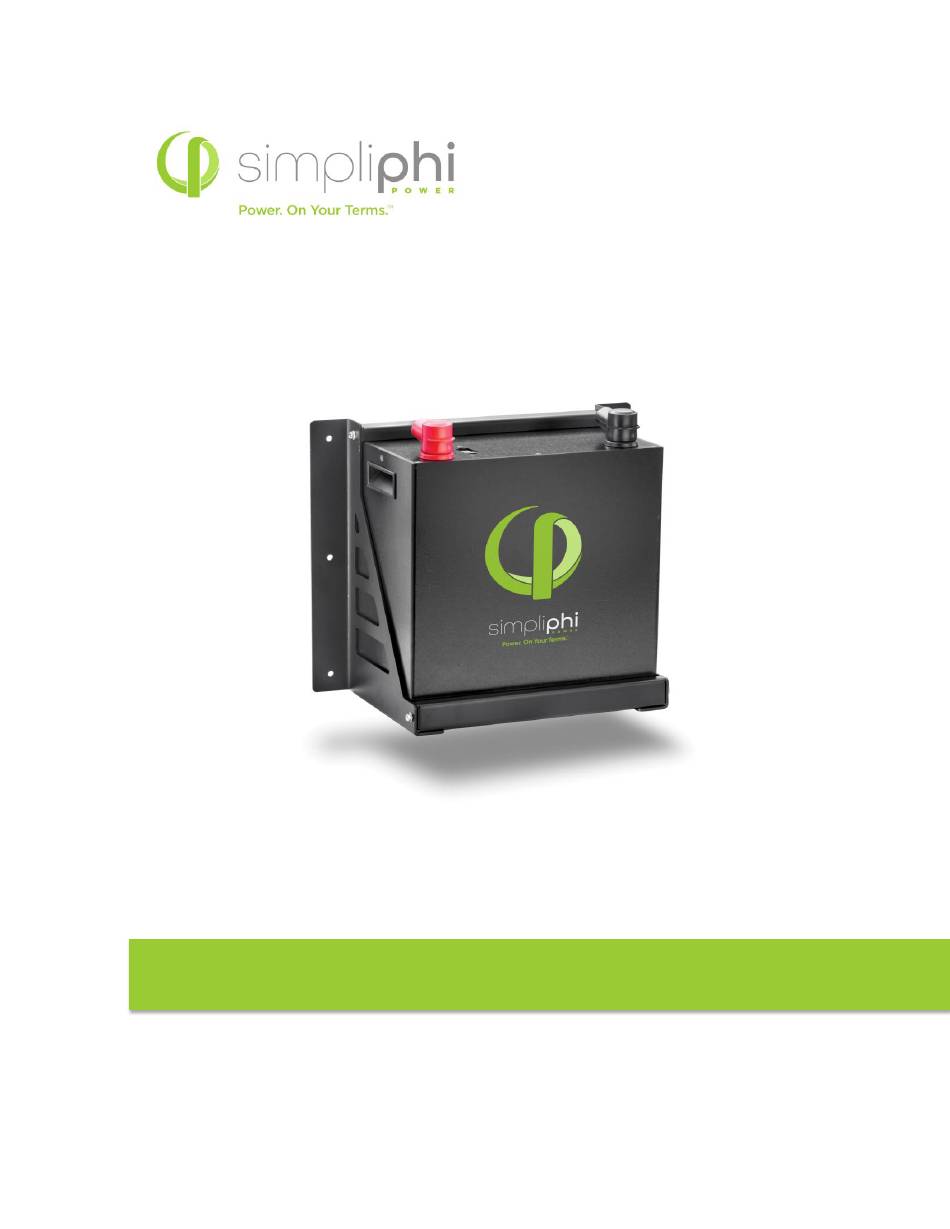

- Page 1 Power. On Your Terms. SimpliPhi Power PHI Battery INTEGRATION GUIDE: VICTRON Optimized Energy Storage & Management for Residential & Commercial Applications Utilizing Efficient, Safe, Non-Toxic, Energy Dense Lithium Ferrous Phosphate (LFP) Chemistry © SIMPLIPHI POWER, INC. REV070219...
- Page 2 PHI Battery. SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93030, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com | 2 |...
-
Page 3: Table Of Contents
4.6 – ESS Settings ..........................12 5.0 – Specifications & Warranty ......................13 6.0 – SimpliPhi Technical Support ......................13 SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93023, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com | 3 |... -
Page 4: Introduction
Recommended minimum number of batteries = B ≥ Inv Discharge equation: / Bat #Inv ≥ I Charge equation: PVChrgMax BatChrgMax SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93023, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com | 4 | REV070219... -
Page 5: Charge Calculation: Charge Controller Power Sizing
PHI Battery which can be used to evaluate usage patterns and battery health. SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93023, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com... -
Page 6: Standard Features
PHI Battery bank. Replace Fuse in fuse holder ensuring it is fully seated. Please review Figure 1.0 below for additional detail. SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93023, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com... -
Page 7: Installation - Quick Start Guide
If additional assistance is required, contact Victron Energy at: sales@victronenergy.com or call Victron at +31 (0)36 5359700. SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93023, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com | 7 | REV070219... -
Page 8: Victron - Available Interfaces
80% Depth of Discharge (DoD). This qualifies for the SimpliPhi 10-year / 10,000 cycle Warranty on the PHI Batteries. Greater DoD is possible, but will result in reduced cycle life. Refer to the PHI 3.8 kWh Battery Warranty to compare DoD settings and the associated Warranty. -
Page 9: Phi 3.8 General Settings With Victron
SoC when Bulk Finished Notes: • 1. Per PHI 3.8 Battery – These settings are calculated by multiplying the nominal per battery value times the # of batteries. • Levels are typical @ 25°C and may need adjusting at temperature extremes. -
Page 10: Inverter / Charger Settings
7 Days Absorb Time 1 Hour Notes: • 1. Per PHI 3.8 Battery – These settings are calculated by multiplying the nominal per battery value times the # of batteries. • 2. These levels exceed the warrantied recommended operating conditions. •... -
Page 11: Mppt Settings
Auto Equalization Temperature Compensation Notes: • 1. Per PHI 3.8 Battery – These settings are calculated by multiplying the nominal per battery value times the # of batteries. • Levels are typical @ 25°C and may need adjusting at temperature extremes. -
Page 12: Ess Settings
No battery specific settings Grid setpoint Notes: • 1. Per PHI 3.8 Battery – These settings are calculated by multiplying the nominal per battery value times the # of PHI Batteries. • 2. These levels exceed the warrantied recommended operating conditions. -
Page 13: Specifications & Warranty
For technical support related to your PHI 3.8 kWh Battery (or other SimpliPhi Power products), please contact us directly at: 805.640.6700 techsupport@simpliphipower.com SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93023, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com | 13 | REV070219...
