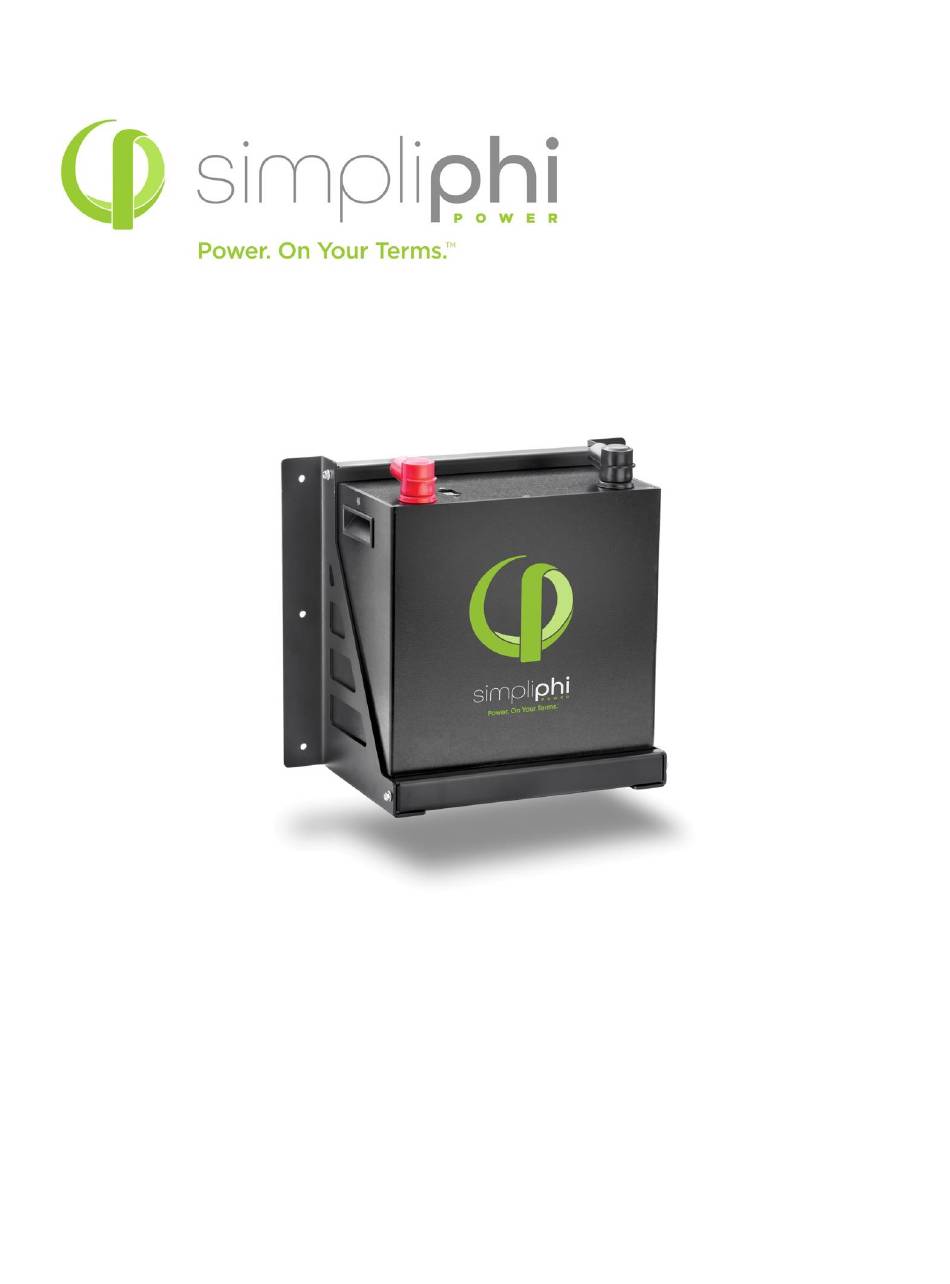

- Page 1 SOL-ARK INTEGRATION GUIDE SIMPLIPHI POWER PHI BATTERIES...
-
Page 2: Table Of Contents
Limited to Load Time of Use / Energy Arbitrage Off-Grid Generators Smart Load 6. SPECIFICATIONS & WARRANTY 7. SIMPLIPHI TECHNICAL SUPPORT SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93030, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com REV091919... -
Page 3: Introduction
Contact SimpliPhi Power Technical Support (805-640-6700; techsupport@simpliphipower.com) regarding any compatibility questions for products not listed in this guide. SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93030, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com REV091919... -
Page 4: Phi Battery Bank-To-Inverter Connection
Sol-Ark Install Guide Owner’s Manual). Do not install the Battery Temperature Sensor. The PHI Batteries require no temperature compensation. SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93030, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com... -
Page 5: Battery Bank Sizing
While the programming features of the Sol-Ark allow for battery discharging and charging according to specifically set parameters (refer to Section 4 of this Guide), the Sol-Ark does not limit the batteries’ maximum discharge current (Max A Discharge) in an off-grid or grid-failure scenario. -
Page 6: Charge Calculation: Ac Coupled Systems
Charge Calculation: DC Coupled Systems While the PHI battery bank’s charge rate in a DC Coupled system can be limited via Sol-Ark programming (Max A Charge), consider the PHI battery bank’s maximum continuous charge rate in the system’s design. -
Page 7: Program Settings For Phi Batteries
A PHI battery bank utilizing the entire DC Coupled solar PV output potential has 5 batteries. However, programming the Max A Charge in the Sol-Ark to 150 A (4 × 37.5 ADC) would prevent the over-charging of a battery bank that includes only 4 batteries (refer to Section 4 of this Guide for complete programming details). -
Page 8: Inverter And Charger Settings
Figure 2 – Sol-Ark Home Screen (Touchscreen), from the Sol-Ark Installation Manual Figure 3 – Sol-Ark System Setup Screen, from the Sol-Ark Installation Manual SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93030, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com... - Page 9 Float V 54 V Absorption V 54.4 V 54.4 V 56 V 56 V Equalization V 30 days 2 hours SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93030, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com REV091919...
- Page 10 SoC, at which point the generator turns off. This 95% SoC parameter is not programmable. A refers to the maximum charge rate from the grid or the generator. If the Sol-Ark is connected to both the grid and a standby generator, the Sol-Ark prioritizes the grid as the batteries’ charging source. Programming the A value to the maximum value versus the reduced-stress value does not impact the PHI Battery Warranty.
-
Page 11: Grid Setup
Smart Loads are powered via solar and/or batteries when the batteries’ SoC level exceeds this programmed Smart Load ON Batt value. 10. The Sol-Ark stops charging the batteries and powering the loads from the AC Coupled solar PV array once the batteries’ SoC level reaches the Smart Load OFF Batt value. - Page 12 10,260 WAC 10,260 WAC* *Limited by the Sol-Ark to 8,000 WAC in Off-Grid mode and 9,000 WAC in Grid-Tie mode. SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93030, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com REV091919...
-
Page 13: Use Cases & Application Notes
However, refer also to the Sol-Ark Manual for all installation requirements relevant to the application at hand. SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93030, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com... - Page 14 Grid Input > FreqVolt tab refer to the Sol-Ark Manual for Puerto Rico or Kauai-specific settings SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93030, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com REV091919...
-
Page 15: Ac Coupled
Load tab of the Battery Setup menu must be checked: Figure 5 – Smart Load Tab in Batt Setup menu The Sol-Ark-8K is limited to a maximum of 7 kW of AC Coupled solar PV, and the Sol-Ark-12K is limited to 7.6 kW of AC Coupled solar. -
Page 16: Limited To Home
Limited to Home Checking the Limited power to Home box in the Limiter tab of the Sol-Ark’s Grid Setup / Grid Param menu allows for all loads* (on both the critical loads sub-panel and the main house breaker panel) to be powered using the connected solar PV and/or batteries. -
Page 17: Time Of Use / Energy Arbitrage
(see Figure 7). Figure 7 – Limiter Tab in Grid Setup menu SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93030, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com... -
Page 18: Off-Grid
Do not use the Sol-Ark’s Grid Sell and Limited to Home modes in an off-grid system setup. Check the Limited power to load box in the Limiter tab of the Sol-Ark’s Grid Setup / Grid Param menu to allow for the batteries’ power to discharge to the connected loads. -
Page 19: Smart Load
. With both the Smart Load and Limited to Load modes enabled and the Smart Load ON Batt parameter set to 100% SoC, the Sol-Ark will begin powering the Smart Loads (in addition to all the home loads) when the batteries are at 100% SoC. If the Smart Load power draw exceeds 9.168 kW , (38.2... -
Page 20: Specifications & Warranty
For technical support related to your PHI Battery (or other SimpliPhi Power products), please contact us directly at: 805.640.6700 techsupport@simpliphipower.com SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93030, USA | (805) 640-6700 | info@simpliphipower.com | SimpliPhiPower.com REV091919...
