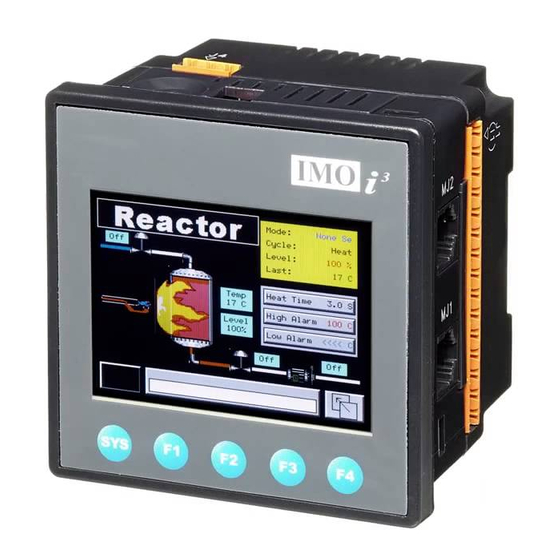

IMO i3 User Start-Up Manual

3
i
User Start-up Guide
Getting Started:
1. Connect the 24VDC power as shown on the connector
below.
3
2. Install i Configurator onto your PC.
3. Connect serial programming cable into port MJ1 port.
4. If using a USB to serial convertor (PC501), please check
in Window Device Manager which com port has been
assigned. Then enter menu Tools->Editor Options->
Communications port->Configure, and set accordingly.
5. Press the 'SYS' key on the front of the unit and check
Network ID. Then press the target sign
Configurator and make the Target ID match that of the i
WARNING: Please ensure power is ON and i
mode before inserting SanDisk™ MicroSD.
Serial Ports
MJ1 / MJ2
MJ1 Serial Port Pin Assignments
Pin Signal Signal Description
1
8 TD RS-232 Transmit Data
1
7 RD RS-232 Receive Data
6 0V Ground
5 +5 +5 VDC 60mA max
1
4 RTS RS-232 Request to Send
1
3 CTS RS-232 Clear to Send
2 RX/TX− Receive/Transmit Negative
1 RX/TX+ RS-485 Receive/Transmit Positive
1
Signals are labeled for connection to a DTE device
MJ2 RS485 Connection Examples:
MJ2 - Full Duplex Mode
Pin
Signal
8 -
7 -
6 0V
5 -
4 TX-
3 TX+
2 RX-
1 RX+
in the
3
3
is in Idle
MicroSD
Card slot
External Jumper Configuration.
As seen when looking at the top of the i
DIPSW3: FACTORY USE
ONLY (tiny bootloader firmware
downloading). NOT FOR
NORMAL OPERATION.
DIPSW2: MJ2 Termination
(default – none)
DIPSW1: MJ1 Termination
(default – none)
MJ2 Serial Port Pin Assignments
Pin Signal
Direction
Out
1
8 TD RS-232 Transmit Data
In 1
7 RD RS-232 Receive Data
-
6 0V Ground
Out
5 +5 +5 VDC 60mA max
In
4 TX- RS-485 Transmit Negative
Out
3 TX+ RS-485 Transmit Positive
In/Out
2 RX− RS-485 Receive Negative
In/Out
1 RX+ RS-485 Receive Positive
3
* +5 on i H/W Rev E and later
MJ2 - Half Duplex Mode
MJ2 Pins
Pin
Direction
8
-
- 7
Ground 6
5
-
OUT 4
3
OUT
2
IN
1
IN
i 3 B 1 2 Y /
1 3
C
1
4
Back cover screws. Remove
the 4 screws and back plate
to access the Internal
jumpers.
WARNING: Do not Over-
tighten screws.
3
unit
Signal Description Direction
Out
In
-
Out
In
Out
In
In
MJ2 Pins
Signal Direction
- -
- -
0V Ground
- -
- -
- -
TX-/RX- IN/OUT
TX+/RX+ IN/OUT
- 1 -
Panel Cut out
.
160x128 Touch Display, 4 programmable keys
12 Digital Inputs (4 HSC + Universal Analogues)
2 Analogue Inputs (14-bit)
2 Analogue Outputs (12 bit)
12 Digital Outputs (2 PWM)
- S C H 2 Serial Ports, 1 CAN port, iCAN Protocol
A CANopen Protocol
F MicroSD Card
CAN Connector
1 – V+
2 – CN_H
3 – SHIELD
4 – CN_L
5 – V-
WARNING: After installing CANopen
firmware, part number suffix becomes
SCAF. See CANopen Application Note
for more details.
Power Connector
Power Up:
1 - Positive
Connect to Earth Ground.
2 - Negative
Apply 10 - 30 VDC.
3 - Ground
Screen lights up.
This equipment is suitable for use in Class I, Division 2,
Groups A, B, C and D or Non-hazardous locations only
WARNING: EXPLOSION HAZARD –
equipment unless power has been switched off or the area is known to
be non-hazardous.
- RISQUE D'EXPLOSION -
AVERTISSEMENT
DE DECONNECTOR L'EQUIPMENT, COUPER LE COURANT OU
S'ASSURER QUE L'EMPLACEMENT EST DESIGNE NON
DANGEREUX.
WARNING:
To avoid the risk of electric shock or burns, always
connect the safety (or earth) ground before making any other
connections.
WARNING:
To reduce the risk of fire, electrical shock, or physical
injury it is strongly recommended to fuse the voltage measurement
inputs. Be sure to locate fuses as close to the source as possible.
WARNING
: Replace fuse with the same type and rating to provide
protection against risk of fire and shock hazards.
WARNING
: In the event of repeated failure, do not replace the fuse
again as a repeated failure indicates a defective condition that will not
clear by replacing the fuse.
WARNING: EXPLOSION HAZARD –
components may impair suitability for Class I, Division 2
AVERTISSEMENT - RISQUE D'EXPLOSION -
SUBSTITUTION DE COMPOSANTS PEUT RENDRE CE
MATERIAL INACCEPTABLE POUR LES EMPLACEMENTS DE
CLASSE 1, DIVISION 2
WARNING: EXPLOSION HAZARD
- BATTERIES MUST
ONLY BE CHANGED IN AN AREA KNOWN TO BE NON-
HAZARDOUS
AVERTISSEMENT - RISQUE D'EXPLOSION -
D'EVITER TOUT RISQUE D'EXPLOSION, S'ASSURER QUE
L'EMPLACEMENT EST DESIGNE NON DANGEREUX AVANT
DE CHANGER LA BATTERIE
WARNING:
Battery May Explode If Mistreated. Do Not Recharge,
Disassemble or Dispose Of In Fire
WARNING: Only qualified electrical personnel familiar with the
construction and operation of this equipment and the hazards involved
should install, adjust, operate, or service this equipment. Read and
understand this manual and other applicable manuals in their entirety
before proceeding. Failure to observe this precaution could result in
severe bodily injury or loss of life.
i3B_IBD5F REV4_0909
3.622 [92mm]
Do not disconnect
