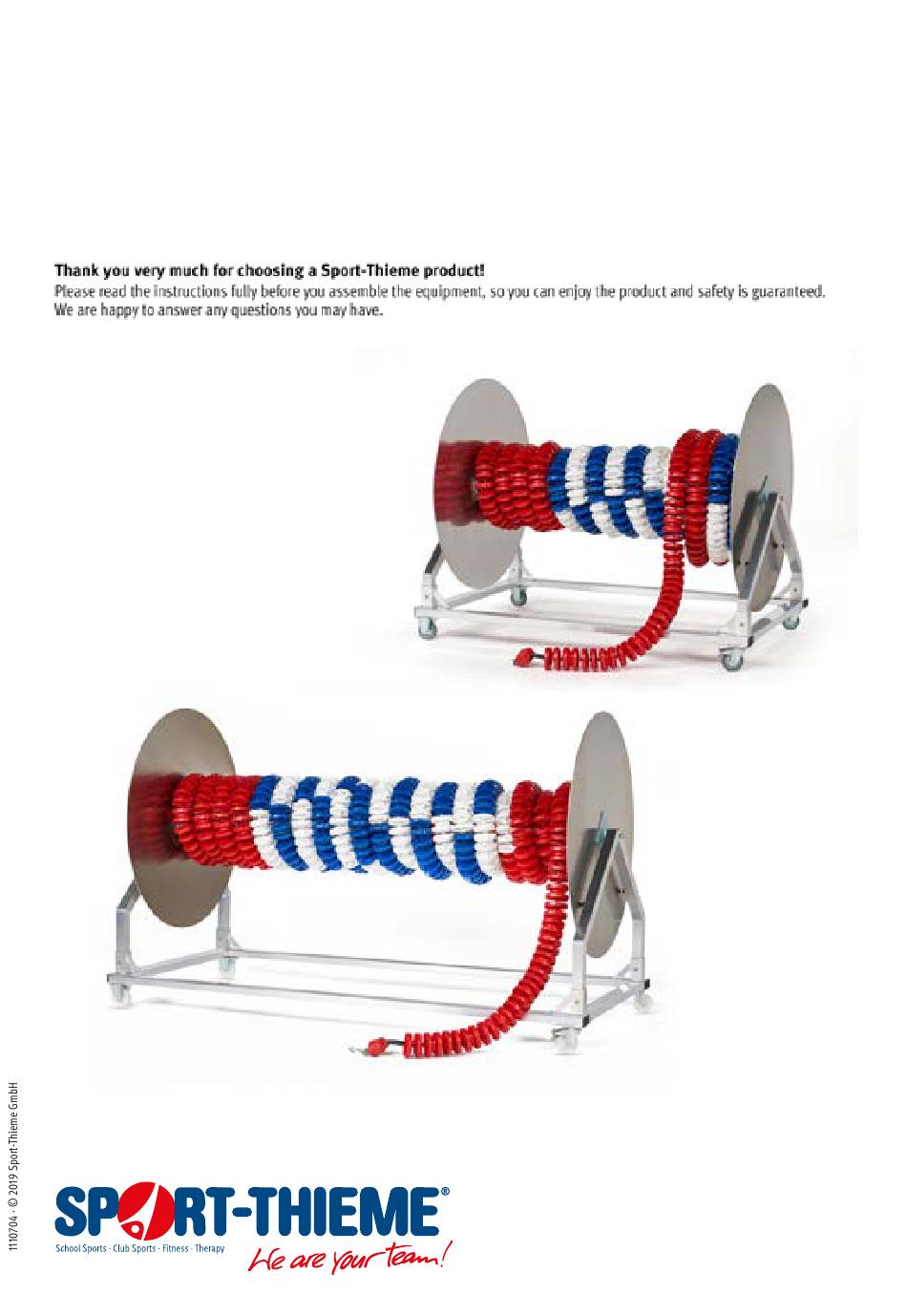

- Page 1 Assembly Manual Art.-Nr. 114 5700 114 5726 Sport-Thieme ® Swimming Line Trolleys Art.-Nr. 114 5700 Art.-Nr. 114 57026 D-38367 Grasleben · Germany sport-thieme.com · info @sport-thieme.com Phone: +49 53 57 181 543 · Fax: +49 53 57 181 921...
-
Page 2: Scope Of Delivery

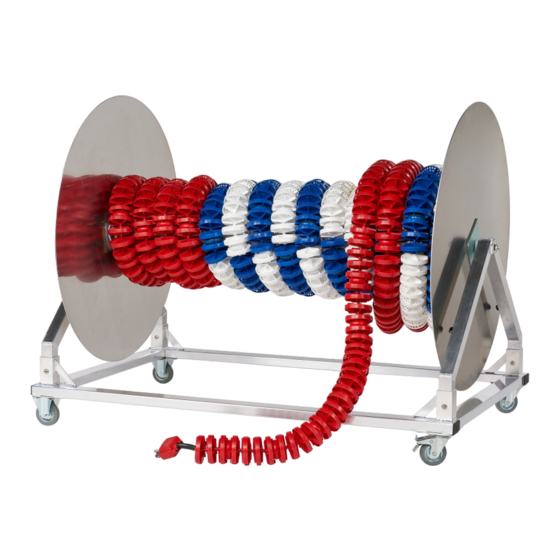

Assembly Manual for Art.-Nr. 114 5700/5726 1. Scope of delivery: Please check the following content before assembly. Total content: 1 base frame 2 side parts 2 round side parts of reel 1 reel tube 1 accessories Wheels with Art.Nr. 114 5700: Wheels with Art.Nr. - Page 3 Assembly Manual for Art.-Nr. 114 5700/5726 2. Assembly of lane marker trolley: We recommend the assembly on a suitable surface to avoid damages of the profiles! Preparation: Open crate and unpack all parts. The following tools are necessary: gloves 2 combination wrenches 13 mm 1 hammer/mallet 1 drill Ø...
- Page 4 Assembly Manual for Art.-Nr. 114 5700/5726 4. Assembly of reels: (fort he assembly 2 persons are necessary) At first screw 2 nuts M8, DIN 934 on 2 threaded eyes M8x25mm. Place reel tube on a suitable construction (supports, table or similar, height approx.
- Page 5 Assembly Manual for Art.-Nr. 114 5700/5726 5. Assembly of side part: Stick polyamide liners on the plugs. Then push both side parts one after the other on the polyamide liners. One side part is equipped with a welded sleeve to lock the reel later. Screw and tighten prepared screwing devices in the threads at the plug plates.
- Page 6 Assembly Manual for Art.-Nr. 114 5700/5726 7. Assembly of reel lock: For safety reasons during transport the trolley is equipped with a reel lock and to avoid unrolling of lane markers. A sleeve with thread M8 is welded on one of the reel supports. Bore a hole for the lock through the sleeve with drill Ø...
- Page 7 Assembly Manual for Art.-Nr. 114 5700/5726 8. Maintenance and safety instrucitons: Check screws regularly and change damaged and wearing parts if need be. Take care that during use the trolley is located on a horizontal surface and the guide roller is locked. Permanent contact with water may cause damages of aluminium parts and other material components.
