Item Checklist
-
Venetian Blind
-
Brackets & Screws
Fibro
-
Use the provided
screws
Once your location and
.
mounting style has been
determined, review the area,
confirming that you have a
clear span for the
entire width of the awning
with no light fixtures,
spouting, doors that open
out (onto the deck or patio)
or any other obstructions.
Step 1:
Installing Vertical Awning
Tools Required
-
-
-
-
Fixing Type
Timber
-
Use the provided
screws
Cordless Drill (with Hammer
capability if masonry wall)
#2 Phillips Head drill bit.
Metal Tape Measure
Pencil
Concrete, Brick or Stone
-
12 G x 50mm
Exterior Screw
-
Green Wall Plugs x
50mm
-
6.5mm Masonry
Drill Bit.
(These items need to be
purchased separately)
Advertisement
Related Manuals for Baha Vertical Awning
Summary of Contents for Baha Vertical Awning

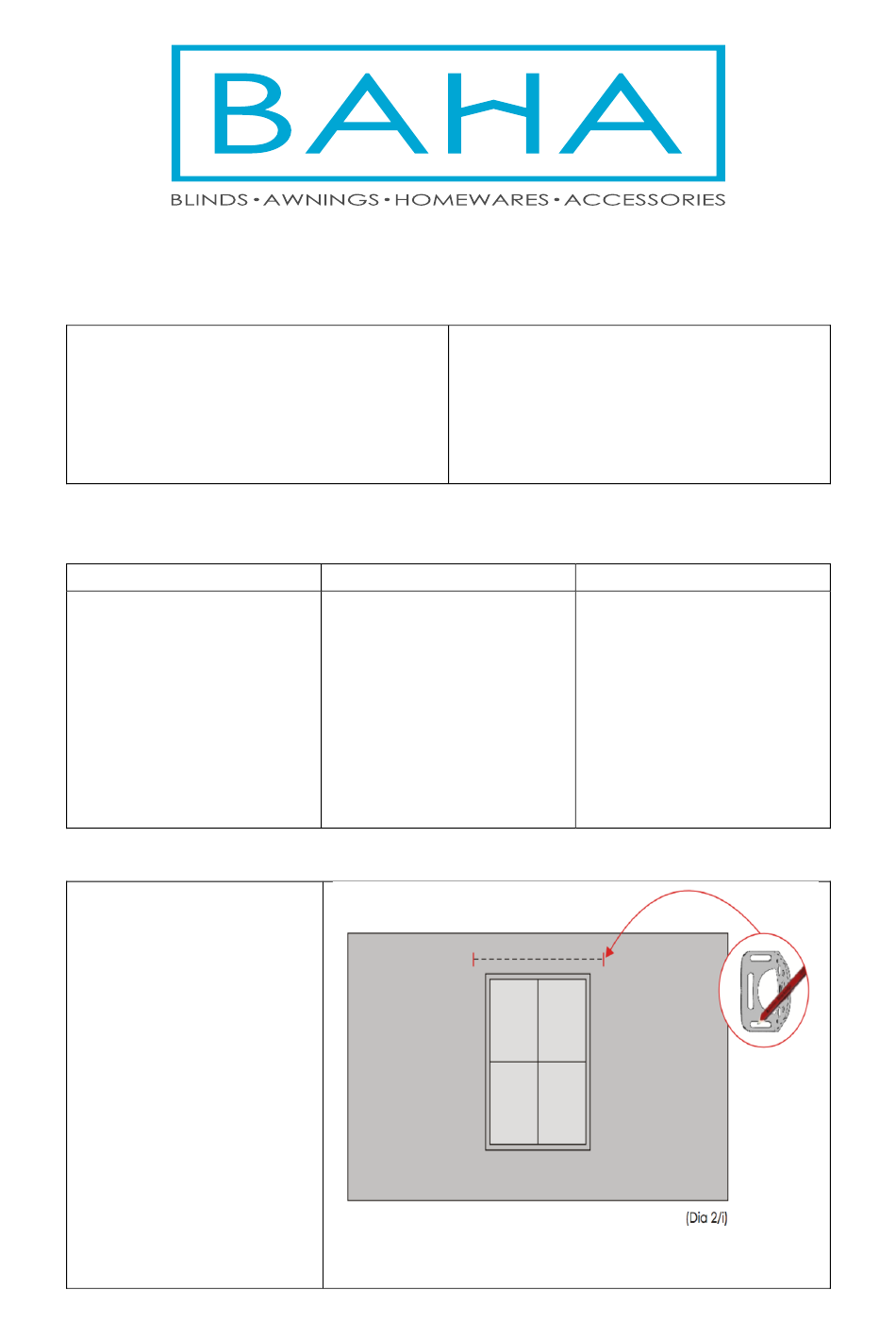

- Page 1 Installing Vertical Awning Item Checklist Tools Required Venetian Blind Cordless Drill (with Hammer Brackets & Screws capability if masonry wall) #2 Phillips Head drill bit. Metal Tape Measure Pencil Fixing Type Fibro Timber Concrete, Brick or Stone Use the provided Use the provided 12 G x 50mm screws screws Exterior Screw Green Wall Plugs x 50mm 6.5mm Masonry Drill Bit. (These items need to be purchased separately) Once your location and mounting style has been determined, review the area, confirming that you have a clear span for the entire width of the awning with no light fixtures, spouting, doors that open out (onto the deck or patio) or any other obstructions. Step 1:...
- Page 2 Hold the bracket up at the required mounting position and mark the required holes. Fix this bracket to wall. Then use a string line, a level and tape measure to determine the location of the other bracket. Step 2: Once the brackets have been installed. Its time to insert the awning into the brackets. Put the “Square Drive” section into the brackets first. Then slide the pin into the cradle on the non-control side.
- Page 3 Attach Lock-Downs Then wind down the blind and mark the locations where the clips need to be positioned. Your Awning is now professionally installed and you just saved on the installation expense! BAHA offer a 5-year warranty on your new blinds. Please see further details on our webpage. For further information please contact our customer service team Monday to Friday 9am to 5pm Phone: 1800 039 171 or Email: sales@baha.com.au...
