CRU WiebeTech Forensic UltraDock FUDv5.5 Quick Start Manual

Product Models Forensic UltraDock (Model: FUDv5.5)
U.S. Patent No. 8,090,904
Drive Interface Types & Speeds PATA/IDE: up to 133 MB/s
SATA (with eSATA cable): up to 6 Gbps
Host Interface Types & Speeds eSATA: up to 6 Gbps
USB 3.0: up to 5 Gbps
FireWire 800: up to 800 Mbps
USB Micro-B: up to 480 Mbps (Admin configuration only)

Drive Types Supported

2.5" and 3.5" rotational and solid state SATA drives
3.5" rotational IDE/PATA drives
2.5" rotational IDE/PATA drives*, Hitachi 1.8" drives*, Toshiba 1.8" drives*, Mac-
Book Air 2010*, MacBook Air 2011*, mSATA*, mini PCIe PATA*, mini PCIe SATA*,
mini PCIe USB*
*Requires the appropriate CRU SATA or PATA adapter

Host Data Connectors

One (1) USB 3.0 connector (backwards compatible with USB 2.0)
One (1) eSATA connector
Two (2) FireWire 800 connectors

Supported Operating Systems

Windows 10, 8, 7 , and Vista
Windows Server 2012 and 2008 product families
Mac OS X 10.4.x or higher (USB 3 requires 10.8 or later)
Linux distributions that support the connection type used

Compliance

EMI Standard: FCC Part 15 Class A, CE
EMC Standard: EN55022, EN55024
RCM

Product Weight

0.4 pounds (0.18 kg)

Product Dimensions

2.95" x 4.33" x 1.06" (75mm x 110mm x 27mm)
Technical Support Your investment in CRU products is backed up by our free technical support for the
lifetime of the product. Contact us through our website,
us at 1-800-260-9800 or +1-360-816-1800.
© 2015, 2017 CRU Acquisition Group LLC, ALL RIGHTS RESERVED. CRU
are protected by trademark law.

Product Warranty

CRU warrants this product to be free of significant defects in material and workmanship for a period of two years from the original date of pur-
chase. CRU's warranty is nontransferable and is limited to the original purchaser.
Limitation of Liability
The warranties set forth in this agreement replace all other warranties. CRU expressly disclaims all other warranties, including but not limited
to, the implied warranties of merchantability and fitness for a particular purpose and non-infringement of third-party rights with respect to the
documentation and hardware. No CRU dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty.
In no event will CRU or its suppliers be liable for any costs of procurement of substitute products or services, lost profits, loss of information
or data, computer malfunction, or any other special, indirect, consequential, or incidental damages arising in any way out of the sale of, use of,
or inability to use any CRU product or service, even if CRU has been advised of the possibility of such damages. In no case shall CRU's liability
exceed the actual money paid for the products at issue. CRU reserves the right to make modifications and additions to this product without notice
or taking on additional liability.

FCC Compliance Statement:

"This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation. "
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at this own expense.
In the event that you experience Radio Frequency Interference, you should take the following steps to resolve the problem:
1) Ensure that the case of your attached drive is grounded.
2) Use a data cable with RFI reducing ferrites on each end.
3) Use a power supply with an RFI reducing ferrite approximately 5 inches from the DC plug.
4) Reorient or relocate the receiving antenna.
Part Number: A9-000-0057-1 Rev. 1.2
cru-inc.com/support
® and WiebeTech ® are trademarks of CRU Acquisition Group, LLC and
FOR OFFICE OR COMMERCIAL USE
Protecting Your Digital Assets
CRU WiebeTech
®
or call
Quick Start Guide

Features

• Provides write-blocked access to attached drives
• Four separate host attachment options (USB 3.0, USB 2.0, FireWire 800, and eSATA)
for compatibility with virtually any computer
• Multiple LEDs indicate operational status, including disk activity, hidden area
detection, error state, and the status of power input and output
• LCD menu allows user to configure settings and view information on attached drives
• Detects and indicates hidden areas (HPAs or DCOs) found on hard drives
• Able to temporarily or permanently unhide HPAs and DCOs
• Aluminum case for rugged durability and excellent heat dissipation
• Compatible with forensic acquisition and analysis software
TM

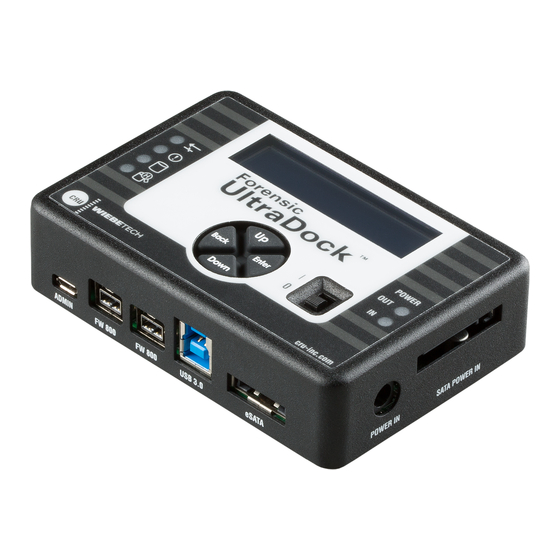

Forensic UltraDock
®
