Quick Start Guide
Features
• External enclosure for use with DP20 removable drive carriers
• Use DP20 carriers with a computer that cannot support a DP20 frame
• Perfect for on-the-go use
• Supports 7mm or 9.5mm hard drives and SSDs
• Docking connection rated for tens of thousands of insertions
• Fast and efficient drive swapping
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CRU DataPort DP20
Summary of Contents for CRU DataPort DP20
-
Page 1: Quick Start Guide

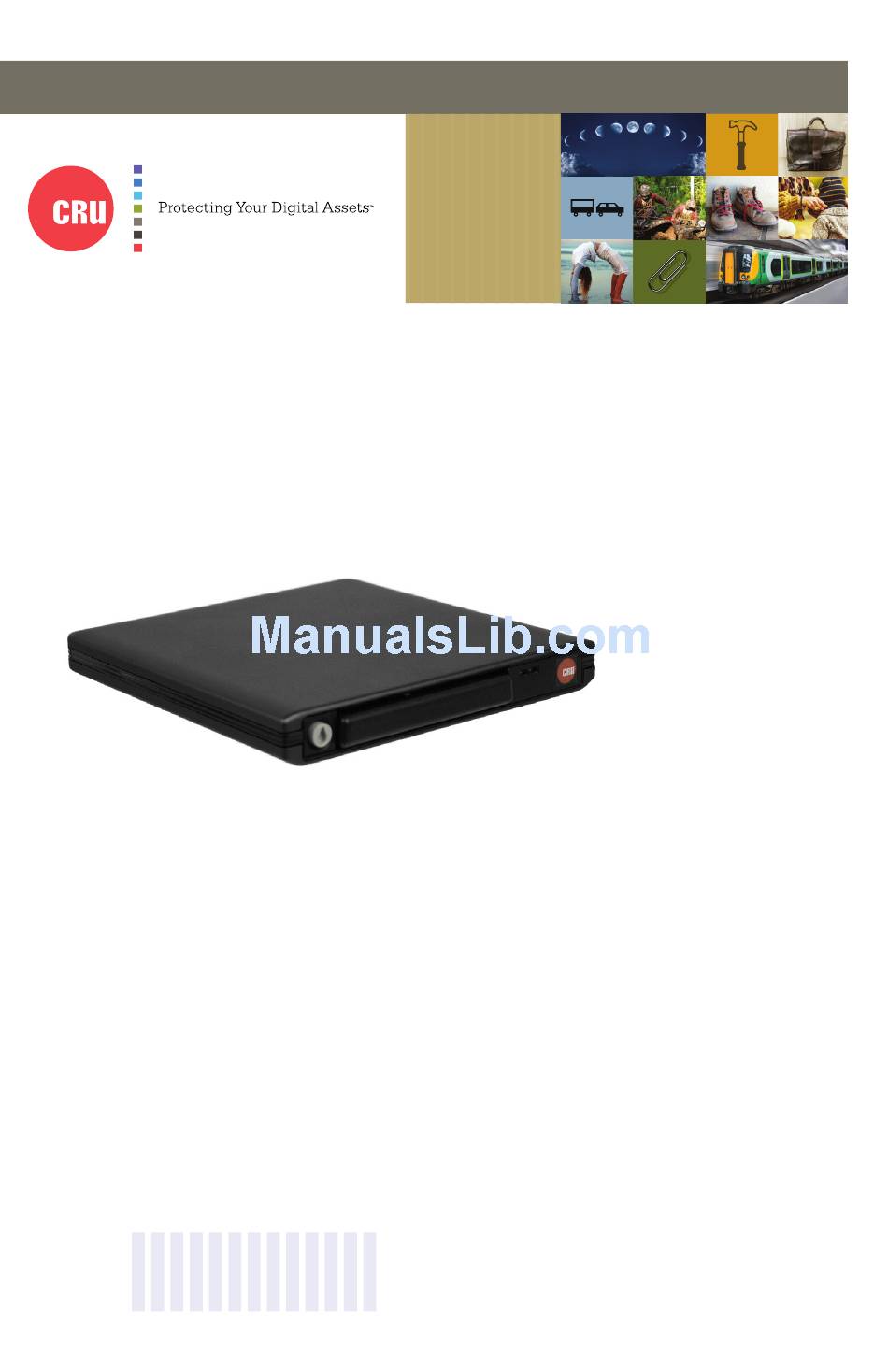

DataPort DP20 Dock ® ® Quick Start Guide Features • External enclosure for use with DP20 removable drive carriers • Use DP20 carriers with a computer that cannot support a DP20 frame • Perfect for on-the-go use • Supports 7mm or 9.5mm hard drives and SSDs • Docking connection rated for tens of thousands of insertions • Fast and efficient drive swapping... - Page 2 CRU DataPort DP20 Dock Quick Start Guide 1 LED BEHAVIOR COLOR STATE DESCRIPTION Drive Power Green Solid The drive inside the bay is powered on. The drive inside the bay is being accessed by your Blinking computer. Drive Activity Amber Solid The drive you are using does not support the drive activity feature. 2 FRAME INSTALLATION You only need to follow the steps in this section if you have purchased an open bay (no frame) version of the DP20 Dock. Line up your DP20 frame squarely with the dock enclosure and then push it slowly back into the dock until the frame clicks into place. The front of the frame should be nearly flush with the front of the dock. You can optionally install any 12.7mm slimline optical disc drive into the enclosure. 3 HARD DRIVE INSTALLATION The DP20 Dock supports 2.5” SATA hard drives and solid state drives that are 7mm or 9.5mm in height. a. Carrier side caps are packaged within the carrier and are marked “left” and “right” as viewed from the logo end of the carrier. The “back” mark indicates the connector end of the hard...
- Page 3 CRU DataPort DP20 Dock Quick Start Guide c. You may optionally lock the drive carrier into the frame. Insert the plastic key into the ejection button and turn the key 90 degrees clockwise. Your DP20 Dock is now ready to use! If the hard drive is already formatted, it can be used right away. If the hard drive is brand new, or its format is not compatible with your computer, the drive will need to be formatted before being used. Note that formatting a drive will erase all data on the drive, so be sure to back up your data before beginning this operation. 4 EJECTING A CARRIER a. Ensure that the drive is unmounted safely from your computer.
- Page 4 One (1) USB 3.0 micro-B connector Supported Operating Systems Windows 10, 8, 7 , and Vista Windows Server 2016, 2012 and 2008 product families OS X/macOS 10.10 “Yosemite” or newer Linux distributions that support the connection type used Torque 2.5” drives, M3 screws: 4 inch-pounds max. Compliance EMI Standard: FCC Part 15 Class B, CE EMC Standard: EN55022, EN55024 RoHS Product Weight 0.64 pounds (0.29 kg) enclosure only 1.64 pounds (0.74 kg) with DataPort 20 frame and carrier, no drives Product Dimensions 5.71” W x 5.95” L x 0.77” H (145mm W x 151mm L x 19.5mm H) Technical Support Your investment in CRU products is backed up by our free technical support for the lifetime of the product. Contact us through our website, cru-inc.com/ support or call us at 1-800-260-9800 or +1-360-816-1800. ©2016 CRU Acquisition Group LLC, ALL RIGHTS RESERVED. CRU and DataPort are trademarks of CRU Acquisition Group, LLC and ® ® are protected by trademark law. Product Warranty CRU warrants this product to be free of significant defects in material and workmanship for a period of two years from the original date of purchase. CRU’s warranty is nontransferable and is limited to the original purchaser. Limitation of Liability The warranties set forth in this agreement replace all other warranties. CRU expressly disclaims all other warranties, including but not lim- ited to, the implied warranties of merchantability and fitness for a particular purpose and non-infringement of third-party rights with respect to the documentation and hardware. No CRU dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty. In no event will CRU or its suppliers be liable for any costs of procurement of substitute products or services, lost profits, loss of information or data, computer malfunction, or any other special, indirect, consequential, or incidental damages arising in any way out of the sale of, use of, or inability to use any CRU product or service, even if CRU has been advised of the possibility of such damages.
