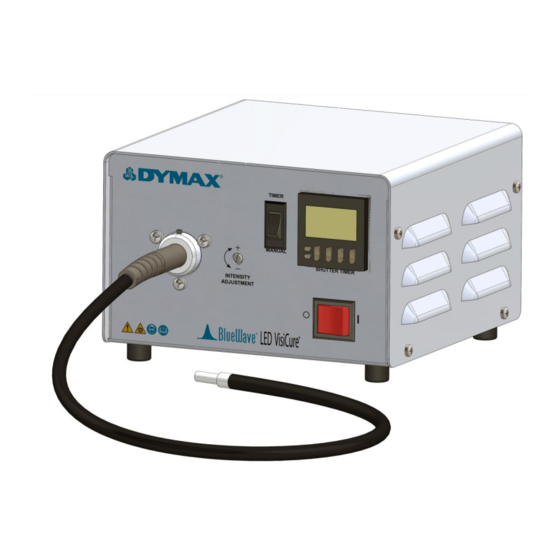

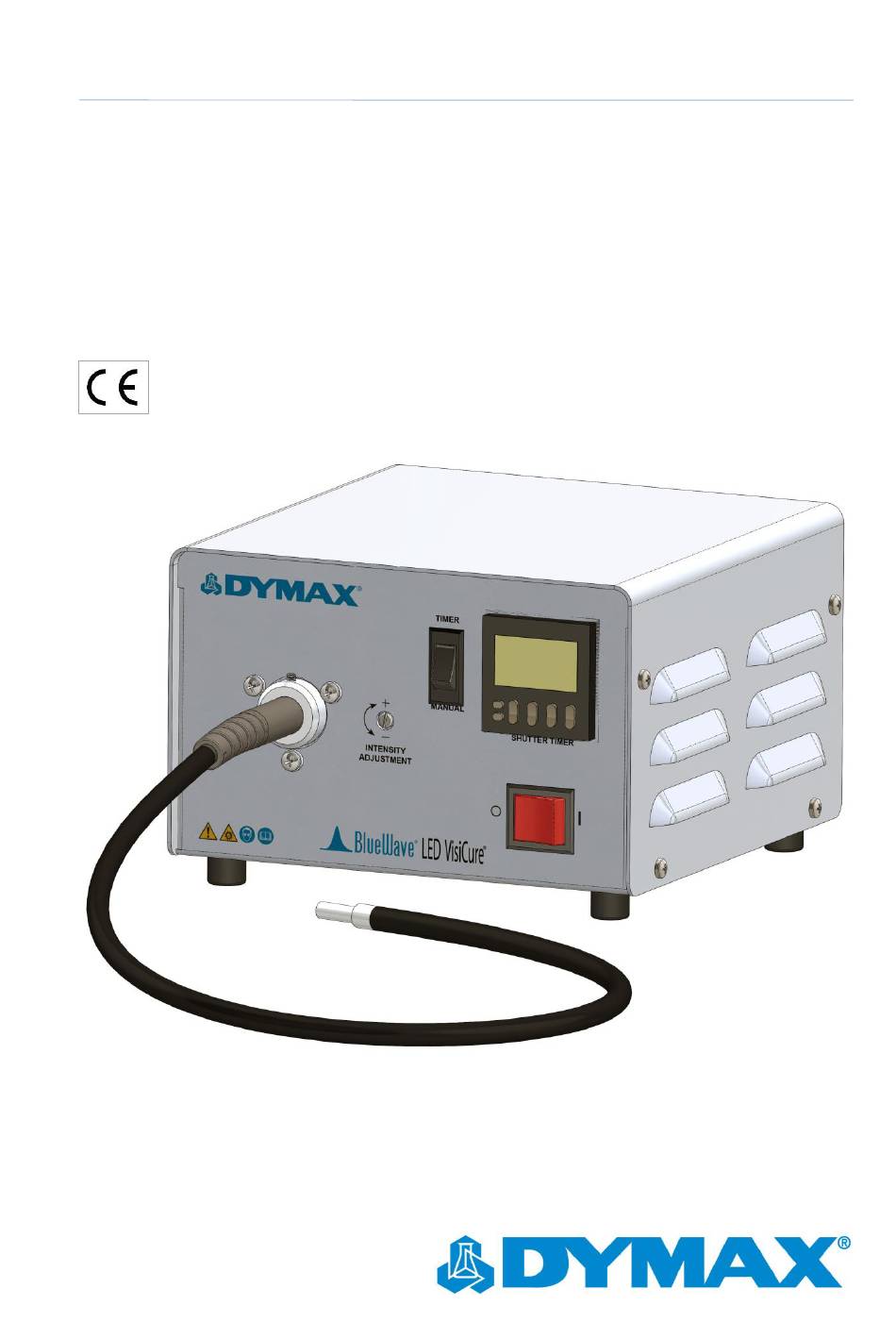

- Page 1 BlueWave LED VisiCure User Guide ® ® LED Spot-Curing System ■ Instructions for Safe Use ■ Setup and Operation ■ Maintenance ■ Ordering Spare Parts and Accessories...
- Page 2 System designs enable stand-alone configuration or integration into your existing assembly line. Please note that most dispensing and curing system applications are unique. Dymax does not warrant the fitness of the product for the intended application. Any warranty applicable to the product, its application, and use is strictly limited to that contained in the Dymax standard Conditions of Sale.
-
Page 3: Table Of Contents
Introduction to the User Guide ..........................4 Where to Get Help ..............................4 Safety ............................... 4 Safety Symbol Index ..............................5 Dymax Light-Curing System Safety Considerations ....................5 Product Overview ............................ 7 Description of the BlueWave LED VisiCure ......................7 Intensity Control Feature ............................7 Validation ................................ -
Page 4: Introduction
Intended Audience Dymax prepared this user guide for experienced process engineers, technicians, and manufacturing personnel. If you are new to UV light curing and do not understand the instructions, contact Dymax Application Engineering to answer your questions before using the equipment. -
Page 5: Safety Symbol Index
Light Exposure Figure 1. Light Spectrum Standard Dymax VisiCure systems have been designed to primarily emit visible light (as shown in Figure 1). Although OSHA does not currently regulate visible or ultraviolet-light exposure in the workplace, the American Conference of Governmental Industrial Hygienists (ACGIH) does recommend Threshold Limit Values (TLV’s) for ultraviolet light. - Page 6 Empirical testing should be used to verify the exact temperature rise in each application. Ozone The Dymax BlueWave LED VisiCure does not generate UVB or UVC, therefore no ozone is generated while operating this equipment. Bright, Visible Light The bright, visible light energy emitted by curing systems can cause eye strain if proper eye protection or shielding is not used.
-
Page 7: Product Overview
Both the lower working temperature and lack of spurious frequency transmission that this system produces make it even more user friendly. Contact your Dymax representative for information regarding the proper use of Dymax curing systems. -
Page 8: Validation
Open each box and check for equipment damage. If parts are damaged, notify the shipper and submit a claim for the damaged parts. Contact Dymax so that new parts can be shipped to you immediately. -
Page 9: Parts Included In The Bluewave Led Visicure Spot Lamp System
Dymax BlueWave® LED VisiCure® User Guide Check that the parts included in your order match those listed below. If parts are missing, contact your local Dymax representative or Dymax Customer Support to resolve the problem. Parts Included in the BlueWave LED VisiCure Spot Lamp System ■... -
Page 10: Installation & System Interconnect
■ Visually inspect the two ends of the Lightguide to verify that no foreign material is present. NOTE: Dymax liquid-filled lightguide ends can be cleaned with isopropyl alcohol to remove foreign material and outgassing deposits. Fully insert the large end of the Lightguide into the Lightguide Mount on the front panel. - Page 11 Dymax BlueWave® LED VisiCure® User Guide NOTE: Multi-pole lightguides should be checked for leg-to-leg output uniformity. Rotate the lightguide to verify the desired intensity of each leg before tightening the set screw. ■ The Lightguide is now installed and ready for use. The end of the Lightguide should be periodically cleaned with isopropyl alcohol.
-
Page 12: Operation
Dymax BlueWave® LED VisiCure® User Guide Operation The BlueWave LED VisiCure will arrive almost fully assembled. Please refer to the installation section of this manual for installation of the lightguide, power cord, and footswitch. The system should be positioned in a dry location that does not obstruct airflow around the unit. -
Page 13: 9-Pin Connector I/O Signals
If the condition persists, consult Dymax Customer Service for further assistance. If the lightguide is not fully seated into the unit, or if it becomes dislodged by as little as ⅛" from the Lightguide Mount, the Safety Interlock Switch will terminate power to the LED. -
Page 14: Output Signals
Dymax BlueWave® LED VisiCure® User Guide Pin 3 – Shutter In: This signal line may be used to remotely activate the BlueWave LED VisiCure. When it is being used, the local footswitch on the rear of the BlueWave LED VisiCure box is still capable of operating the unit. -
Page 15: Cleaning And Maintenance
Dymax BlueWave® LED VisiCure® User Guide This output can be used to verify step or ramped changes in the intensity for customized profiles, or to alert the remote controller when the system has reached maximum intensity in a closed-loop system. -
Page 16: Fan Filter
The unit is supplied with two Fuses that are installed in the Power Receptacle. To remove the Fuses, unplug the unit and remove the Fuse Holder with a small screwdriver. Remove the Fuses from the Fuse Holder and install new Fuses. Replace the Fuses with 2.0 Amp fast-blow types (Dymax PN 37236 equivalent). -
Page 17: Troubleshooting
Dymax BlueWave® LED VisiCure® User Guide Troubleshooting WARNING: Only qualified maintenance personnel should attempt the following procedures. Table 1. Troubleshooting Chart for BlueWave LED VisiCure Problem Possible Cause Testing Corrective Action The unit’s LED There is an incorrect Visually inspect all Secure all connections. -
Page 18: Frequently Asked Questions
Dymax BlueWave® LED VisiCure® User Guide Frequently Asked Questions Q.) My BlueWave LED VisiCure will not turn on. A. Check the power cord connection. B. Check the fuses located where the power cord plugs into the unit. Q.) The LED will not light, but the unit is powered up. -
Page 19: Spare Parts And Accessories
Dymax BlueWave® LED VisiCure® User Guide Spare Parts and Accessories Options/Accessories Item Part Number Personal Protection Equipment Protective Goggles — Green 35286 Protective Goggles — Gray (standard model included with unit) 35285 Face Shield 35186 Radiometer Dymax ACCU-CAL™ 50-LED Radiometer (spot) -
Page 20: Specifications
Dymax BlueWave® LED VisiCure® User Guide Specifications Specifications Property Specification 41062 North American Version (standard 120V plug) 41063 Asian Version (Type G plug) Part Numbers 41064* Unit without a power cord † Total (280-450 nm) 16.8 W/cm typical Visible ‡... - Page 21 – The invisible region of the spectrum just beyond the violet end of the visible region. Wavelength ranges in general from 1-400 nm. Dymax bulbs (burners) do not radiate energy in deep Ultraviolet; there are very minute amounts below 220 nm and practically nothing can be sensed below 200 nm.
-
Page 22: Warranty
Dymax BlueWave® LED VisiCure® User Guide Warranty From date of purchase, Dymax Corporation offers a one-year warranty against defects in material and workmanship on all system components (excluding bulbs, LEDs, and Lightguides) with proof of purchase and purchase date. Unauthorized repair, modification, or improper use of equipment may void your warranty benefits. -
Page 23: Index
Dymax BlueWave® LED VisiCure® User Guide Index Assembly and Setup, 8 Product Overview, 7 Cable Connections, 10 Safety, 4 Cleaning, 15 Safety Symbol Index, 5 Contact Information, 4 Safety of UV Light Bright Visible Light, 6 Curing System Safety, 5... - Page 24 The data contained in this bulletin is of a general nature and is based on laboratory test conditions. Dymax Europe GmbH does not warrant the data contained in this bulletin.
