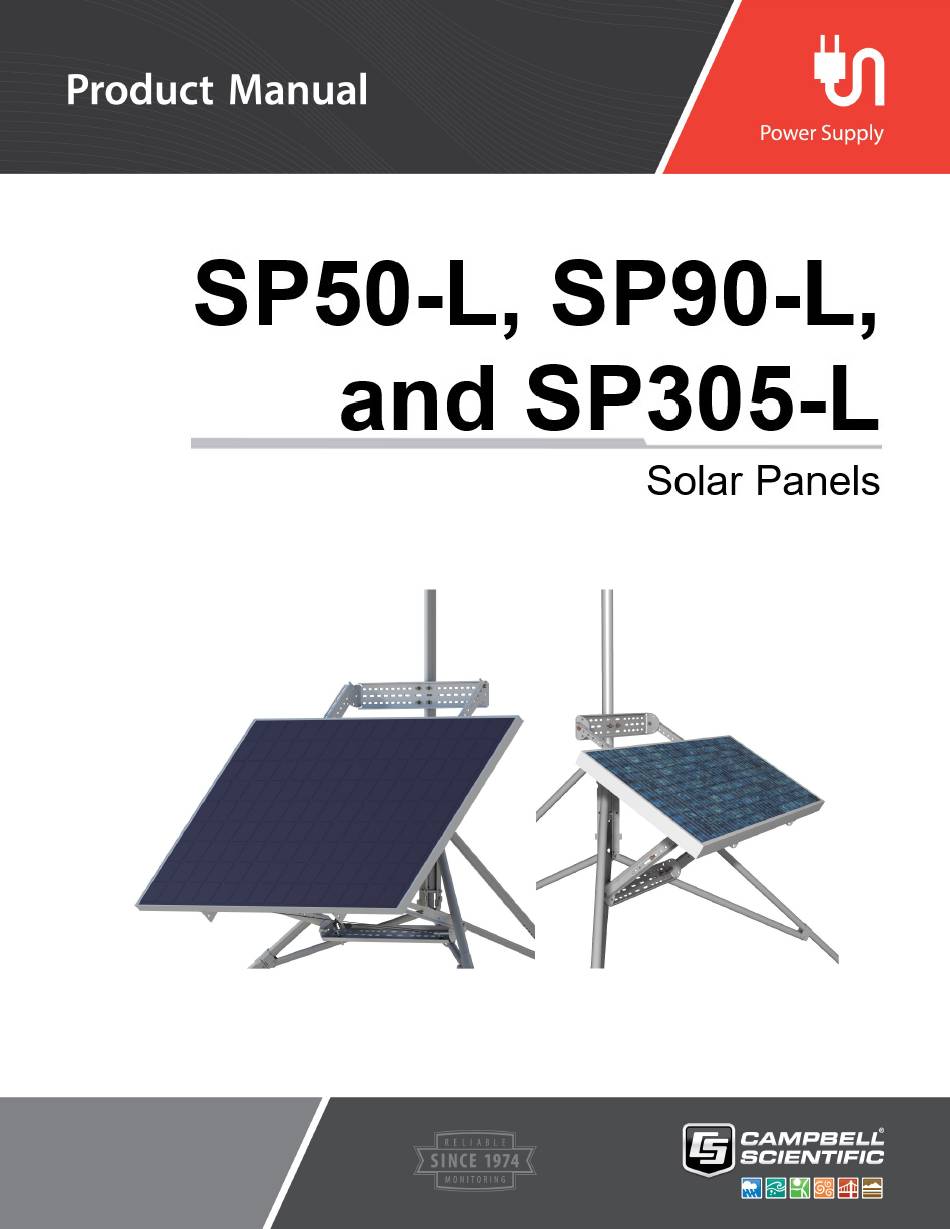

  • Page 1 Revision: 10/2020 Copyright © 1987 – 2020 Campbell Scientific, Inc.

  • Page 2: Table Of Contents

    Table of contents 1. Introduction 2. Specifications 3. Installation 3.1 Tool list 3.2 SP50-L/SP90-L extended mount assembly 3.3 SP305-L mount assembly 3.4 Solar panel angle 3.5 Extended mount orientation 3.6 Installation of CH201 regulator 3.7 Installation of Morningstar SunSaver regulators 4.

  • Page 3: Introduction

    Campbell Scientific. 2. Specifications The SP50-L, SP90-L, and SP305-L work with user-supplied deep cycle marine batteries, 12V sealed rechargeable batteries (BP12, BP24, or BP84), 12V rechargeable power supplies (PS84), and external voltage regulators (CH201, CH200, and MorningStar SunSaver regulators).
  • Page 4 300 µA to 2 mA 6 to 10 mA 35 mA Operating temperature: –40 to 60 °C –40 to 60 ºC –40 to 85 ºC –30 to 60 °C Useable solar current: 10 A 2.8 to 4.3 A 10 A 15 A SP50-L, SP90-L, and SP305-L Solar Panels...
  • Page 5 10 A must be used. NOTE: A second solar panel can be connected to the CH201 when additional power is required. One CH201 can handle two SP50-L or two SP90-L solar panels. FIGURE 2-1 (p. 3) shows how two solar panels are wired in parallel, leaving the second DC input terminal free for an alternate source of DC voltage.

  • Page 6: Installation

    1/2 in wrench (2) 7/16 in wrench Torpedo level Angle finder 3.2 SP50-L/SP90-L extended mount assembly NOTE: This procedure uses the SP50-L in the illustrations. However, the instructions given are also applicable to the SP90-L. SP50-L, SP90-L, and SP305-L Solar Panels...
  • Page 7 The correct holes will be just outside of the bracket. Set the bracket aside. FIGURE 3-1. Determining the correct mounting holes SP50-L, SP90-L, and SP305-L Solar Panels...
  • Page 8 (FIGURE 3-2 (p. 6)). Attach each arm with two bolts, washers, lock washers, and nuts. Do not fully tighten the nuts. Repeat for the second arm. FIGURE 3-2. Attaching mounting arms SP50-L, SP90-L, and SP305-L Solar Panels...
  • Page 9 (p. 6)). FIGURE 3-3. Attaching the upper mount bracket 5. Attach the bottom extended mount bracket to the extended mount struts as shown in FIGURE 3-4 (p. 7). FIGURE 3-4. Attaching the lower mount bracket SP50-L, SP90-L, and SP305-L Solar Panels...
  • Page 10 ‘Tripod’ to mount the bracket to the mast. Use a torpedo level to ensure the bracket is level. Fully tighten the nuts on both U- bolts. FIGURE 3-5. Attaching the upper mount bracket to the mast SP50-L, SP90-L, and SP305-L Solar Panels...
  • Page 11 Finger-tighten the nuts. Skip to Extended mount orientation (p. 20). FIGURE 3-6. Attaching the lower mount bracket to the tripod legs SP50-L, SP90-L, and SP305-L Solar Panels...

  • Page 12: Sp305-L Mount Assembly

    For most tripod installations, the tripod is oriented with one leg pointing directly away from the equator. For most tower installations, the tower is positioned with one side oriented parallel to the equator. Keep the solar panel covered during assembly to prevent voltage output during the assembly process. SP50-L, SP90-L, and SP305-L Solar Panels...
  • Page 13 Use a level to ensure the mount bracket is level and fully tighten the nuts. For installation on a tower, the two U-bolts are used to attach the upper mount bracket to the tower legs closest to the equator. FIGURE 3-8. Attaching the upper mount bracket SP50-L, SP90-L, and SP305-L Solar Panels...
  • Page 14 3. Place two support struts together, overlapping the large slot in each strut. Use two bolts, flat washers, lock washers, and nuts to attach the struts to each other. Do not fully tighten the nuts. Repeat for the remaining two support struts. FIGURE 3-10. Assembling the support struts SP50-L, SP90-L, and SP305-L Solar Panels...
  • Page 15 Do not fully tighten these nuts. The support struts may be moved to a different hole position when adjusting the mount angle in step 7. FIGURE 3-11. Attaching the support struts to the mount arms SP50-L, SP90-L, and SP305-L Solar Panels...
  • Page 16 5. Place the second mount bracket on the ground between the two strut assemblies. Attach each strut assembly to the mount bracket in the hole shown with a bolt, flat washer, lock washer, and nut. FIGURE 3-12. Attaching the lower mount bracket SP50-L, SP90-L, and SP305-L Solar Panels...
  • Page 17 45 degrees. FIGURE 3-13. Attaching the lower mount bracket to the tripod legs SP50-L, SP90-L, and SP305-L Solar Panels...
  • Page 18 (p. 19) for correct angles and mount adjustments. For tower assembly, the lower mount bracket position may be adjusted up or down if needed. Fully tighten all the nuts and bolts used in the mount assembly. FIGURE 3-14. Adjusting the mount angle SP50-L, SP90-L, and SP305-L Solar Panels...
  • Page 19 9. Determine which edge of the solar panel will be the top. Gently set the solar panel onto the mount. Let the solar panel rest on the tabs at the end of each mount arm. FIGURE 3-16. Installing the solar panel SP50-L, SP90-L, and SP305-L Solar Panels...
  • Page 20 Insert a bolt through each of the four holes, first passing through the solar panel, then the mount arm. Secure each bolt with a flat washer, lock washer, and nut. FIGURE 3-17. Attaching the solar panel SP50-L, SP90-L, and SP305-L Solar Panels...

  • Page 21: Solar Panel Angle

    Tilt angle 0° - 10° 10° 11° - 20° Latitude +5° 21° - 45° Latitude +10° 46° - 65° Latitude +15° > 65° 80° From “Design Aids for Small PV Power Systems,” Solorex Corp. SP50-L, SP90-L, and SP305-L Solar Panels...

  • Page 22: Extended Mount Orientation

    (p. 19) to determine the proper angle for the installation site. Always check the angle of the solar panel to verify the correct angle before tightening the hardware on the extended mount. FIGURE 3-19. Extended mounting bracket configurations for different mounting angles SP50-L, SP90-L, and SP305-L Solar Panels...

  • Page 23: Installation Of Ch201 Regulator

    (+) terminal on the battery. Attach the black wire to the negative (–) terminal on the battery. The LED on the regulator labeled CHG should not be lit. FIGURE 3-20. CH201 wire connections SP50-L, SP90-L, and SP305-L Solar Panels...
  • Page 24 CH201. Attach the black power wire from the data logger to one of the two G terminals next to the 12V terminals. FIGURE 3-21. CH201 wired to solar panel, CR1000X, and battery SP50-L, SP90-L, and SP305-L Solar Panels...

  • Page 25: Installation Of Morningstar Sunsaver Regulators

    1. Using the supplied mounting hardware, install the Morningstar SunSaver regulator to the mounting plate of an environmental enclosure (see FIGURE 3-22 (p. 23)). FIGURE 3-22. Morningstar’s SunSaver™ SS-10-12V Regulator mounted on an enclosure backplate SP50-L, SP90-L, and SP305-L Solar Panels...
  • Page 26 2. If using deep cycle marine battery along with the SP50-L, SP90-L, or SP305-L solar panels, install a battery terminal bus on each terminal of the user-supplied deep cycle battery as shown in FIGURE 3-23 (p. 24). FIGURE 3-23. Installing the battery terminal bus kit 3.

  • Page 27: Maintenance

    The load can be a data logger, other equipment, or a 75 ohm resistor capable of SP50-L, SP90-L, and SP305-L Solar Panels...

  • Page 28: Power Considerations

    (night) and several days of low charging (cloudy and stormy days). Campbell Scientific has developed an Excel power budget spreadsheet that estimates the solar panel size and battery required for a system based on the components in the system, scan interval, communications interval, and location.

  • Page 29: Voltage Regulator

    5.2 Voltage regulator The solar panel must be regulated either with a Campbell Scientific regulator or a third-party regulator. The regulator has two basic functions: Blocking any current flow from the battery to the solar panel Limiting the source current to the battery The solar panel must be connected to the voltage regulator, not direct to the storage battery.
  • Page 30 See Product Details on the Ordering Information pages at www.campbellsci.com. Other manufacturer's products, that are resold by Campbell Scientific, are warranted only to the limits extended by the original manufacturer.
  • Page 31 Campbell Scientific office serves your country. To obtain a Returned Materials Authorization or Repair Reference number, contact your CAMPBELL SCIENTIFIC regional office. Please write the issued number clearly on the outside of the shipping container and ship as directed.
  • Page 32 Do not recharge, disassemble, heat above 100 °C (212 °F), solder directly to the cell, incinerate, or expose contents to water. Dispose of spent batteries properly. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR...
  • Page 33 Campbell Scientific regional offices Australia France Thailand Location: Garbutt, QLD Australia Location: Vincennes, France Location: Bangkok, Thailand Phone: 61.7.4401.7700 Phone: 0033.0.1.56.45.15.20 Phone: 66.2.719.3399 Email: info@campbellsci.com.au Email: info@campbellsci.fr Email: info@campbellsci.asia Website: www.campbellsci.com.au Website: www.campbellsci.fr Website: www.campbellsci.asia Brazil Germany Location: São Paulo, SP Brazil...
