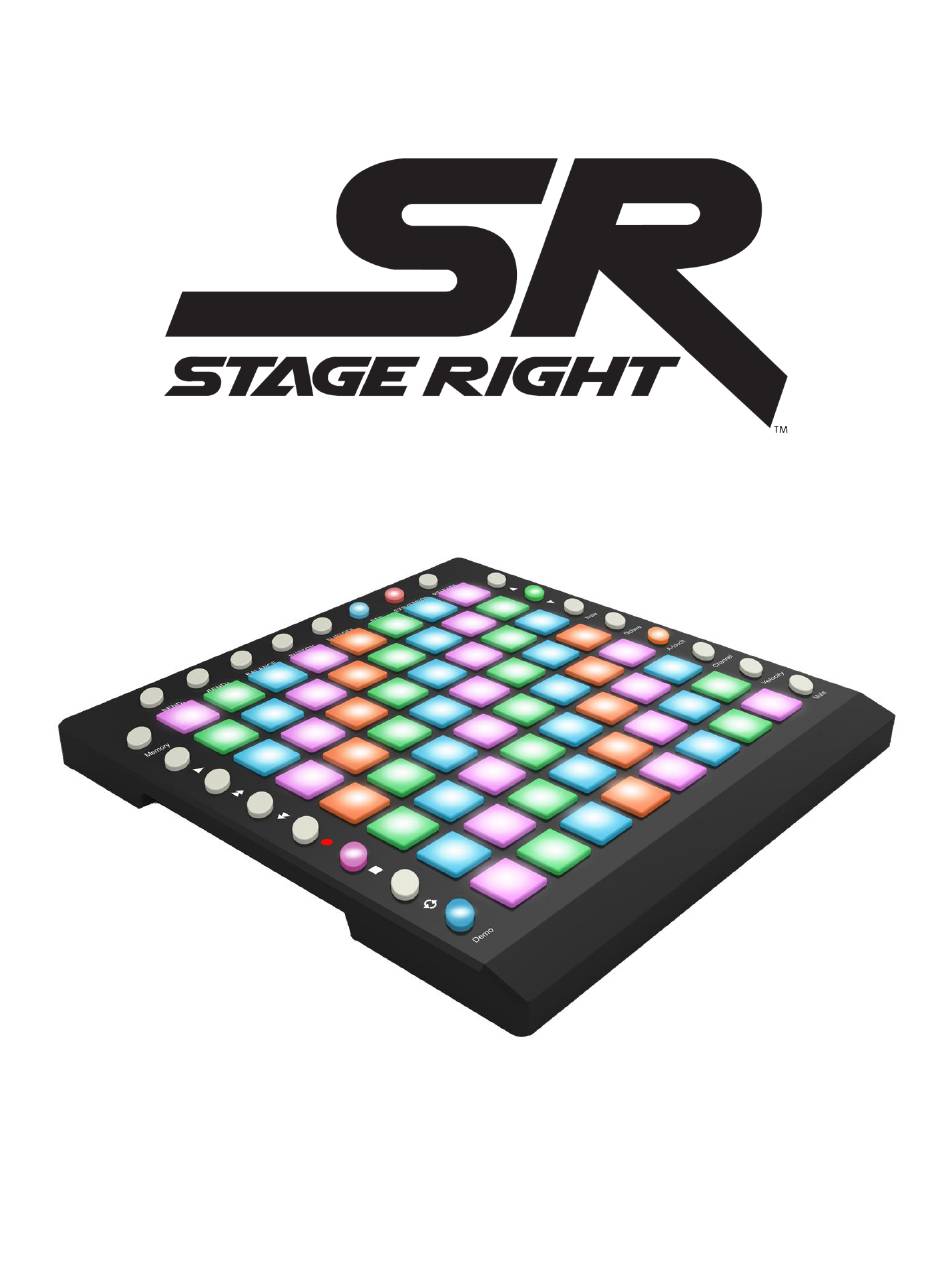

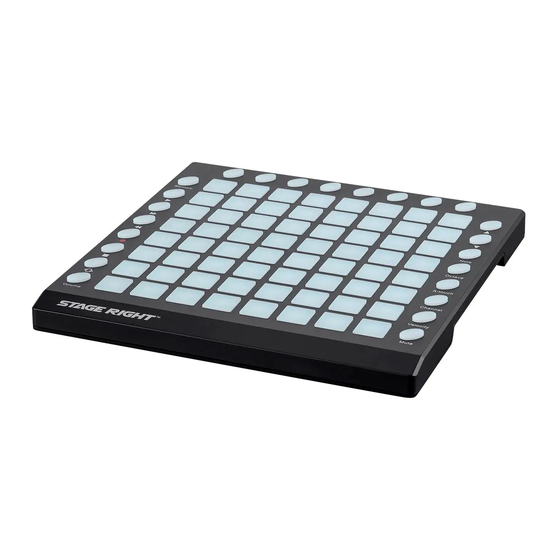

- Page 1 SRP64 Grid Controller P/N 625895 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ............................3 FEATURES ..........................................4 CUSTOMER SERVICE ....................................4 PACKAGE CONTENTS ....................................5 SYSTEM REQUIREMENTS ..................................5 Windows® ........................................5 Mac® OS X®........................................5 PRODUCT OVERVIEW ....................................6 Top Panel ......................................... 6 Rear Panel ........................................8 CONTROL SOFTWARE .................................... -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. • This device is intended for indoor use only. •... -
Page 4: Features
FEATURES • 64 velocity and pressure sensitive performance Pads with RGB customizable backlighting • Pads can be assigned to send Note, MIDI Control Change, and Program Change messages • 6 built-in memory slots for storing button assignments and settings • Powered by the USB connection to the computer •... -
Page 5: Package Contents
Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x SRP64 Grid Controller 1x USB Cable 1x USB Power Cable 1x MIDI to 3.5mm Audio Cable... -
Page 6: Product Overview
(DAW). 2. Memory Button: The SRP64 features 6 built-in memory slots for storing button assignments and settings. Press and hold the Memory button and press one of the 6... - Page 7 Channel Aftertouch Mode, press it a second time to enter Keyboard Aftertouch Mode, and finally press it a third time to disable Aftertouch Mode. The button illuminates red when in Channel Aftertouch Mode and the SRP64 will send Channel Aftertouch information when pressing the Pads. The button illuminates blue when in Keyboard Aftertouch Mode and the SRP64 will send Keyboard Aftertouch information when pressing the Pads.
-
Page 8: Rear Panel
14. MIDI Out: MIDI output connector. 15. MIDI In: MIDI input connector. 16. DC 5V: DC barrel connector for connecting the included USB Power Cable to a USB power source. 17. Power: Press the Power button to turn the SRP64 on or off. -
Page 9: Control Software
Download the Windows® or Mac® software package from the 625895 page on the monoprice.com website, connect the SRP64 to your computer, then run the software to control the settings. While the software is intuitive and easy to use, a few setup examples... -
Page 10: Assign A Pad To Start/Stop Mmc
Assign a Pad to Start/Stop MMC It can be easier to trigger a Pad to start or stop a song than to use the keyboard or mouse. The following example sets Pad 7 to send a Stop message and Pad 8 to send a Start message. -
Page 11: Assign Pads To Send Midi Notes
Assign Pads to Send MIDI Notes It is natural to lay down snare and kick drum notes when starting a song. The following example sets Pads 1 and 2 to trigger Bass Drum and Snare Drum notes (MIDI note numbers 36 and 38 respectively). -
Page 12: Assign A Pad To Toggle A Midi Cc# Between Two Values
Assign a Pad to Toggle a MIDI CC# Between Two Values One popular musical effect is to take an audio clip, filter it heavily for certain sections of the song, then switch it back to the full open sound later in the song. The following example sets Pad 6 to toggle two values for the Brightness filter (CC#74). -
Page 13: Save Settings To A Preset
Save Settings to a Preset Once you have configured the SRP64 to your preferences, you should save the settings to a memory slot for instant recall. In the following example, we will save the settings to memory slot 2. 1. Locate the Send to Keyboard button on the right side of the software interface. Use the Send to Mem pull down list box to set it to 2. - Page 14 The following table shows the RGB values for some common basic colors. COLOR White Black Green Blue Cyan Magenta Yellow Orange...
-
Page 15: Setup In Ableton® Live
• Set the Sync option On for the Output to cause the Pad LEDs to pulse and flash in time with your project tempo. • Turning Remote On for both the Input and Output allows the SRP64 to be mapped to parameters in Live and to see feedback of that mapping. - Page 16 The color of the "ring" changes depending on which Control Surface choice is selected in Live. • Pressing a Pad on the SRP64 triggers a clip (if one exists) in the corresponding slot in Live. However, pressing an empty clip slot on an unarmed track will stop clip playback on that track.
-
Page 17: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 18: Notice For Industry Canada
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™, Stage Right™, the Stage Right logo, and all Monoprice logos are trademarks of Monoprice Inc.
