SRP200 USB Pad Controller
P/N 625894
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRP200 and is the answer not in the manual?

Questions and answers

Related Manuals for Stage right SRP200

Summary of Contents for Stage right SRP200

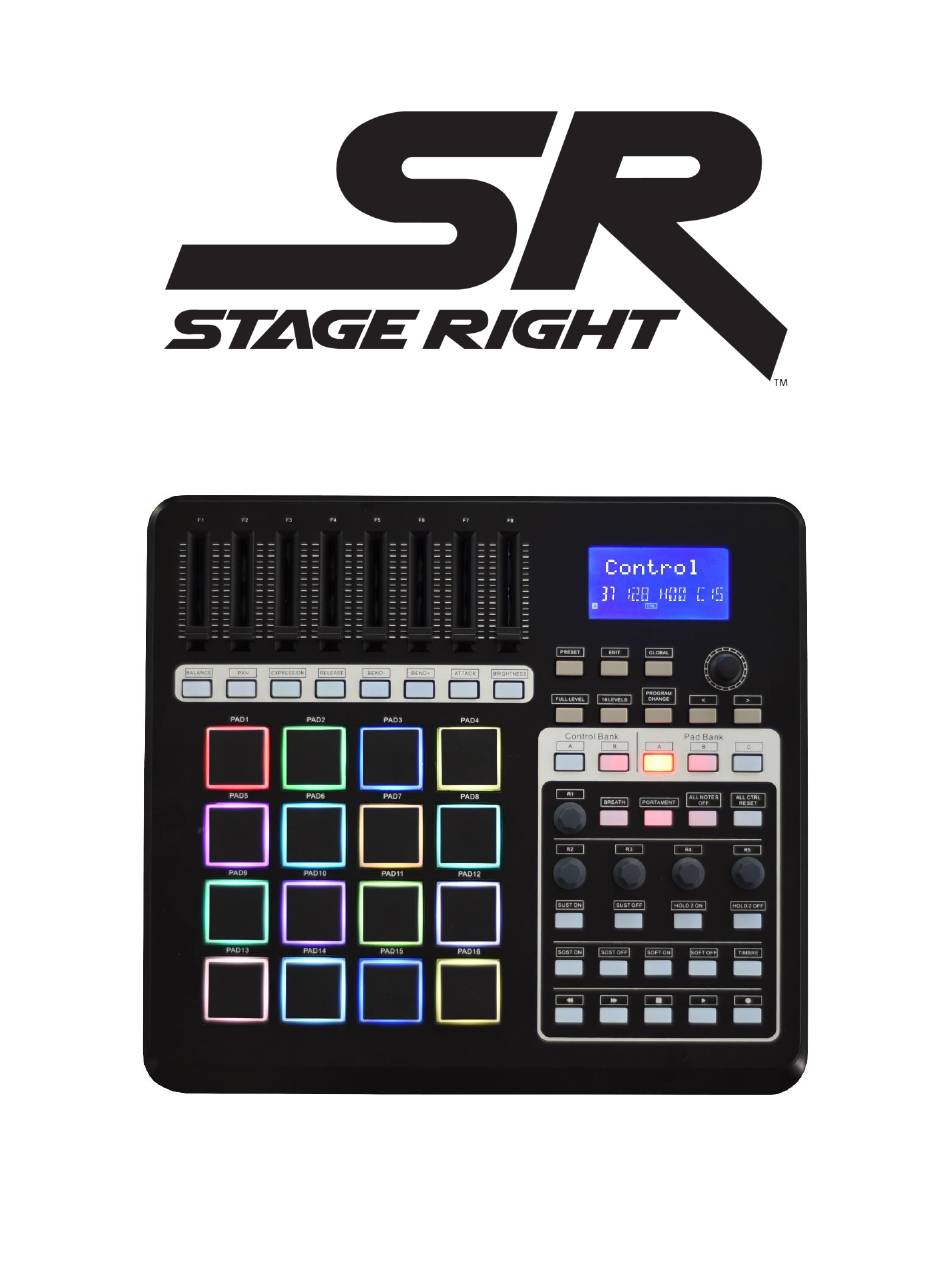

  • Page 1 SRP200 USB Pad Controller P/N 625894 User's Manual...

  • Page 2: Table Of Contents

    CONTENTS SAFETY WARNINGS AND GUIDELINES ............................3 CUSTOMER SERVICE ....................................3 FEATURES ..........................................4 PACKAGE CONTENTS ....................................4 PRODUCT OVERVIEW ....................................5 Top Panel ......................................... 5 Side Panel ........................................7 SOFTWARE USAGE NOTES ..................................8 PRESETS ..........................................8 EDIT ............................................. 9 GLOBAL ...........................................

  • Page 3: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. • This device is intended for indoor use only. •...

  • Page 4: Features

    Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x SRP200 USB Pad Controller 1x USB Cable 1x CD-ROM Disc...

  • Page 5: Product Overview

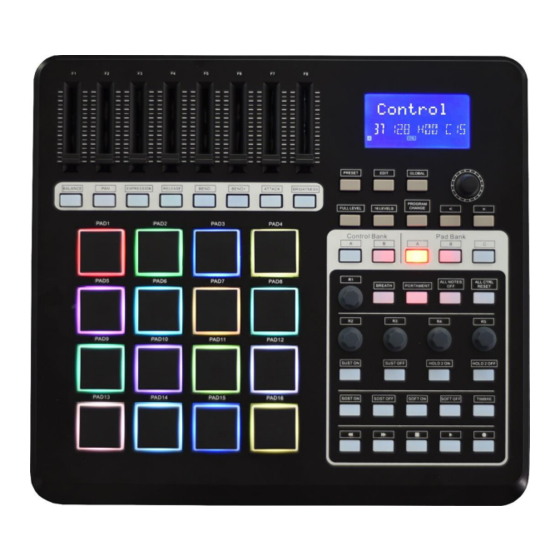

    PRODUCT OVERVIEW Top Panel 1. LCD DISPLAY: The display is used for navigating menus, displaying data, and making changes to the options and parameters. 2. VALUE DIAL: Rotate the knob to change the displayed values. Press the knob down for the ENTER function. 3.
  • Page 6 5. EDIT: Press the EDIT button to enter Edit Mode, which allows you to alter the behavior of the pads, dials, buttons, and sliders. 6. GLOBAL: Press the GLOBAL button to enter Global Mode, where MIDI reset commands and global system preferences are set. 7.

  • Page 7: Side Panel

    14. ASSIGNABLE BUTTONS: These twenty-six buttons can be assigned to send MIDI Control Change messages. 15. SLIDERS: These eight sliders can be configured to send continuous control data to a digital audio workstation or external MIDI device. Side Panel 1. MIDI IN: 5-pin MIDI input connector. 2.

  • Page 8: Software Usage Notes

    Ensure that the SRP200 and any connected external MIDI devices are powered on and that the SRP200 is connected to the PC with a USB cable BEFORE starting your software. If you start your software before plugging in the controller, the software may not recognize it.

  • Page 9: Edit

    EDIT Edit Mode allows you to set the parameters for the sliders, dials, and pads. Perform the following steps to edit a control. 1. Press the EDIT button to activate Edit Mode. 2. Move the slider, dial, pad, or button you wish to edit. The LCD Display will show current properties of the selected control.

  • Page 10: Pad Velocity Curve

    Pad Velocity Curve There are four velocity curves to choose from. Rotate the VALUE DIAL to select the desired curve. The range of values is 0 ~ 3. When the desired curve number is displayed, press down on the VALUE DIAL to save the change. The four curves are shown below. RGB Backlighting 1.

  • Page 11: Mute

    The following table shows the RGB values for some common basic colors. COLOR White Black Green Blue Cyan Magenta Yellow Orange Mute When the Mute page is displayed, press down on the VALUE DIAL to toggle Mute on or off. When Mute is on, the controller cannot send messages of any kind. Reset When the Reset page is displayed, press down on the VALUE DIAL to reset all settings to their factory default values.

  • Page 12: Pad Note Output Type

    Pad Note Output Type The Pad Note Output Type page will display either Note_TP1 or Note_TP2. When Note_TP1 mode is selected, the pad will send the Note On message when the pad is hit, then will immediately send the Note Off message. When Note_TP2 mode is selected, the pad will send the Note On message when hit, then will send the Note Off message when the pad is released.

  • Page 13: Notice For Industry Canada

    This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™, Stage Right™, the Stage Right logo, and all Monoprice logos are trademarks of Monoprice Inc.
